<p>The quadruplex modular stacking configuration consists of two vacuum pumps mounted on top of one another on both sides of the receiver tank. This modular or field separable design allows for ease of shipment and handling on site.</p>

amico-as-premium-3.5-control-panel-specs.pdf

amico-as-premium-5.7-control-panel-specs.pdf

amico-as-premium-7.5-control-panel-specs.pdf

amico-acp-medical-gas-pipeline-and-source-system-specs.pdf

amico-as-nfpa-dry-rotary-vane-vac-dup-mod-bck-drawing.pdf

amico-as-nfpa-dry-rotary-vane-vac-dup-mod-bch-drawing.pdf

amico-as-nfpa-dry-rotary-vane-vac-quad-bch-drawing.pdf

amico-as-dry-rotary-vane-vacuum-systems-manual.pdf

amico-as-dry-rotary-vane-vacuum-systems-specs.pdf

as_dg_nfpa_vacuum_systems.pdf

amico-as-vacuum-technology-comparison-chart.pdf

amico-as-medical-gas-design-guide.pdf

amico-as-air-and-vacuum-systems-brochure.pdf

amico-as-equipment-sizing-guide.xlsx

<ul>
<li>Vacuum pump operates completely dry with air cooled design</li>
<li>Pump is equipped with self-lubricating carbon or graphite vanes with no water requirements</li>
<li>UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display</li>
<li>Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters</li>
<li>Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing</li>
<li>System is modular or field separable, allowing for ease of shipment and handling on-site</li>
</ul>

<ul>
<li>An inlet air filter (optional)</li>
<li>Flexible connectors</li>
<li>Isolation valve</li>
<li>Check valve</li>
<li>High discharge temperature sensor (with visual indicator)</li>
</ul>

<ul>
<li>UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display</li>
<li>Manual reset for all alarms</li>
<li>All control and alarm functions shall remain energized while any pump in the system remains electrically online</li>
<li>Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters</li>
<li>Lag pump will start automatically should the lead pump fail to operate</li>
</ul>

<ul>

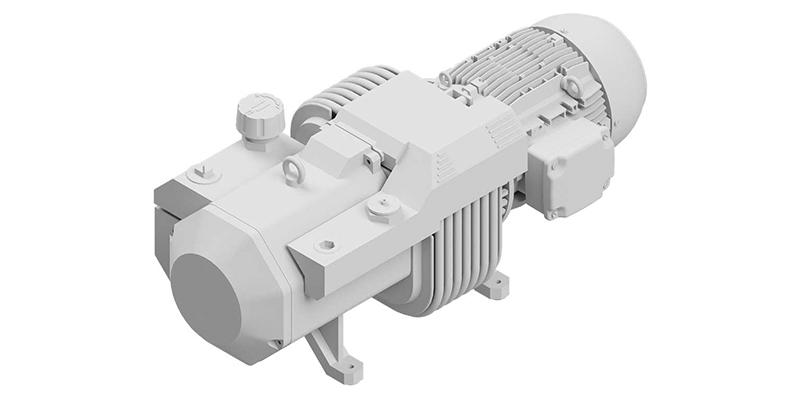

<li>Oil-less Rotary Vane type and operates completely dry with air cooled design</li>
<li>Equipped with self-lubricating carbon or graphite vanes with no water requirements</li>
<li>Permanently lubricated and sealed</li>
<li>Equipped with a built-in anti-suck back valve mounted at the pump inlet</li>
<li>Direct driven through a shaft coupling by a NEMA C-face, TEFC electric motor</li>
<li>Means of removal of the vacuum pump for service or replacement without interruption to the system</li>
</ul>

<ul>
<li>ASME certified with provisions for isolating the receiver without interruption of the vacuum service</li>
<li>Rated for full vacuum service with a minimum 200 psig design pressure</li>
<li>Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing</li>
</ul>

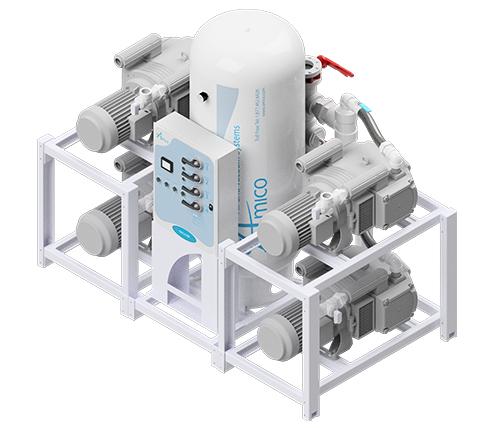

Main image for Amico's NFPA Quadruplex RVD Modular Stack Mount

NFPA Quadruplex RVD Modular Stack Mount

Features
