<p>The triplex modular stacking configuration allows two vacuum pumps to be stacked on one side and one vacuum pump situated on the other side of the receiver tank. For certain sizes, stacking three vacuums vertically on one side is also possible. This modular or field separable design allows for ease of shipment and handling on site.</p>

amico-as-contact-less-claw-vacuum-systems-specs.pdf

amico-as-eco-plus-control-panel-specs.pdf

amico-as-premium-3.5-control-panel-specs.pdf

amico-as-premium-5.7-control-panel-specs.pdf

amico-as-premium-7.5-control-panel-specs.pdf

amico-acp-medical-gas-pipeline-and-source-system-specs.pdf

amico-as-nfpa-contactless-vac-tri-drawing.pdf

amico-as-contact-less-claw-vacuum-systems-manual.pdf

as_dg_nfpa_vacuum_systems.pdf

amico-as-vacuum-technology-comparison-chart.pdf

amico-as-medical-gas-design-guide.pdf

amico-as-equipment-sizing-guide.xlsx

amico-as-air-and-vacuum-systems-brochure.pdf

<ul>
<li>Pumping chamber operates oil-free and vacuum pump is completely air cooled with no water requirements</li>
<li>UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display</li>
<li>Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters</li>
<li>Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing</li>
<li>System is modular or field separable, allowing for ease of shipment and handling on-site</li>
</ul>

<ul>
<li>An inlet air filter (optional)</li>
<li>Check valve</li>
<li>Flexible connectors</li>
<li>Isolation valve</li>
<li>High discharge temperature sensor (with visual indicator)</li>
<li>Drain valve</li>
<li>Numerical temperature display</li>
<li>Site glass</li>
</ul>

<ul>
<li>UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display</li>
<li>Manual reset for all alarms</li>
<li>All control and alarm functions shall remain energized while any pump in the system remains electrically online</li>
<li>Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters</li>
<li>Lag pump will start automatically should the lead pump fail to operate</li>
</ul>

<ul>
<li>Continuous duty, high efficiency, oil-less and friction-less compression Contact-Less Claw type</li>
<li>Pumping chamber is oil free</li>
<li>Pump is air cooled with no water requirements</li>
<li>Claws are synchronized by heavy-duty precision timing gears</li>
<li>Built-in anti-suck back valve mounted at the pump inlet</li>
<li>Means of removal of the vacuum pump for service or replacement without interruption to the service</li>
</ul>

<ul>
<li>ASME certified with provisions for isolating the receiver without interruption of the vacuum service</li>
<li>Rated for full vacuum service with a minimum 200 psig design pressure</li>
<li>Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing</li>
</ul>

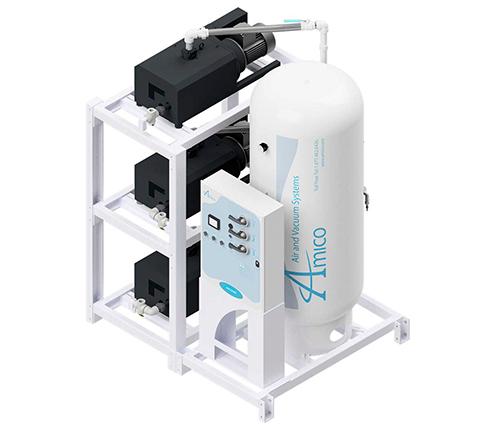

Main image for Amico's NFPA Triplex CCD Modular Stack Mount

NFPA Triplex CCD Modular Stack Mount
