2' x 2'
Exam
Behavioral Series
Amico's behavioral health luminaires are designed to mitigate risks to patient health with an anti-ligature design, Torx screw fasteners, and tamper-proof lens.
Description

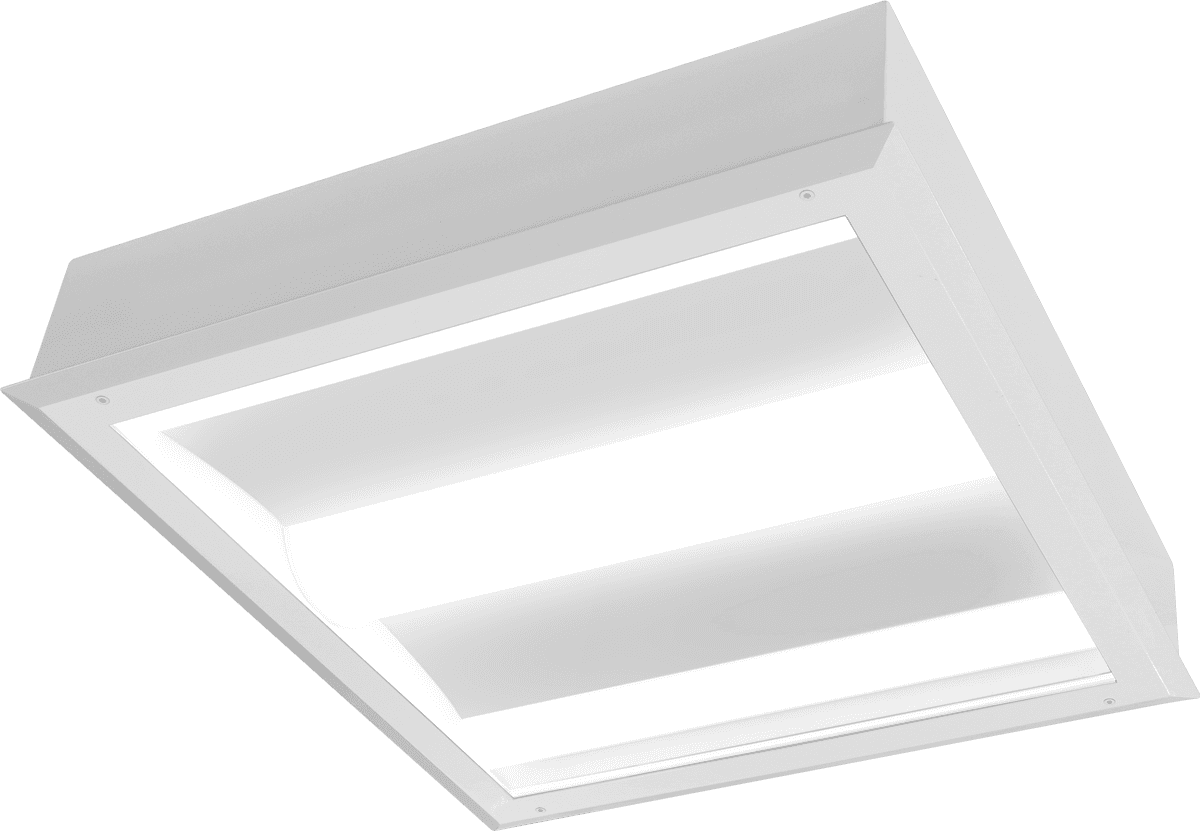

The sleek and modern design of the Solar Eclipse Behavioral Exam merges architectural aesthetics with exceptional lighting performance to improve patient comfort while maximizing clinical efficiencies. This architectural patient room fixture offers high-quality exam lighting with proper lumen output and glare-free lenses to support clinicians with reliable and consistent performance. An anti-ligature design ensures patient safety, while Torx screw fasteners and a tamper-proof polycarbonate lens provide additional security to help mitigate risks to patient health.
Features
Specifications
Voltage
- 120 - 277 Volts
Standard Wattage
- Exam: 41 W
Standard Lumen Output
- Exam: 4,140 LMS
Dimming Options
- 0 - 10 Volts
- Standard 5% dimming
- Contact factory for 1% dimming
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI
Standard Color Temperature
- 3000 K
- 3500 K
- 4000 K
- Contact factory for additional options
Life of LEDs
- L70 > 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Certified to UL standards by ETL
- Conforms to CSA standards as per ETL testing
Housing
- 20ga CRS
- Single-piece
- Seam-welded construction
Finish
- White urethane powder coat finish
- 5 step treatment
- Hospital grade material and finish
Lens
- Impact-resistant
- Clear polycarbonate lens
- Available in different thickness
Light Source
- Samsung LED mounted to aluminum core linear boards
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Ingress Barrier
- IP65 rated fully enclosed 16Ga CRS cover
- Contentious lens retention system
- Tested and proven anti-ligature construction
