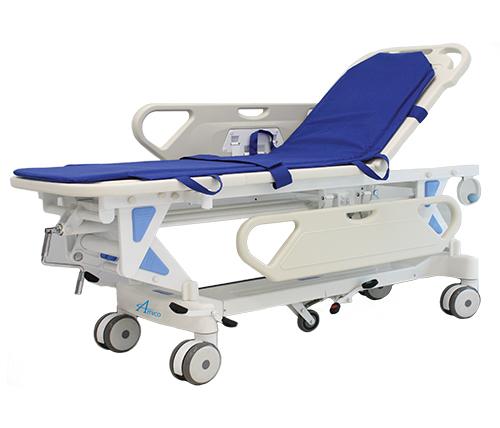

Main product image for Manual Patient Transfer Stretcher

Manual Patient Transfer Stretcher

Care Series

The Amico Emergency Care Stretcher Collection provides caregivers the control they need in the emergency environment. The
stretcher frame is made of high-quality aluminum and the cart surface and side rails are aesthetically shaped in plastic. The height adjustment of the stretcher is controlled through the use of a manual lever located at the foot of the stretcher. The backrest angle can be adjusted by depressing a handle to activate the gas-powered spring.

Technical Specifications

Model Number:

  • Model Number: S-M-100

Overall Dimensions:

  • Overall Length: 83" (211 cm)
  • Overall Width: 28" (71 cm)
  • Patient Surface: 28" x 75" (71 cm - 211 cm)
  • Height Range (to the surface of the litter)
    • High: 34" (86 cm)
    • Low: 22" (56 cm)

Litter Positioning:

  • Trendelenburg/Reverse Trendelenburg: n/a
  • Maximum Fowler Section Inclination: 75° + 5°
  • Maximum Knee Section Inclination: n/a

Weight Capacity & Caster Diameter:

  • Weight Capacity: 550 lbs (250 kg)
  • Caster Diameter: 8" (20 cm)

Optional Features & Accessories

  • Overbed tables
  • Removable IV pole

Key Features

  • Centrally controlled brake system
  • Gas spring supported back rest
  • Adjustable back rest angle
  • Retractable fifth wheel steering system
  • Integrated oxygen bottle holder
  • 550 lbs (250 kg) weight capacity

Applications

  • Emergency Room
  • Recovery
  • Pre-Op
  • Post-Op
