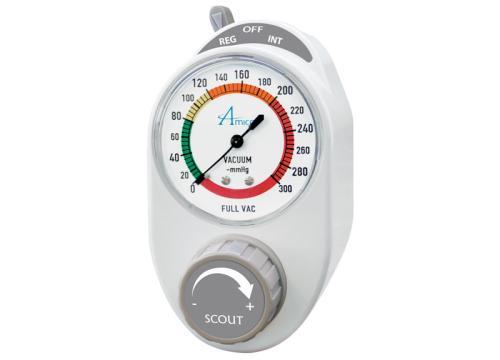

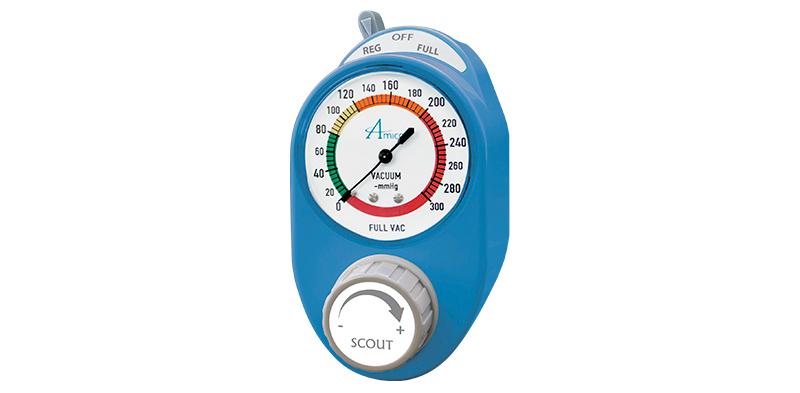

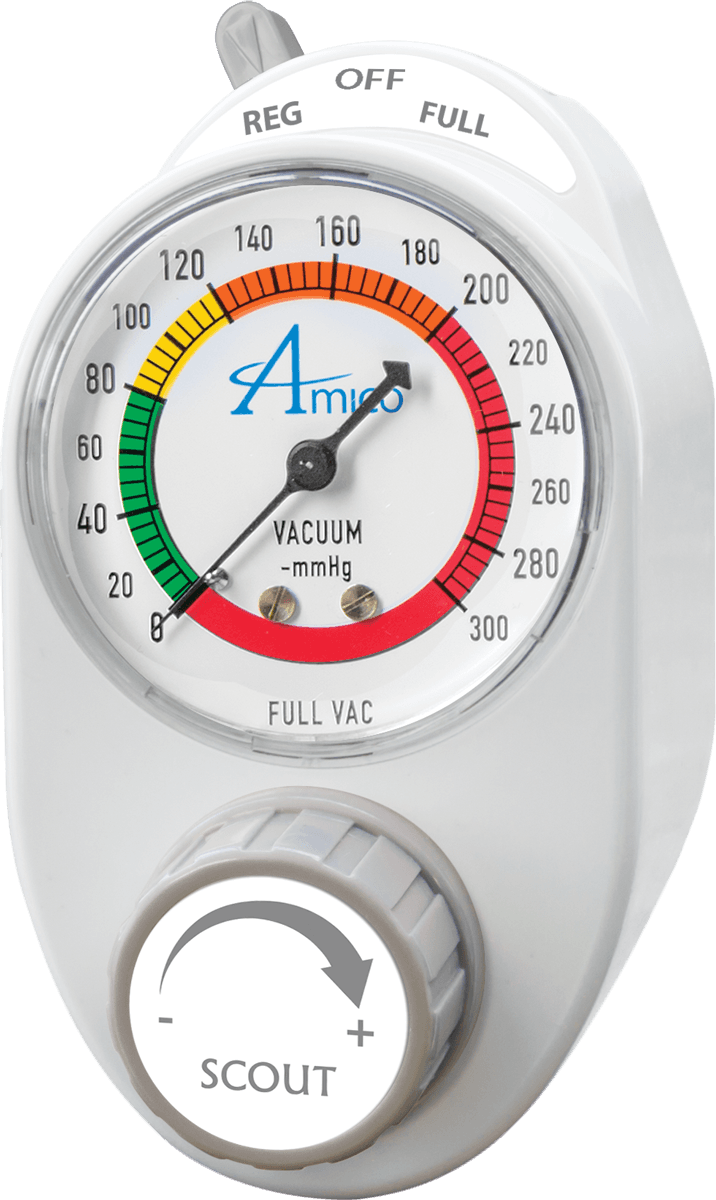

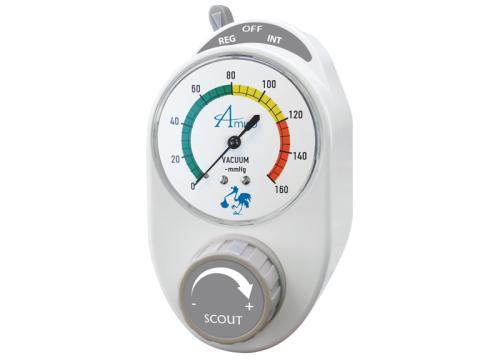

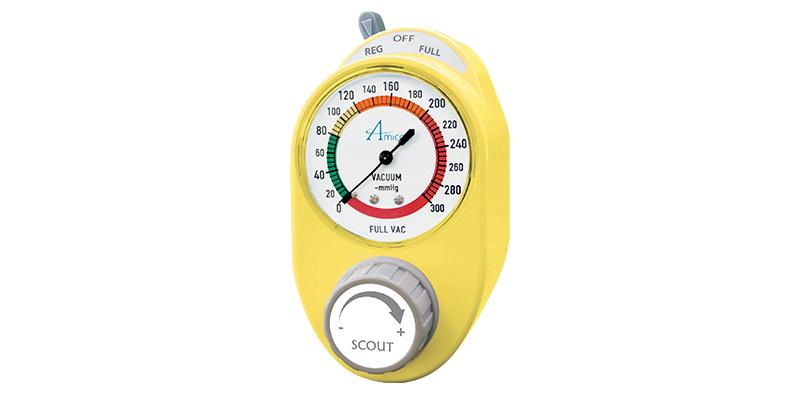

Scout Vacuum Regulator
Amico Vacuum Regulators are the most technologically advanced in the healthcare industry. Our modularity allows for easy upgrade from Analog to Digital and from Continuous to Continuous Intermittent models. Our digital regulators are the first of their kind in the marketplace. They improve patient care by providing greater accuracy and an easy to read gauge compared to conventional Analog Regulators.
Request Information
Scout Vacuum Regulator
Features
Specifications
Performance
- Intermittent Flowrate: Adult: 8 LPM, Pediatric: 8 LPM, Neonatal: 8 LPM
- Continuous Flowrate: Adult: 65 LPM, Pediatric: 40 LPM, Neonatal: 40 LPM
- 16 seconds on/ 8 seconds off
- Timing can be adjusted on the back of the unit with access to ON and OFF needle valves, starts in the OFF position

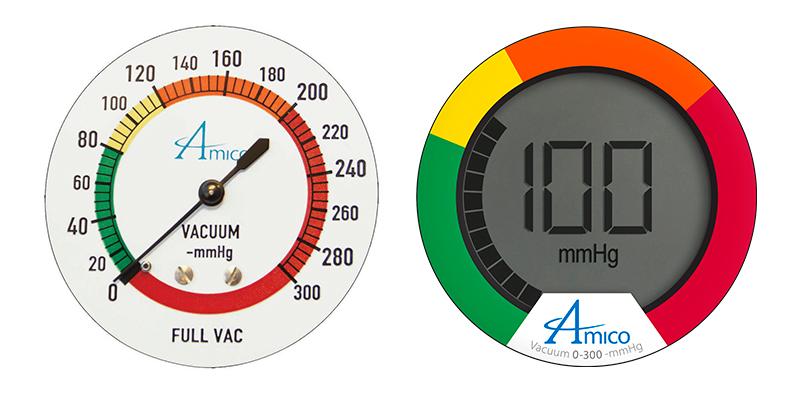

Gauge Accuracy
- Analog: ± 3% Full-scale
- Digital: ± 1% Full-scale
Dimensions
- Height: 5.94" (15.09 cm)
- Width: 2.93" (7.44 cm)
- Depth: 4.04" (10.26 cm)
Weight
- Continuous: 0.65 lbs (0.29 kg)
- Intermittent: 0.8 lbs (0.36 kg)
Battery
- Lithium: 2, 2/3 AA batteries, 3.6 V, 1.6 Ah, lithium
Vacuum Range

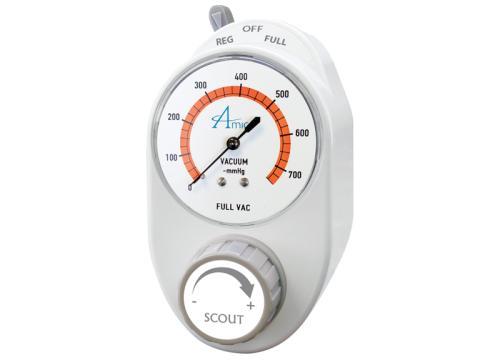

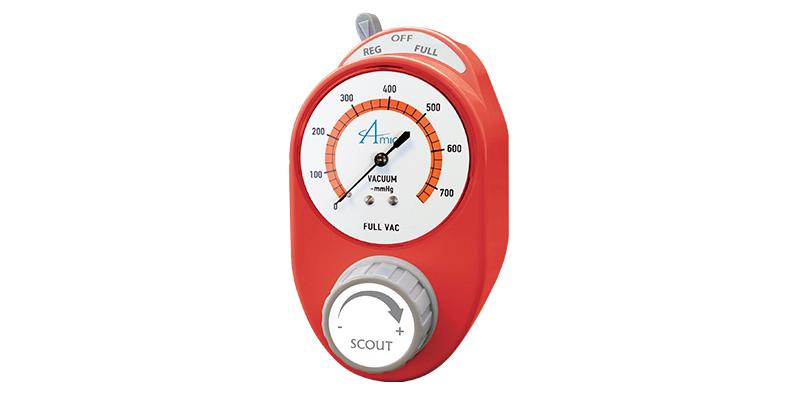

- Continuous High/Surgical: 0 - 750 mmHg (94 KPA)

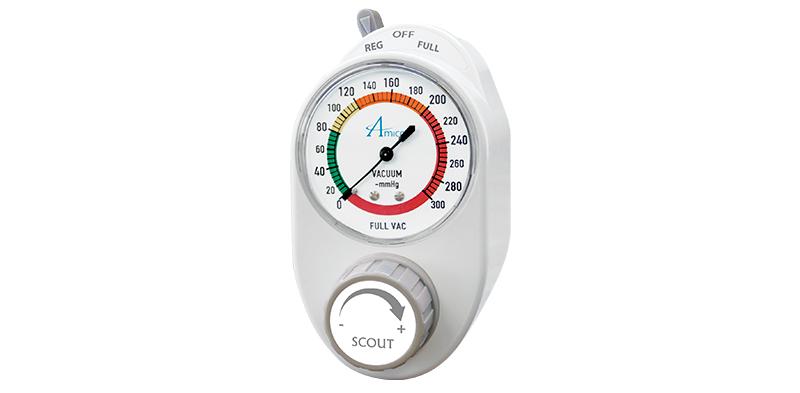

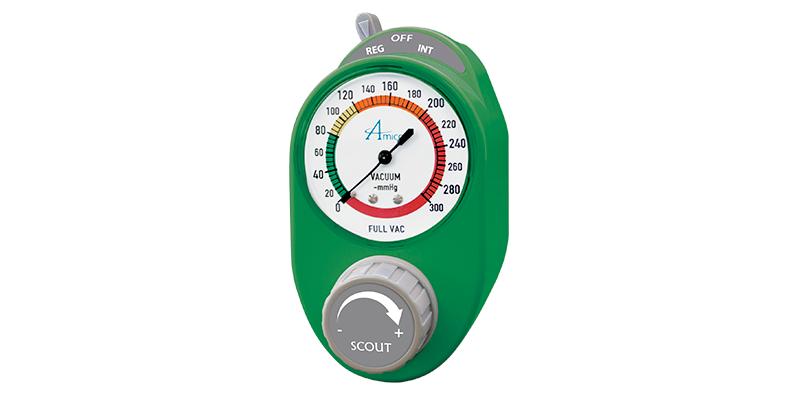

- Continuous and Continuous/Intermittent: 0 - 300 mmHg (40 KPA)

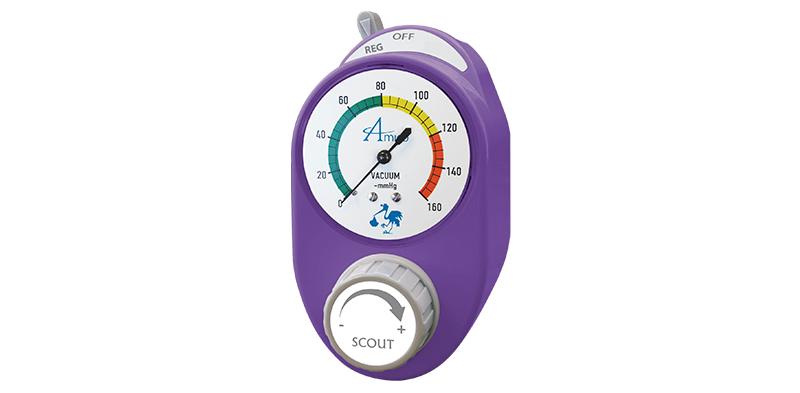

- Pediatric and Pediatric/Intermittent: 0 - 160 mmHg (20 KPA)

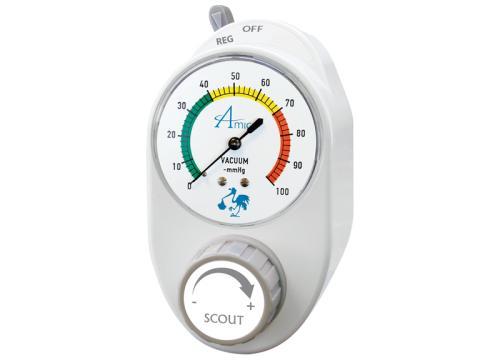

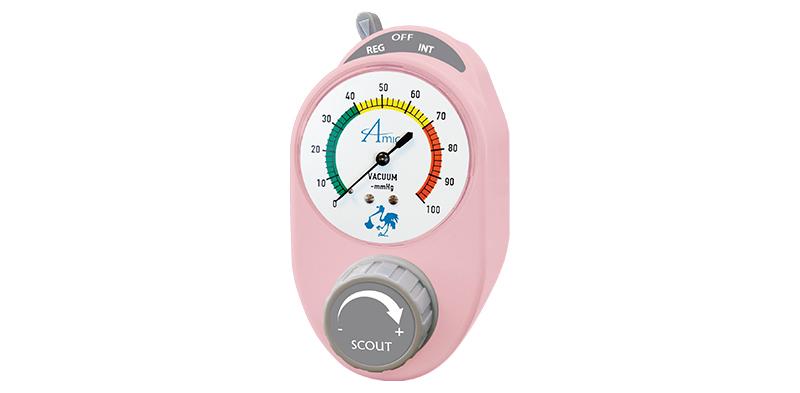

- NeoNatal and NeoNatal/Intermittent: 0 - 100 mmHg (13 KPA)
