Ambulance (EMS) Medical Gas Outlets

Ambulance (EMS) Hose Barb Medical Gas Outlets and Ambulance (EMS) DISS and NPT Medical Gas Outlets.

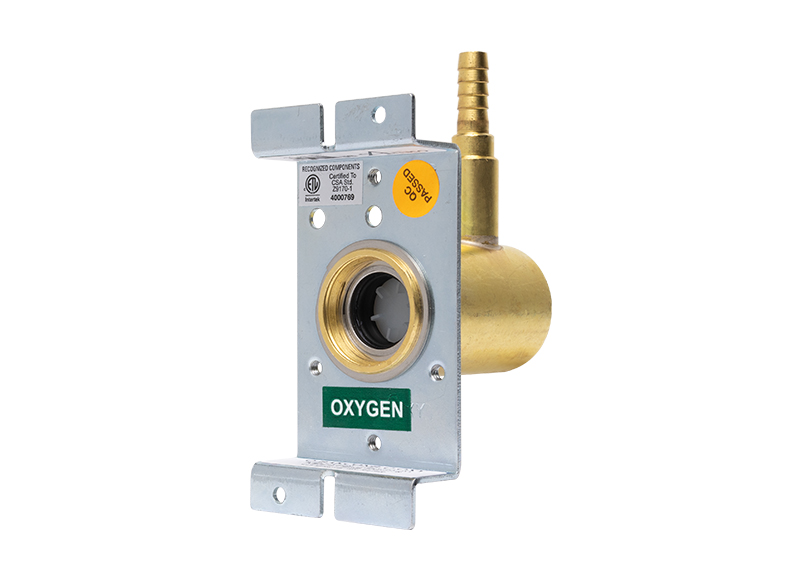

  • Hose Barb Outlets: The gas inlet tube of the outlet body shall be a hose barb fitting to permit connection of either 1/4" or 5/16" or 3/8" O.D. flexible hose with a crimp type ferrule.

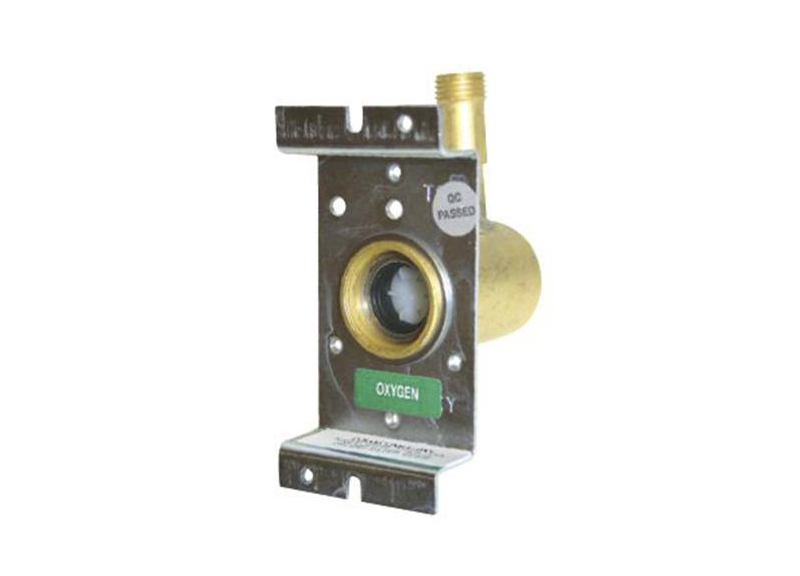

  • DISS Outlets: Gas specific DISS connection brazed to the back body of the gas outlet which will allow a gas specific hose to be attached to the connection.
  • The Medical Gas Ambulance outlet shall be an Amico Alert-1 series.
  • Medical Gas Ambulance outlets shall be gas specific and permanently labelled for the services indicated.

  • All outlets meet applicable requirements of "Federal Specification for Ambulances" KKK-A-1822C. Amico ambulance outlets comply with NFPA 99.
  • For positive pressure gas services, the outlet shall be equipped with a primary and secondary check valve and the secondary check valve shall be rated at a maximum of 200 psi (1,379 kpa) in the event the latch valve assembly is removed for maintenance.
  • Outlet bodies shall be gas specific by indexing each gas service to a gas specific dual pin indexing arrangement on the respective identification module.

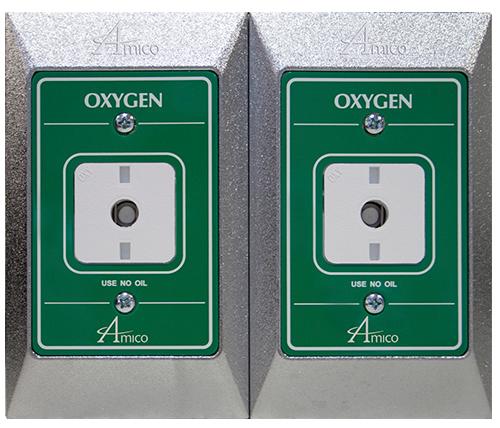

  • A large color coded front plate shall be used for ease of gas identification and aesthetic appeal.
  • The latch-valve assembly shall be Ohmeda Diamond Quick Disconnect, Chemetron Quick Connect, Puritan-Bennett Quick Disconnect, DISS compatible or Oxequip/Medstar compatible and accept only corresponding type gas specific adapters.
  • All outlets shall be cleaned and degreased for medical gas service, factory assembled and tested.
  • Amico products comply with NFPA 99.

General Features

  • Compensates for installation depth variations
  • 360 degree swivel inlet connection
  • Gas specific indexing
  • 100% tested for flow, leaks and connector retention
  • Gas specific rough-in accepts either: Puritan-Bennett, Ohmeda, Chemetron, DISS, Oxequip/Medstar
