<p>The triplex modular stacking configuration consists of two vacuum pumps stacked on one side and one vacuum pump situated on the other side of the receiver tank. This modular or field separable design allows for ease of shipment and handling on site.</p>

amico-as-eco-plus-control-panel-specs.pdf

amico-as-premium-3.5-control-panel-specs.pdf

amico-as-premium-5.7-control-panel-specs.pdf

amico-as-premium-7.5-control-panel-specs.pdf

amico-acp-medical-gas-pipeline-and-source-system-specs.pdf

amico-as-nfpa-lubricated-rotary-vane-vac-tri-drawing.pdf

amico-as-lubricated-rotary-vane-vacuum-systems-manual.pdf

amico-as-lubricated-rotary-vane-vacuum-systems-specs.pdf

as_dg_nfpa_vacuum_systems.pdf

amico-as-vacuum-technology-comparison-chart.pdf

amico-as-medical-gas-design-guide.pdf

amico-as-air-and-vacuum-systems-brochure.pdf

amico-as-equipment-sizing-guide.xlsx

<ul>
<li>Oil-Sealed Rotary Vane vacuum pump with air cooled design</li>
<li>UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display</li>
<li>Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters</li>
<li>Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing</li>
<li>System is modular or field separable, allowing for ease of shipment and handling on-site</li>
</ul>

<ul>
<li>Non-return valve</li>
<li>Back pressure gauge</li>
<li>High discharge temperature sensor (with visual indicator)</li>
<li>Oil drain valve</li>
<li>Oil sight glass</li>
<li>Flexible connector</li>
<li>Isolation valve</li>
<li>Check valve</li>
</ul>

<ul>
<li>UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display</li>
<li>Manual reset for all alarms</li>
<li>All control and alarm functions shall remain energized while any pump in the system remains electrically online</li>
<li>Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters</li>
<li>Lag pump will start automatically should the lead pump fail to operate</li>
</ul>

<ul>

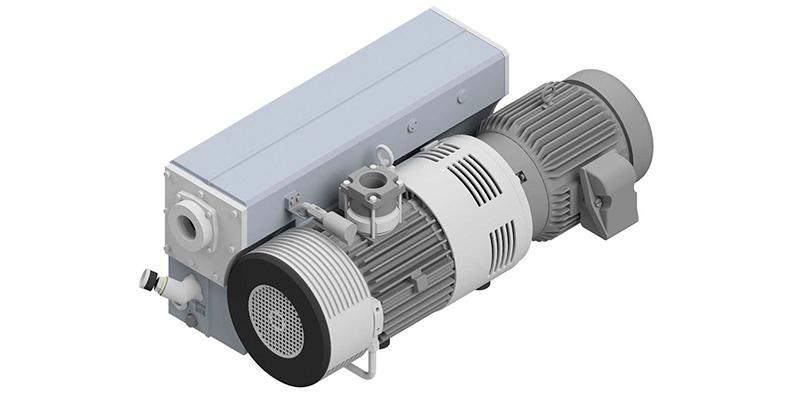

<li>Oil-Sealed Rotary Vane type with air cooled design</li>
<li>Dynamically balanced multi-vane design</li>
<li>Bearings are permanently lubricated and sealed</li>
<li>Pump shall be direct driven</li>
<li>Equipped with a built-in anti-suck back valve mounted at the pump inlet</li>
<li>Means of removal of the vacuum pump for service or replacement without interruption to the system</li>
</ul>

<ul>
<li>ASME certified with provisions for isolating the receiver without interruption of the vacuum service</li>
<li>Rated for full vacuum service with a minimum 200 psig design pressure</li>
<li>Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing</li>
</ul>

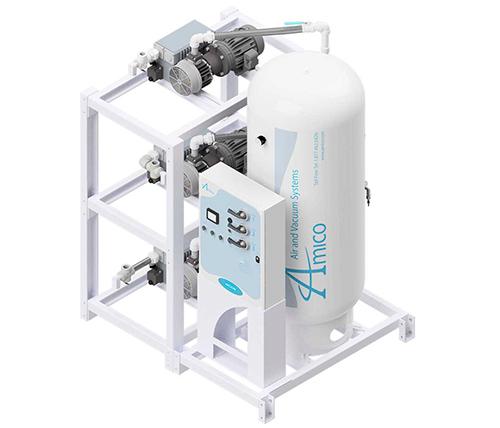

Main image for Amico's NFPA Triplex RVL Modular Stack Mount

NFPA Triplex RVL Modular Stack Mount
