NFPA Duplex RVL Modular Stack Mount

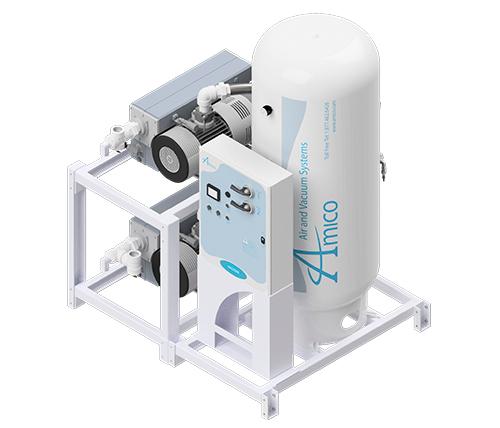

The duplex modular stacking configuration minimizes installation cost and maximizes the availability of floor space. The duplex modular stack mount configuration consists of two vacuums stacked on top of one another. This modular or field separable design allows for ease of shipment and handling on site.

Features

General Features

Oil-Sealed Rotary Vane vacuum pump with air cooled design
UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing
System is modular or field separable, allowing for ease of shipment and handling on-site

Control Panel

UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Manual reset for all alarms
All control and alarm functions shall remain energized while any pump in the system remains electrically online
Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
Lag pump will start automatically should the lead pump fail to operate

General Features

Oil-Sealed Rotary Vane vacuum pump with air cooled design
UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing
System is modular or field separable, allowing for ease of shipment and handling on-site

Control Panel

UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Manual reset for all alarms
All control and alarm functions shall remain energized while any pump in the system remains electrically online
Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
Lag pump will start automatically should the lead pump fail to operate
