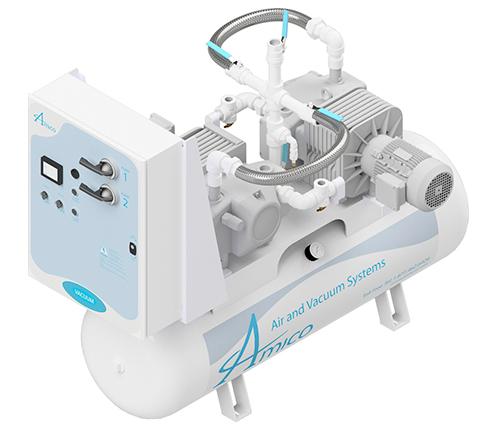

NFPA Duplex RVD Horizontal Tank Mount

The duplex horizontal tank mount dry rotary vane pumps provide footprint reduction and enhance the overall serviceability by means of compact design. Relative to the space saver configuration, the horizontal tank mount is capable of accommodating bigger pumps and accessories. Mounted horizontally on top of the receiver tank, this configuration is available for pumps ranging between 1.2 – 7.5 HP, offering you maximum space efficiency.

Features

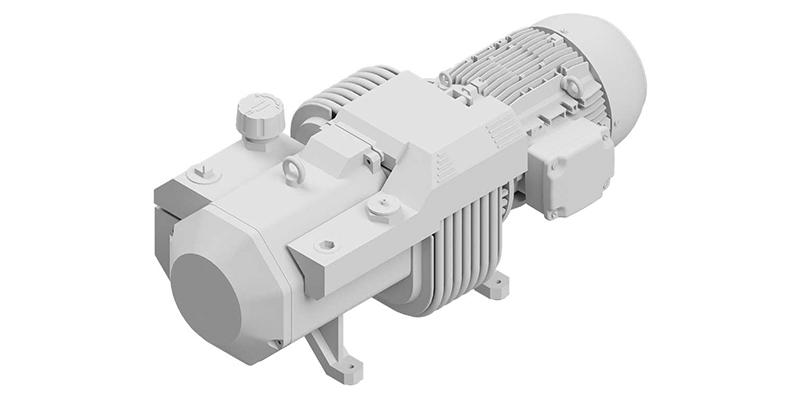

Vacuum Pump

Oil-less Rotary Vane type and operates completely dry with air cooled design
Equipped with self-lubricating carbon or graphite vanes with no water requirements
Permanently lubricated and sealed
Equipped with a built-in anti-suck back valve mounted at the pump inlet
Direct driven through a shaft coupling by a NEMA C-face, TEFC electric motor
Means of removal of the vacuum pump for service or replacement without interruption to the system

General Features

Vacuum pump operates completely dry with air cooled design
Pump is equipped with self-lubricating carbon or graphite vanes with no water requirements
UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing

Vacuum System Accessories

An inlet air filter (optional)
Flexible connectors
Isolation valve
Check valve
High discharge temperature sensor (with visual indicator)

Control Panel

UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Manual reset for all alarms
All control and alarm functions shall remain energized while any pump in the system remains electrically online
Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
Lag pump will start automatically should the lead pump fail to operate

Vacuum Pump

Oil-less Rotary Vane type and operates completely dry with air cooled design
Equipped with self-lubricating carbon or graphite vanes with no water requirements
Permanently lubricated and sealed
Equipped with a built-in anti-suck back valve mounted at the pump inlet
Direct driven through a shaft coupling by a NEMA C-face, TEFC electric motor
Means of removal of the vacuum pump for service or replacement without interruption to the system

General Features

Vacuum pump operates completely dry with air cooled design
Pump is equipped with self-lubricating carbon or graphite vanes with no water requirements
UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing

Control Panel

UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Manual reset for all alarms
All control and alarm functions shall remain energized while any pump in the system remains electrically online
Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
Lag pump will start automatically should the lead pump fail to operate

Vacuum Pump

Oil-less Rotary Vane type and operates completely dry with air cooled design
Equipped with self-lubricating carbon or graphite vanes with no water requirements
Permanently lubricated and sealed
Equipped with a built-in anti-suck back valve mounted at the pump inlet
Direct driven through a shaft coupling by a NEMA C-face, TEFC electric motor
Means of removal of the vacuum pump for service or replacement without interruption to the system

Downloads

Specs

eco plus control panel specs

234.93 KB

premium 3.5 control panel specs

221.65 KB

premium 5.7 control panel specs

221.50 KB

premium 7.5 control panel specs

221.48 KB

medical gas pipeline and source system specs

734.55 KB

dry rotary vane vacuum systems specs

484.56 KB

Drawing

NFPA dry rotary vane vac dup horiz drawing

1.09 MB

Manual

dry rotary vane vacuum systems manual

1.45 MB

Instructions

as_dg_nfpa_vacuum_systems.pdf

9.87 MB

medical gas design guide

22.58 MB

Comparison Chart

vacuum technology comparison chart

92.78 KB

Brochure

air and vacuum systems brochure

11.77 MB

Sizing Guide

equipment sizing guide

80.03 KB
