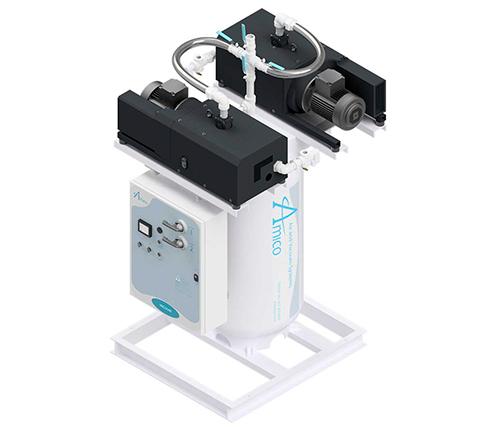

Available for vacuum pumps between 2 to 5 HP, the vertical tank mount configuration minimizes installation costs and maximizes the availability of floor space. The duplex vertical tank mount configuration consists of two pumps mounted on top of the receiver tank.

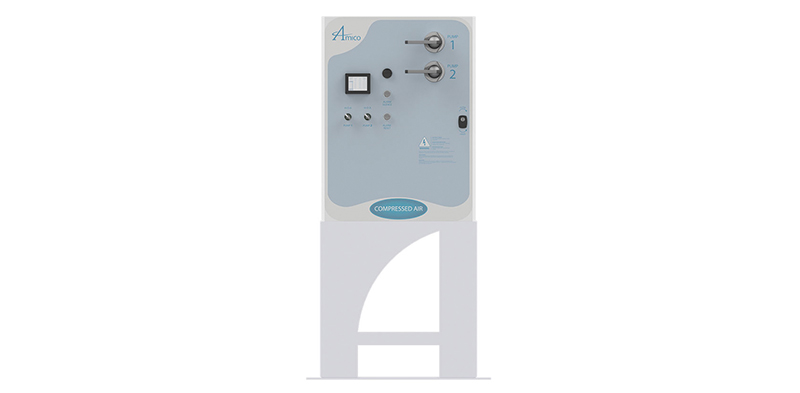

Control Panel
- UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
- Manual reset for all alarms
- All control and alarm functions shall remain energized while any pump in the system remains electrically online
- Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
- Lag pump will start automatically should the lead pump fail to operate

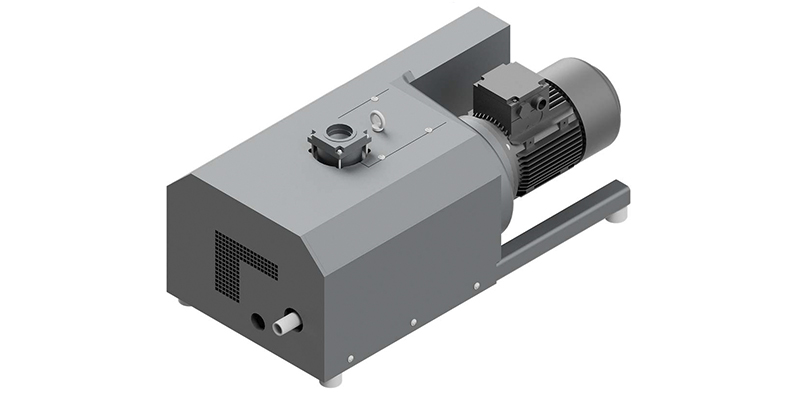

Vacuum Pump
-
Continuous duty, high efficiency, oil-less and friction-less compression Contact-Less Claw type
-
Pumping chamber is oil free
-
Pump is air cooled with no water requirements
-
Claws are synchronized by heavy-duty precision timing gears
-
Built-in anti-suck back valve mounted at the pump inlet
-
Means of removal of the vacuum pump for service or replacement without interruption to the service

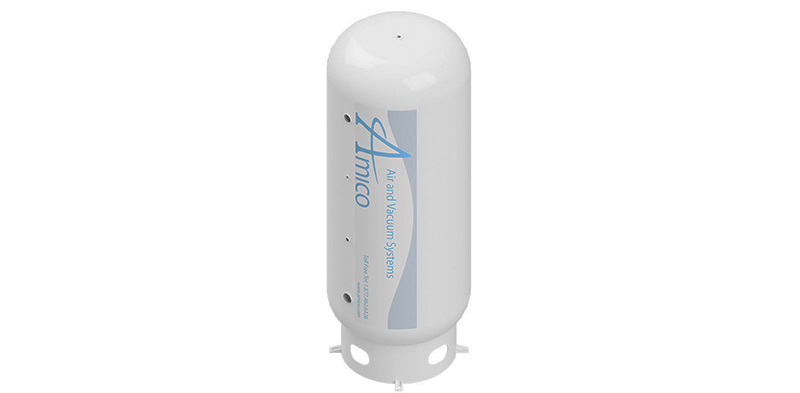

Air Receiver
-
ASME certified with provisions for isolating the receiver without interruption of the vacuum service
-
Rated for full vacuum service with a minimum 200 psig design pressure
-
Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing
Vacuum System
- Pumping chamber operates oil-free and vacuum pump is completely air cooled with no water requirements
- UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
- Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
- Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing
Vacuum System Accessories
- An inlet air filter (optional)
- Check valve
- Flexible connectors
- Isolation valve
- High discharge temperature sensor (with visual indicator)
- Drain valve
- Numerical temperature display
- Site glass
Design Options
- Please click the pink "manuals" icon above to download our NFPA design guide for air compressors.
- Please click the purple "ordering guide" icon above to download our sizing guide for Source equipment.
