NFPA Quadruplex SCD Modular Stack Mount

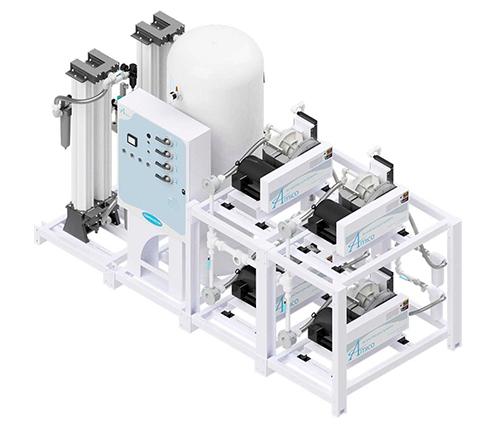

The quadruplex modular stacking configuration consists of two compressors mounted on top of one another on both sides of the receiver tank. This modular or field separable design allows for ease of shipment and handling on site.
Request Information
NFPA Quadruplex SCD Modular Stack Mount
Features
Air Receiver
- ASME certified
- Rated for a minimum of 200 psig design pressure
- Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing
- Three-valve bypass for service or replacement without interruption to the system
Each bank consists of three stages
- Stage 1: Prime efficiency coalescer with filtered, differential pressure gauge
- Stage 2: Desiccant heatless air dryer, equipped with purge control capable of attaining pressure dew point of -40ºF. The dry compressed air is discharged from the "online" tower into the 3rd stage
- Stage 3: Prime efficiency particulate after filter with manual drain differential pressure gauge along with downstream pressure regulators that will maintain constant discharge pressure of 50 psig (field adjustable)
General Features

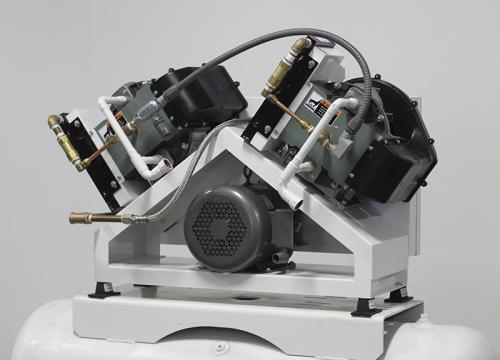

- A-Frame, stackable scroll compressor allows two pumps to run simultaneously with smaller footprint and compact design
- UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
- Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
- Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing
Compressor Accessories
- Individual compressor inline intake filter
- Non-return valve on the outlet
- Flexible inlet and outlet couplings
- Inlet and outlet shut-off valves
- Pressure relief valve
- Condensate separator and drains
- Unloader valve
Control Panel
- UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
- Manual reset for all alarms
- All control and alarm functions shall remain energized while any pump in the system remains electrically online
- Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
Air Compressor
- V-belt driven Oil-Less Rotary Scroll, single stage, air-cooled construction with absolutely no oil needed for operation (Available in 120 or 145 psi configuration)
- A-Frame, stackable scroll allowing two pumps to run simultaneously with smaller footprint allowing for compact design
- 3,600 RPM, premium efficiency motor
- Means of removal of the compressor for service or replacement without interruption to the system
Dryer/Filter/Regulator System
- Integral air treatment system with purge saving feature, NFPA 99 compliant assembly featuring dual desiccant air dryers, dual pre-filters, after-filters, pressure regulator valves, dew point monitor, CO monitor and system safety valves
- Completely pre-piped and pre-wired to single-point service connections
Air Receiver
- ASME certified
- Rated for a minimum of 200 psig design pressure
- Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing
- Three-valve bypass for service or replacement without interruption to the system
Each bank consists of three stages
- Stage 1: Prime efficiency coalescer with filtered, differential pressure gauge
- Stage 2: Desiccant heatless air dryer, equipped with purge control capable of attaining pressure dew point of -40ºF. The dry compressed air is discharged from the "online" tower into the 3rd stage
- Stage 3: Prime efficiency particulate after filter with manual drain differential pressure gauge along with downstream pressure regulators that will maintain constant discharge pressure of 50 psig (field adjustable)
General Features
- A-Frame, stackable scroll compressor allows two pumps to run simultaneously with smaller footprint and compact design
- UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
- Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
- Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing
Compressor Accessories
- Individual compressor inline intake filter
- Non-return valve on the outlet
- Flexible inlet and outlet couplings
- Inlet and outlet shut-off valves
- Pressure relief valve
- Condensate separator and drains
- Unloader valve
Control Panel
- UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
- Manual reset for all alarms
- All control and alarm functions shall remain energized while any pump in the system remains electrically online
- Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
Air Compressor
- V-belt driven Oil-Less Rotary Scroll, single stage, air-cooled construction with absolutely no oil needed for operation (Available in 120 or 145 psi configuration)
- A-Frame, stackable scroll allowing two pumps to run simultaneously with smaller footprint allowing for compact design
- 3,600 RPM, premium efficiency motor
- Means of removal of the compressor for service or replacement without interruption to the system
Dryer/Filter/Regulator System
- Integral air treatment system with purge saving feature, NFPA 99 compliant assembly featuring dual desiccant air dryers, dual pre-filters, after-filters, pressure regulator valves, dew point monitor, CO monitor and system safety valves
- Completely pre-piped and pre-wired to single-point service connections
Air Receiver
- ASME certified
- Rated for a minimum of 200 psig design pressure
- Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing
- Three-valve bypass for service or replacement without interruption to the system
Each bank consists of three stages
- Stage 1: Prime efficiency coalescer with filtered, differential pressure gauge
- Stage 2: Desiccant heatless air dryer, equipped with purge control capable of attaining pressure dew point of -40ºF. The dry compressed air is discharged from the "online" tower into the 3rd stage
- Stage 3: Prime efficiency particulate after filter with manual drain differential pressure gauge along with downstream pressure regulators that will maintain constant discharge pressure of 50 psig (field adjustable)
