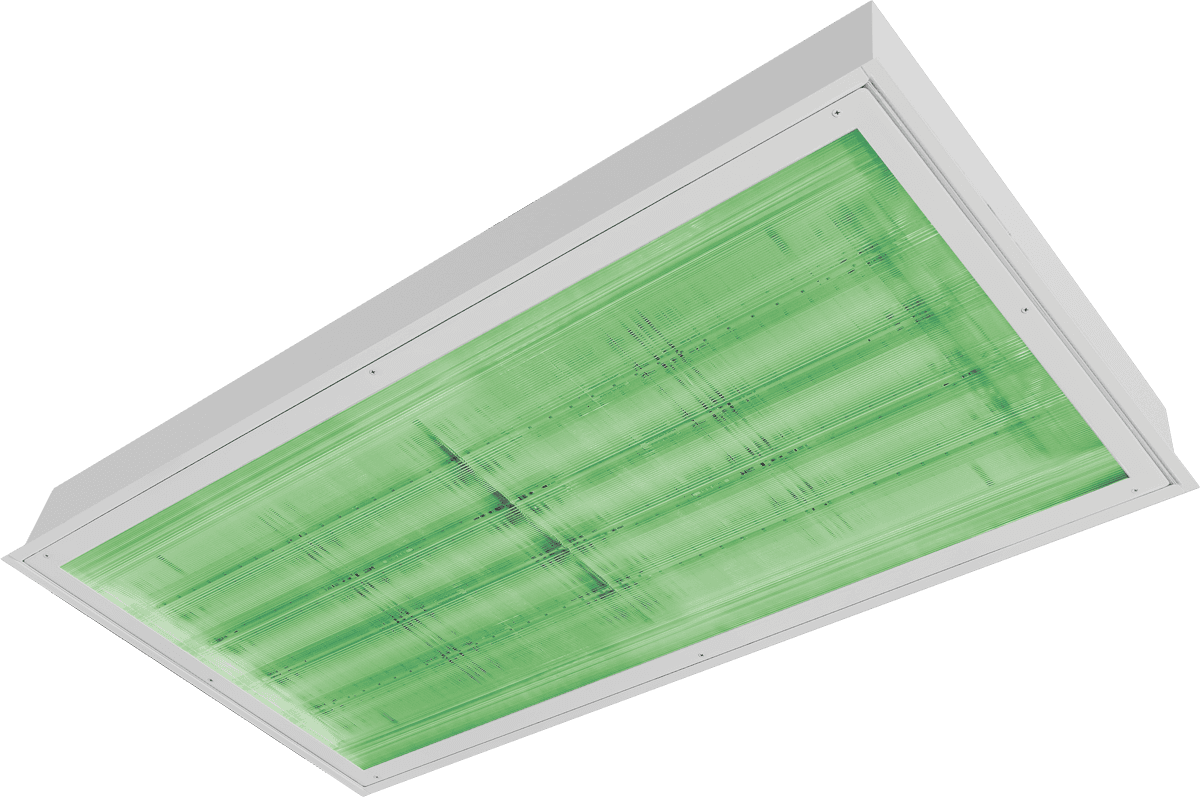

2' x 4'
Luminaire Green and White
Solar Surgical
Solar Surgical Luminaires provide unsurpassed shadow control and uniform illumination to support clinicians with advanced visual acuity in the OR environment.
Description
Amico's Solar Surgical Luminaires provide flawless visibility in the OR environment. For increased functionality White and Green LED's can be used in combination to reduce glare on monitors and prevent eyestrain during lengthy surgical procedures. The symmetrical/asymmetrical design of the luminaires provides unsurpassed shadow control and uniform illumination to support clinicians with a high degree of visual acuity. A one-piece seam welded enclosure and IP65 ingress barrier provide added durability and infection control. All surgical fixtures are available with dimming and zoned lighting options in either flange or grid ceiling installations for additional convenience.
Features
Specifications
Voltage
- 120 - 277 Volts
Dimming Options
- 0 - 10 Volts
- DALI options available
Color Quality
- 80 CRI
- 90 CRI
Color Temperature
- Green: 530 NM
- White: 3500 K
- White: 4000 K
- White: 5000 K
Life of LEDs
- L70 > 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Luminaire is certified to UL standards by Intertek
- UL certified IP65 per IEC 60598
- Conducted emissions controlled as per MIL-STD-461G
Housing
- 20ga CRS
- Single-piece
- Seam-welded construction
Finish
- White urethane powder coat finish
- 5 step treatment
- Antimicrobial finish
Lens
- Once piece design
- Symmetrical/symmetrical
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Optics
- Symmetric/asymmetric reflectors diffused for glare free operation
Light Source
- Samsung LEDs mounted on Aluminum Core PCB
RFI Filter
- Power line RFI filter used to control conducted emissions
