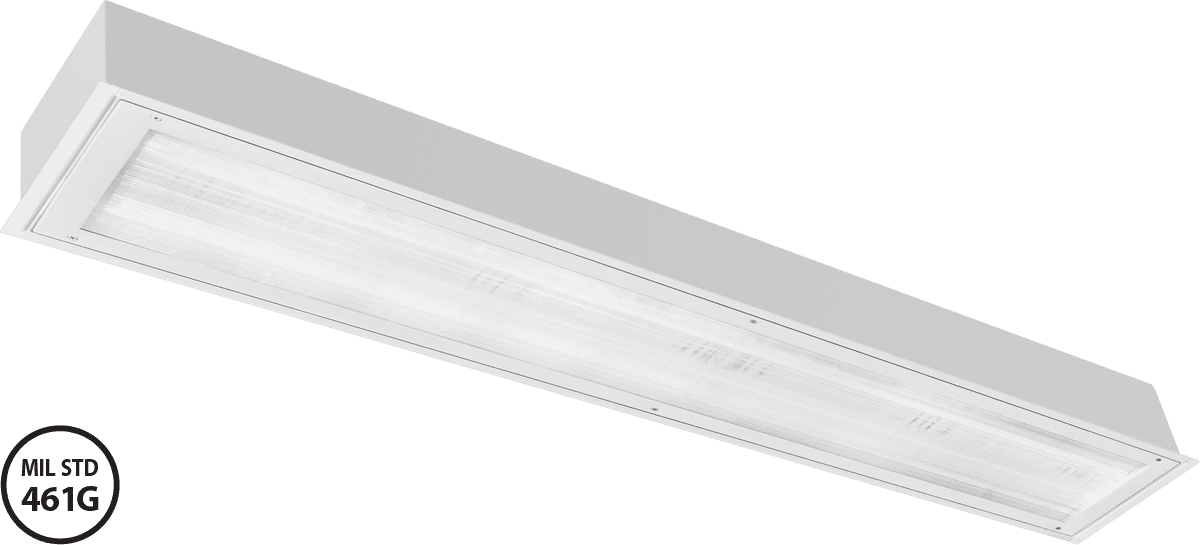

MIL 1' x 4'
Luminaire
Solar Surgical
Amico MIL-Spec Surgical Luminaires offer high-quality, glare-free lighting with infection control features, meeting MIL-STD-461G emission standards.
Description
Amico's MIL-Spec Surgical Luminaires provide superior lighting with high-quality LEDs in 80 and 90 CRI options. The symmetrical and asymmetrical lenses are designed to reduce glare, ensuring optimal visibility in the OR. An integrated RFI in-line filter ensures compliance with MIL-STD-461G emission standards. The one-piece sealed housing, smooth doorframe, and lens make it easy to clean and support infection control. Available for both flange and grid ceiling installations, these luminaires are built with hospital-grade materials to offer durability and long-lasting performance.
Features
Specifications
Voltage
- 120 - 277 Volts
Dimming Options
- 0 - 10 Volts
- DALI options available
Color Quality
- 80 CRI
- 90 CRI
Color Temperature
- 3500 K
- 4000 K
- 5000 K
Life of LEDs
- L70 > 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Luminaire is certified to UL standards by Intertek.
- Conducted emissions controlled as per MIL-STD-461G.
Housing
- 20ga CRS
- Single-piece
- Seam-welded construction
Finish
- White urethane powder coat finish
- 5 step treatment
- Hospital grade material and finish
Lens
- IP65 rated fully enclosed CRS cover with asymmetrical/symmetrical acrylic lens
- Optional RFI grid available
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Light Source
- Samsung LEDs mounted on Aluminum Core PCB
RFI Filter
- Power line RFI filter used to control conducted emissions
