2' x 2'
Reading Ambient
Solar Series
Solar Series Reading Ambient offers general ambient lighting in a traditional patient room lighting design to provide an optimal environment for patient healing and recovery.
Description

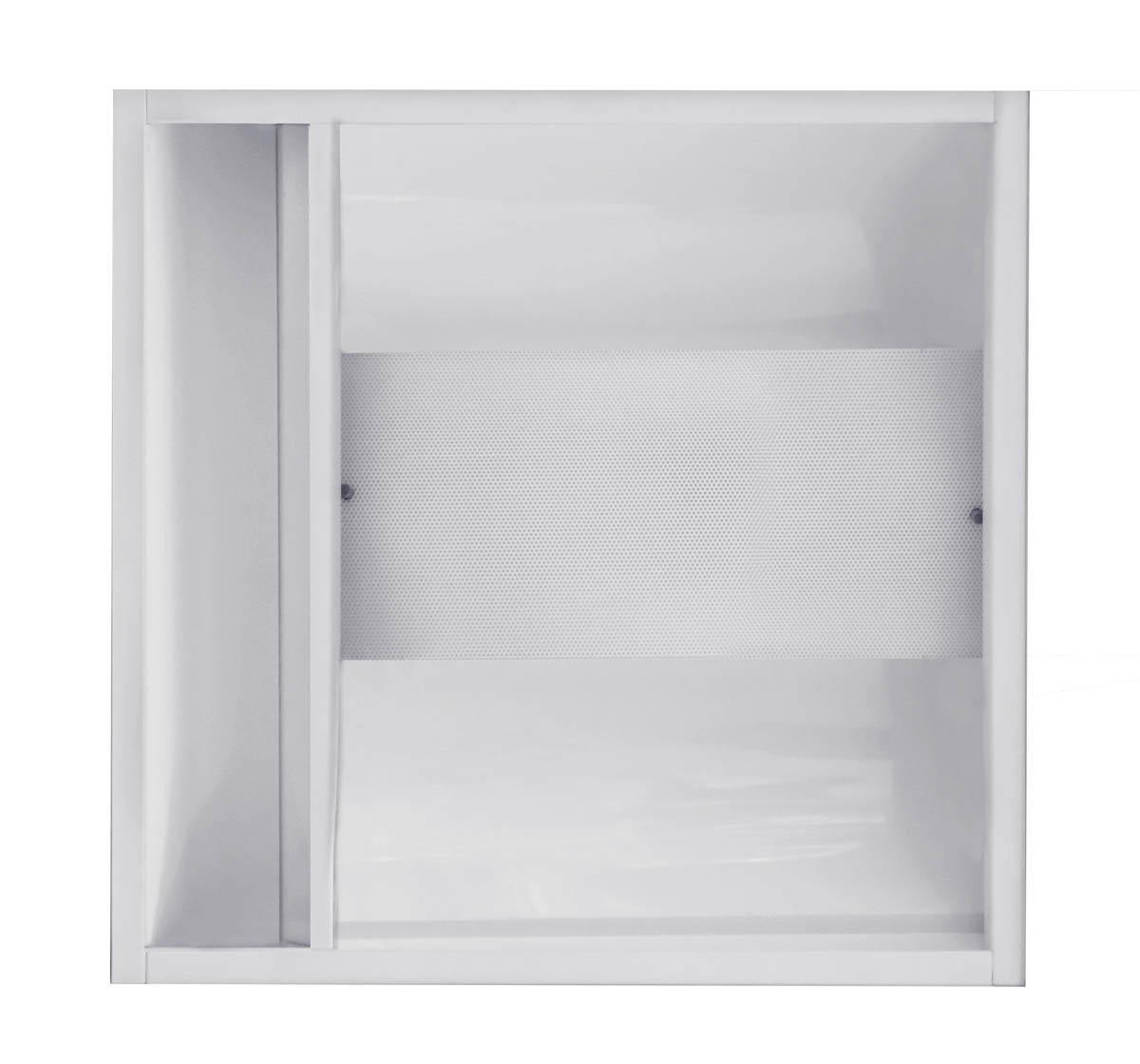

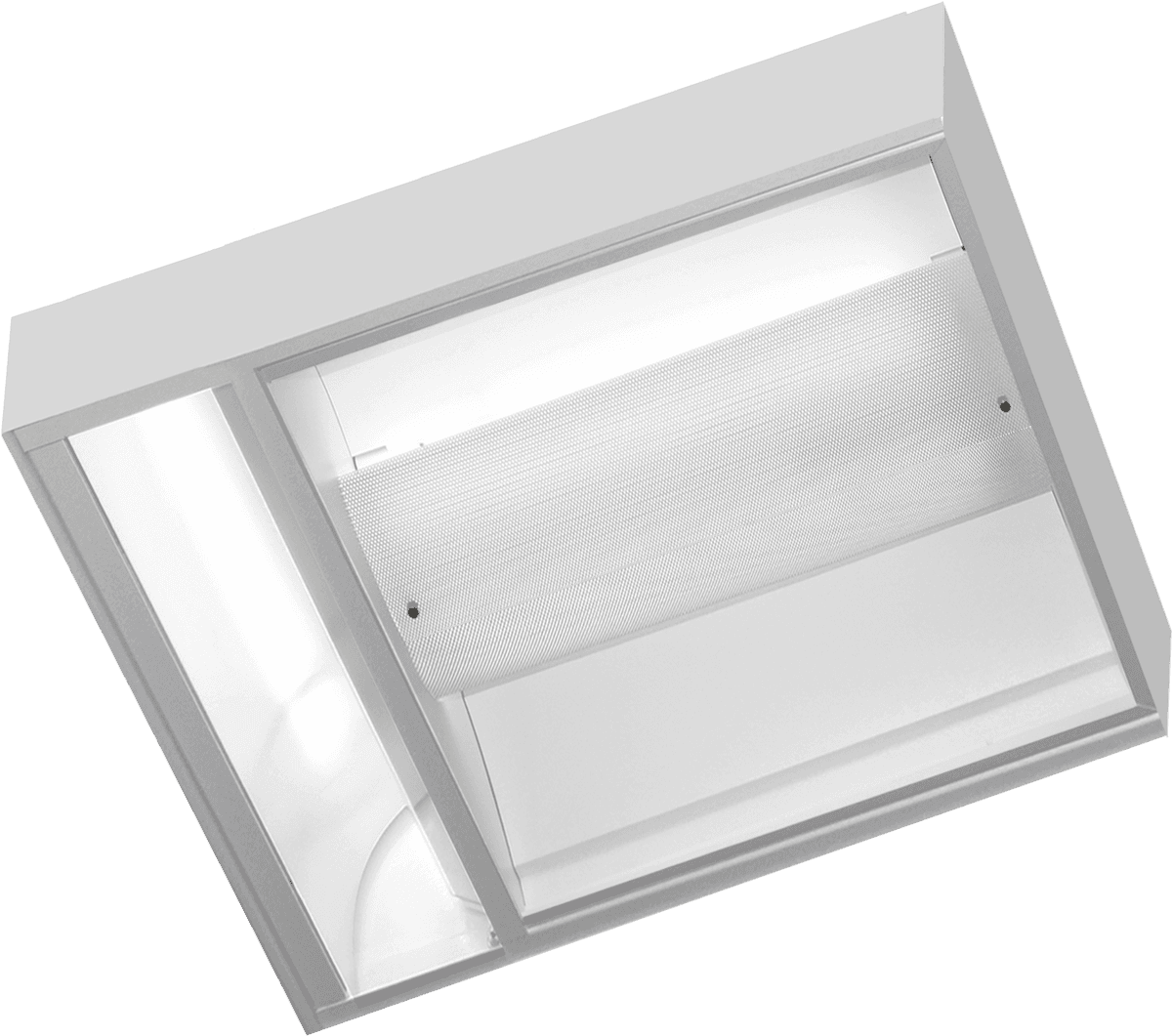

Solar Series Reading Ambient 2 x 2 offers a traditional patient room lighting design in a multi-compartment ceiling fixture. Reading and ambient functions come standard and provide patients with an optimal environment for healing and recovery. An optional night light provides patients and clinical staff with low-level illumination to navigate safely during evening hours. Glare-free lenses and reflectors cover all lighting functions and ensure patient comfort while maximizing clinical efficiencies.
Features
Specifications
Voltage
- 120 - 277 Volts
Standard Wattage
- Total: 76 W
- Ambient: 49 W
- Reading: 27 W
Standard Lumen Output
- Total: 8,871 LMS
- Ambient: 5,824 LMS
- Reading: 3,047 LMS
Dimming Options
- 0 - 10 Volts
- Standard 5% dimming
- Contact factory for 1% dimming
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI
Standard Color Temperature
- 3000 K
- 3500 K
- 4000 K
- Contact factory for additional options
Life of LEDs
- L70 > 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Certified to UL standards by ETL
- Conforms to CSA standards as per ETL testing
Housing
- 20ga CRS
- Single-piece
- Seam-welded construction
Finish
- White urethane powder coat finish
- 5 step treatment
- Hospital grade material and finish
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Light Source
- Samsung LED (or equivalent) mounted to linear boards
Lamp Shielding
- Perforated basket with acrylic diffuser for Ambient and clear acrylic shield for Reading
Optional Ingress Barrier
- IP65 rated 3mm clear acrylic barrier covers the entire fixture using a piano hinge
- Door frame secured to the housing and a closed-cell neoprene/EPDM/SBR gasket seals the door frame to the housing
