Tunable 2' x 2'
Multifunction
Solar Eclipse

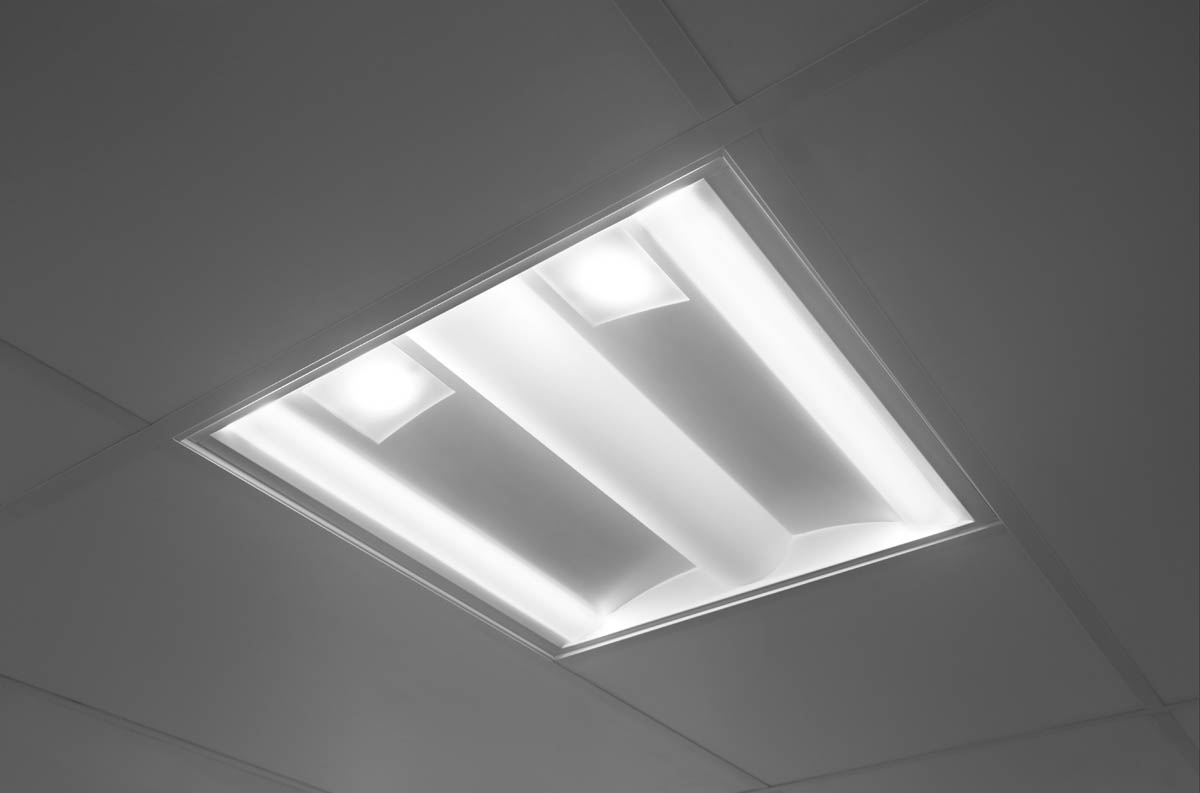

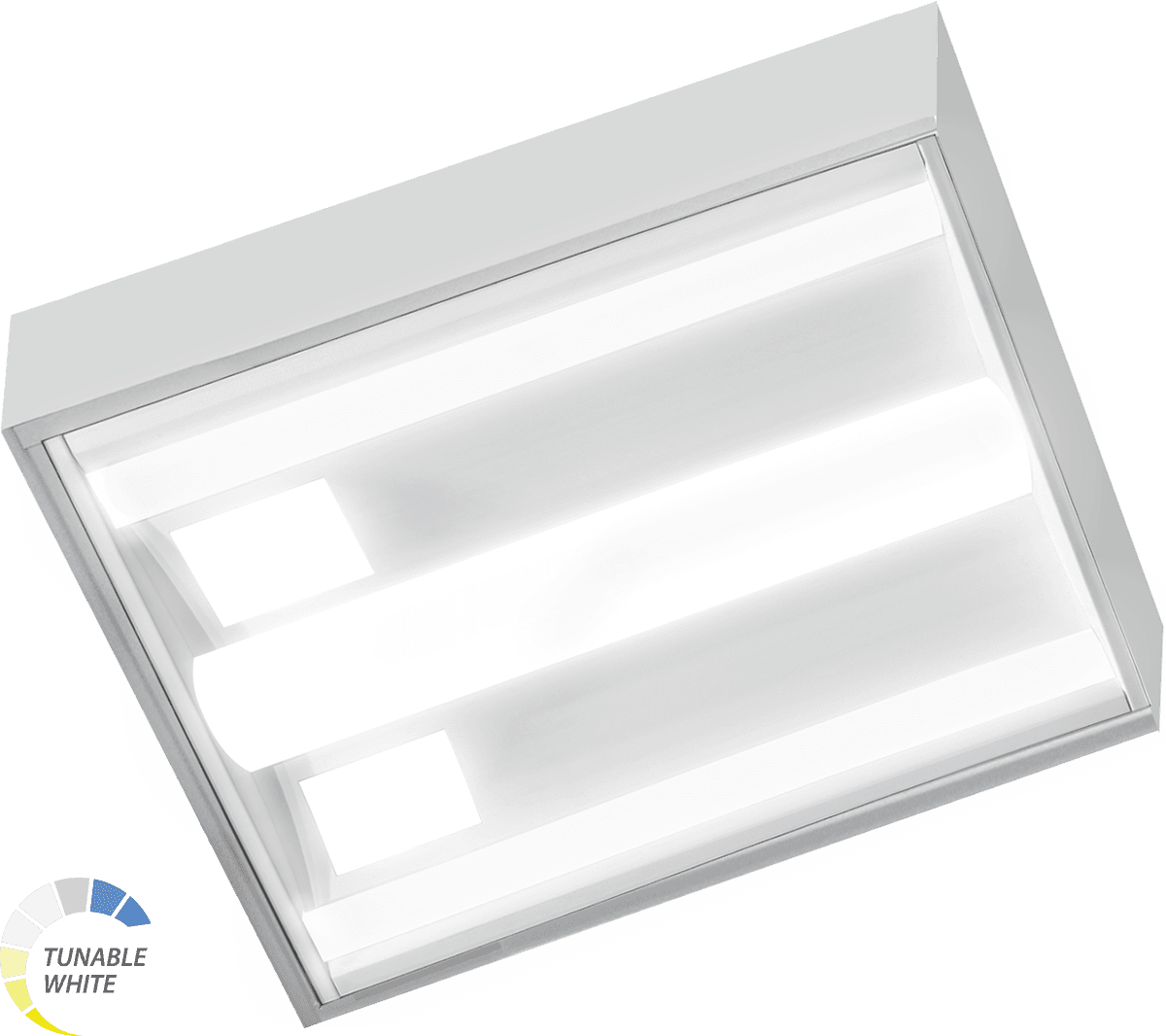

The Solar Series 2' x 2' Eclipse LED Light features a compact design with tunable white lighting. Ambient mode is standard, while Exam and Reading modes are available as optional upgrades. The Solar Eclipse light fixture delivers glare-free, optimal illumination for the comfort of both patients and caregivers.
Description
The Solar Series 2' x 2' Eclipse LED Light delivers the functionality of the larger 2' x 4' version in a compact design, ideal for spaces with ceiling obstructions like patient lifts or pendant systems. It offers tunable white lighting with Ambient mode as standard, and optional Exam and Reading modes for enhanced illumination. Fully enclosed LEDs and glare-free lenses ensure optimal light output, creating a safe and comfortable environment for patients and caregivers.
Features
Specifications
Voltage
- 120 - 277 Volts
Standard Wattage
- Total: 70 W
- Exam: 41 W
- Ambient: 23 W
- Reading: 9 W
Standard Lumen Output
- Total: 7,530 LMS
- Exam: 4,140 LMS
- Ambient: 2,650 LMS
- Reading: 740 LMS
Dimming Options
- 0 - 10 Volts
- Standard 5% dimming
- Contact factory for 1% dimming
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI
Standard Color Temperature
- 3000 K
- 3500 K
- 4000 K
- Contact factory for additional options
Color Tuning
- 2700K - 6500K Tunable White Ambient
Life of LEDs
- L70> 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Certified to UL standards by ETL
- Conforms to CSA standards as per ETL testing
Housing
- 20ga CRS
- Single-piece
- Seam-welded construction
Finish
- White urethane powder coat finish
- Hospital grade material and finish
Lens
- High impact
- LED specific acrylic
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Tunable Driver
- Bridgelux vesta with the 0-10 V control module
Optional Ingress Barrier
- IP65 rated fully enclosed CRS cover, with 3mm clear acrylic lens
