6" x 48"
Multifunction
Solar Duo Med
The Solar Duo Med tandem luminaires offers superior functionality and performance to support both patients and caregivers. For use in patient rooms, ICU's, exam rooms, and more.
Description

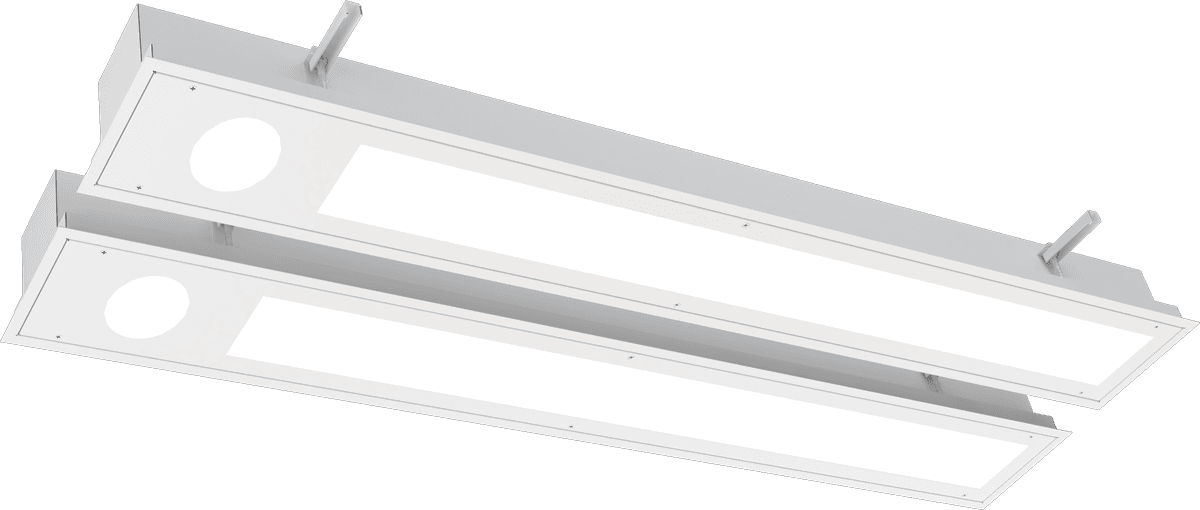

The Solar Duo Med Multifunction tandem luminaires merge architectural aesthetics and superior lighting performance to provide a sleek and modern design to any patient room. This multifunctional luminaire comes standard with reading, ambient, and exam functionalities to support patient well-being and improve clinical workflow. Our linear design provides visual comfort for the patient while offering functionality and convenience in areas where ceiling space is limited by critical healthcare equipment. The Duo Med series is designed with an asymmetrical light distribution to support clinicians and ensure that maximum light output reaches the patient bed at all times. Incorporate intuitive, user-friendly controls with our LightMaster Multifunctional Switch to further enhance functionality.
Features
Specifications
Voltage
- 120 - 277 Volts
Standard Wattage
- Ambient: 30 W
- Exam: 40 W
- Reading: 5 W
- Total: 75 W
- Total Pair: 150 W
Standard Lumen Output
- Ambient: 3,185 LMS
- Exam: 4,230 LMS
- Reading: 450 LMS
- Total: 7,865 LMS
- Total Pair: 15,730 LMS
Dimming Options
- 0 - 10 Volts
- Standard 1% dimming
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI
Standard Color Temperature
- 3000 K
- 3500 K
- 4000 K
- Contact factory for additional options
Life of LEDs
- L70 > 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Certified to UL standards by ETL
- Conforms to CSA standards as per ETL testing
Housing
- 20ga CRS
- Single-piece
- Seam-welded construction
Finish
- White urethane powder coat finish
- Hospital grade material and finish
Lens
- IP65 rated fully enclosed CRS cover, with acrylic diffuser
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Light Source
- Samsung LEDs mounted on Aluminum Core PCB
