Tunable 6" x 48"
Ambient Exam

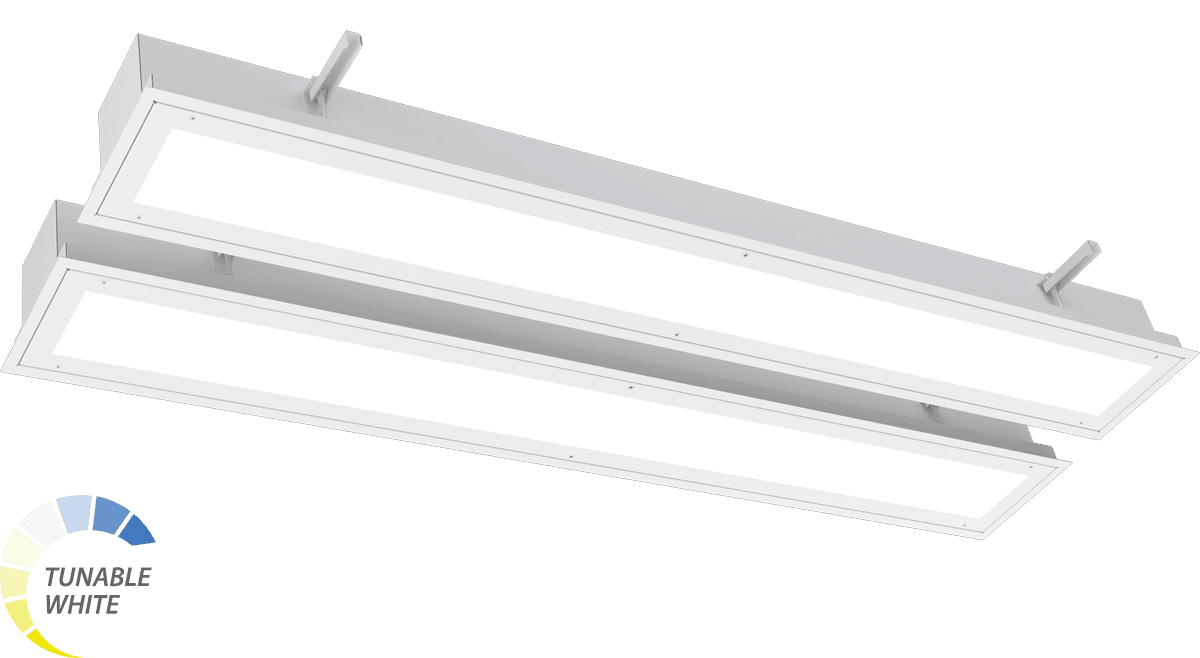

Solar Duo Med
The Solar Duo Med Ambient/Exam LED Light delivers tunable, glare-free illumination from 2700K to 6500K with dedicated Ambient and Exam modes, combining patient comfort, clinical functionality, and space-saving design for modern healthcare environments.
Description
The Solar Duo Med Ambient/Exam LED Light is designed to meet the essential lighting needs of patient rooms with tunable white light ranging from 2700K to 6500K. Offering dedicated Ambient and Exam modes, it provides soft, relaxing illumination for patient comfort and bright, focused light for clinical tasks.
Fully enclosed LEDs prioritize patient safety, while advanced lenses and reflectors deliver glare-free, uniform illumination throughout the space. Its tandem, space-saving design enhances both room aesthetics and clinical efficiency, creating a modern, healing environment tailored to healthcare settings.
Features
Specifications
Color Tuning
- 2700K - 6500K Tunable White Ambient
Voltage
- 120 - 277 Volts
Standard Wattage
- Ambient: 30 W
- Exam: 40 W
- Total Pair: 140 W
Standard Lumen Output
- Ambient: 3,185 LMS
- Total Pair: 14,830 LMS
- Exam: 4,230 LMS
Dimming Options
- 0 - 10 Volts
- Standard 1% dimming
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI
Standard Color Temperature
- 3000 K
- 3500 K
- 4000 K
- Contact factory for additional options
Life of LEDs
- L70 > 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Certified to UL standards by ETL
- Conforms to CSA standards as per ETL testing
Housing
- 20ga CRS
- Single-piece
- Seam-welded construction
Finish
- White urethane powder coat finish
- Hospital grade material and finish
Lens
- IP65 rated fully enclosed CRS cover, with acrylic diffuser
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Light Source
- Samsung LEDs mounted on Aluminum Core PCB
Tunable Driver
- Bridgelux vesta with the 0-10 V control module
