Tunable 6" x 48"
Multifunction
Solar Duo Med

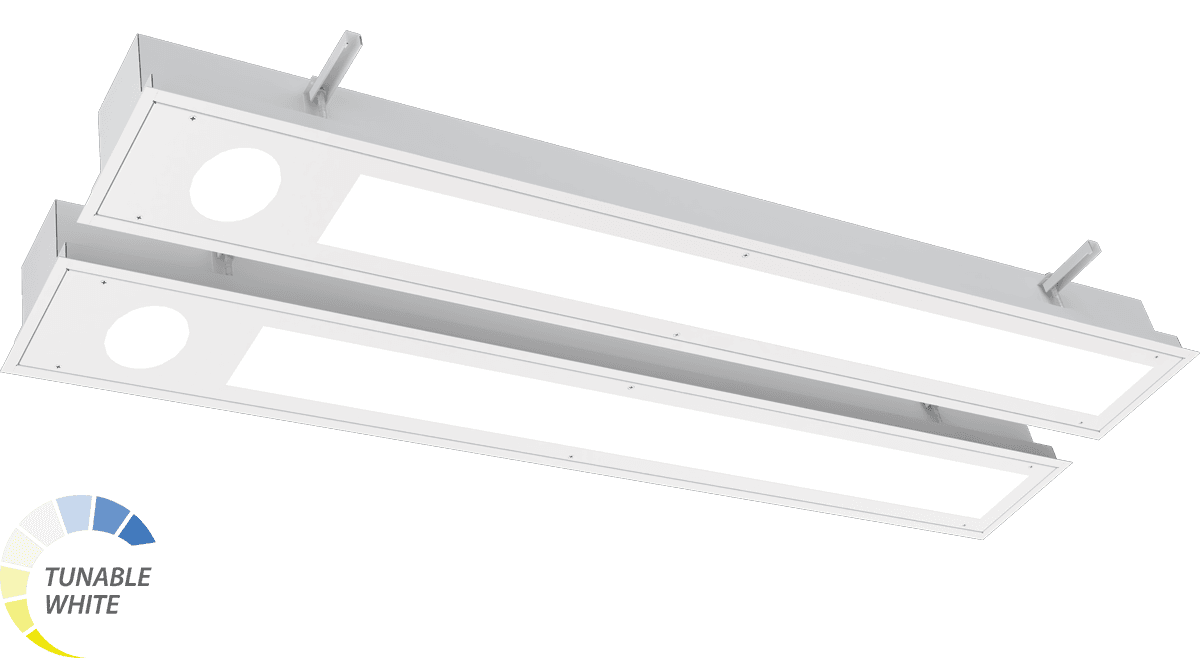

The Duo Med Tunable White LED Light provides Ambient, Reading and Exam functions with glare-free illumination. The Ambient light comes with standard tunable functionality from 2700K to 6500K. The Reading and Exam lighting options are available with tunable functionality as a custom feature; please consult the factory for details.
Description

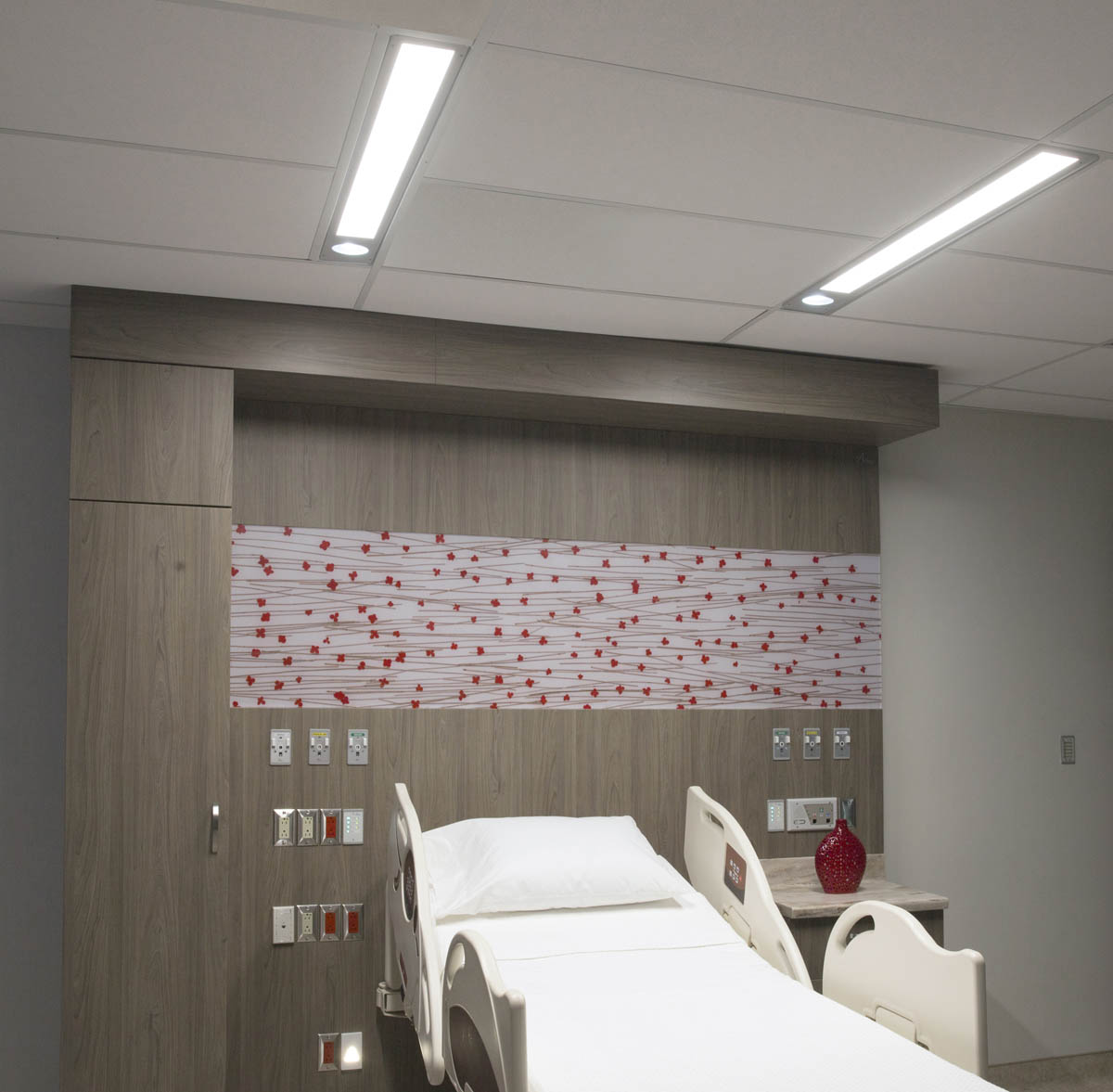

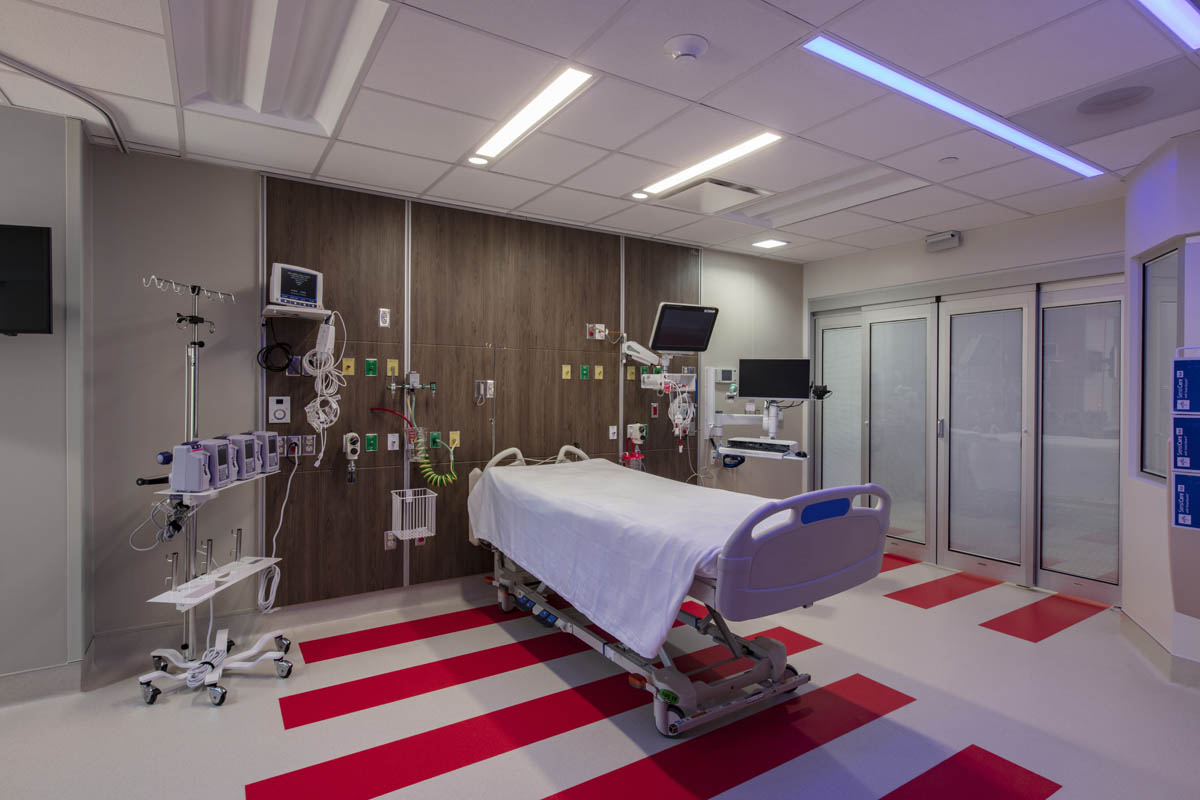

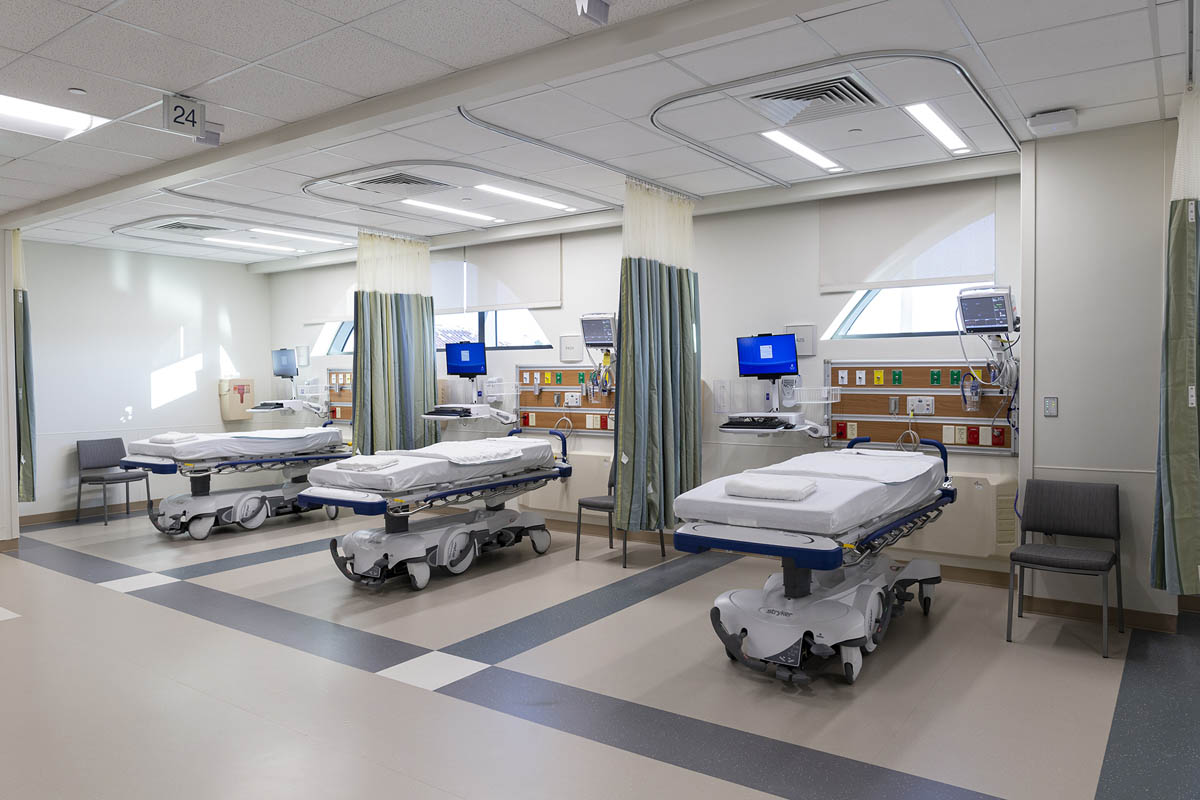

The Duo Med Tunable White LED Light is designed to meet general patient room needs with up to three lighting functions: Ambient, Exam, and Reading. Its fully enclosed LEDs ensure patient safety, while advanced lenses and reflectors deliver glare-free, optimized illumination for caregivers. Mimicking natural daylight with a tunable range of 2700K - 6500K, it supports caregiver focus with cool white light and promotes patient relaxation with warm tones. Featuring a tandem design, the sleek and modern Duo Med Series saves ceiling space, enhances clinical efficiency with asymmetric light distribution, and creates a comforting, home-like healing environment.
Features
Specifications
Voltage
- 120 - 277 Volts
Standard Wattage
- Ambient: 30 W
- Exam: 40 W
- Reading: 5 W
- Total: 75 W
- Total Pair: 150 W
Standard Lumen Output
- Ambient: 3,185 LMS
- Exam: 4,230 LMS
- Reading: 450 LMS
- Total: 7,865 LMS
- Total Pair: 15,730 LMS
Dimming Options
- 0 - 10 Volts
- Standard 1% dimming
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI
Standard Color Temperature
- 3000 K
- 3500 K
- 4000 K
- Contact factory for additional options
Color Tuning
- 2700K - 6500K Tunable White Ambient
Life of LEDs
- L70 > 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Certified to UL standards by ETL
- Conforms to CSA standards as per ETL testing
Housing
- 20ga CRS
- Single-piece
- Seam-welded construction
Finish
- White urethane powder coat finish
- Hospital grade material and finish
Lens
- IP65 rated fully enclosed CRS cover, with acrylic diffuser
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Light Source
- Samsung LEDs mounted on Aluminum Core PCB
Tunable Driver
- Bridgelux vesta with the 0-10 V control module
