Tunable

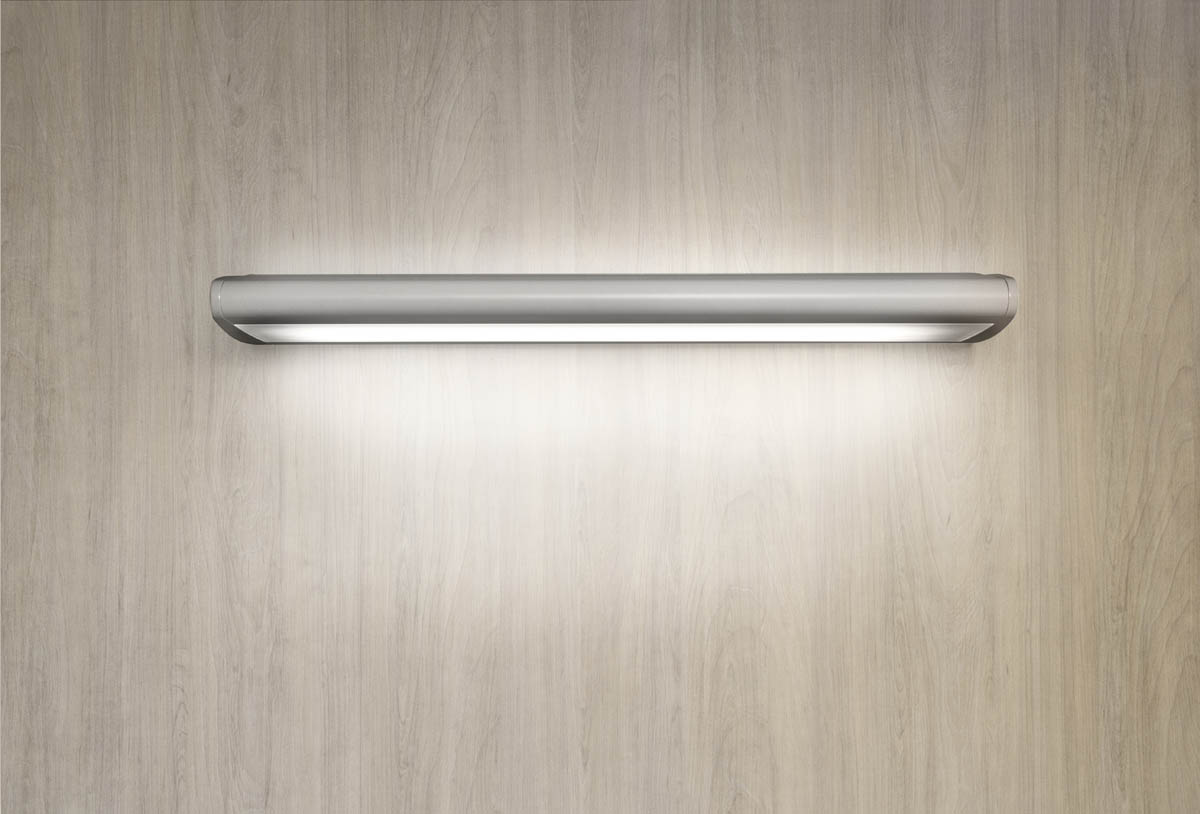

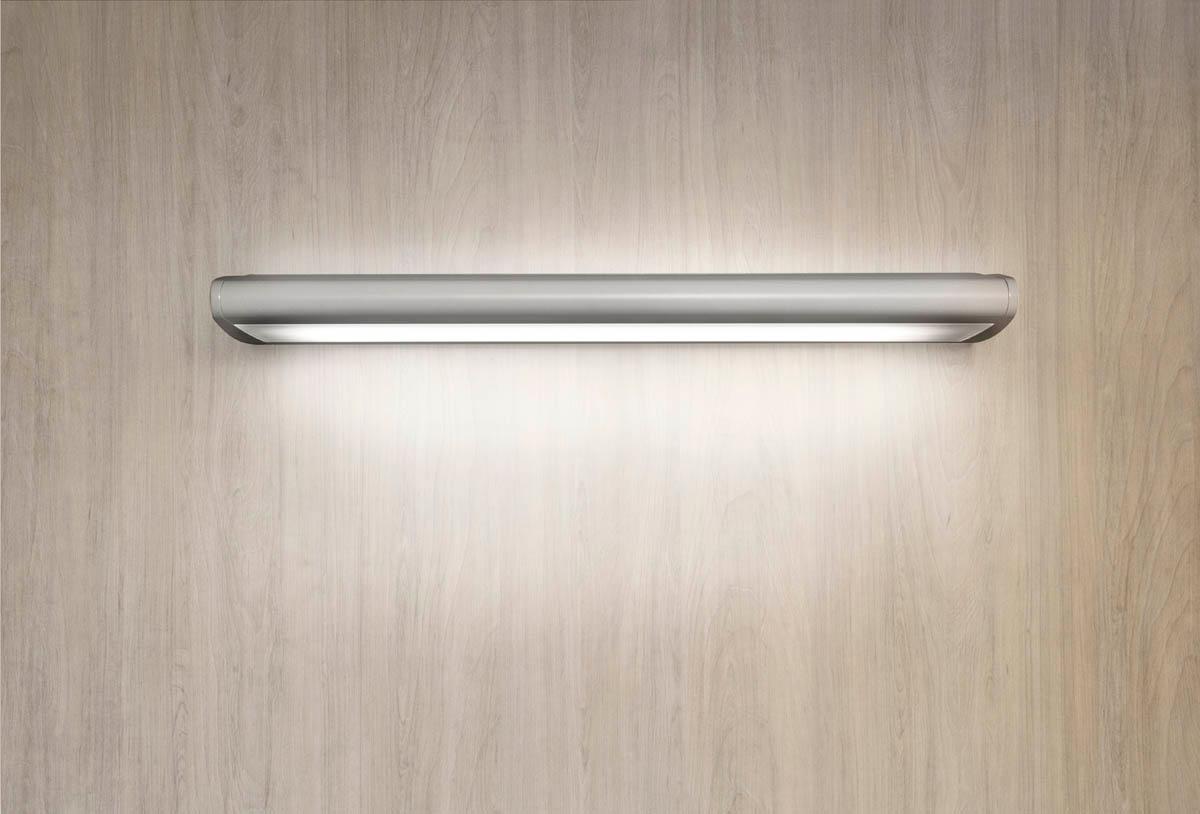

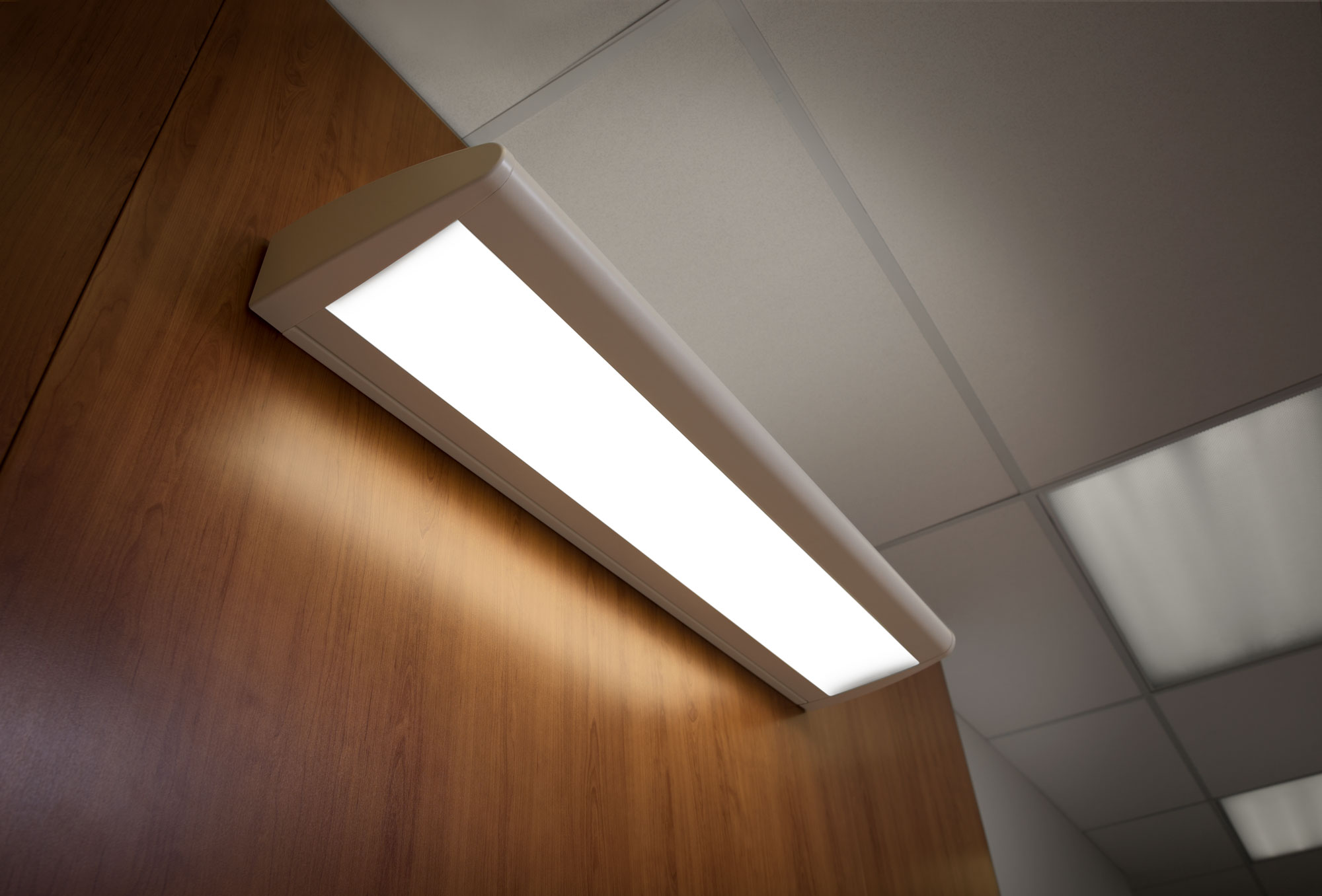

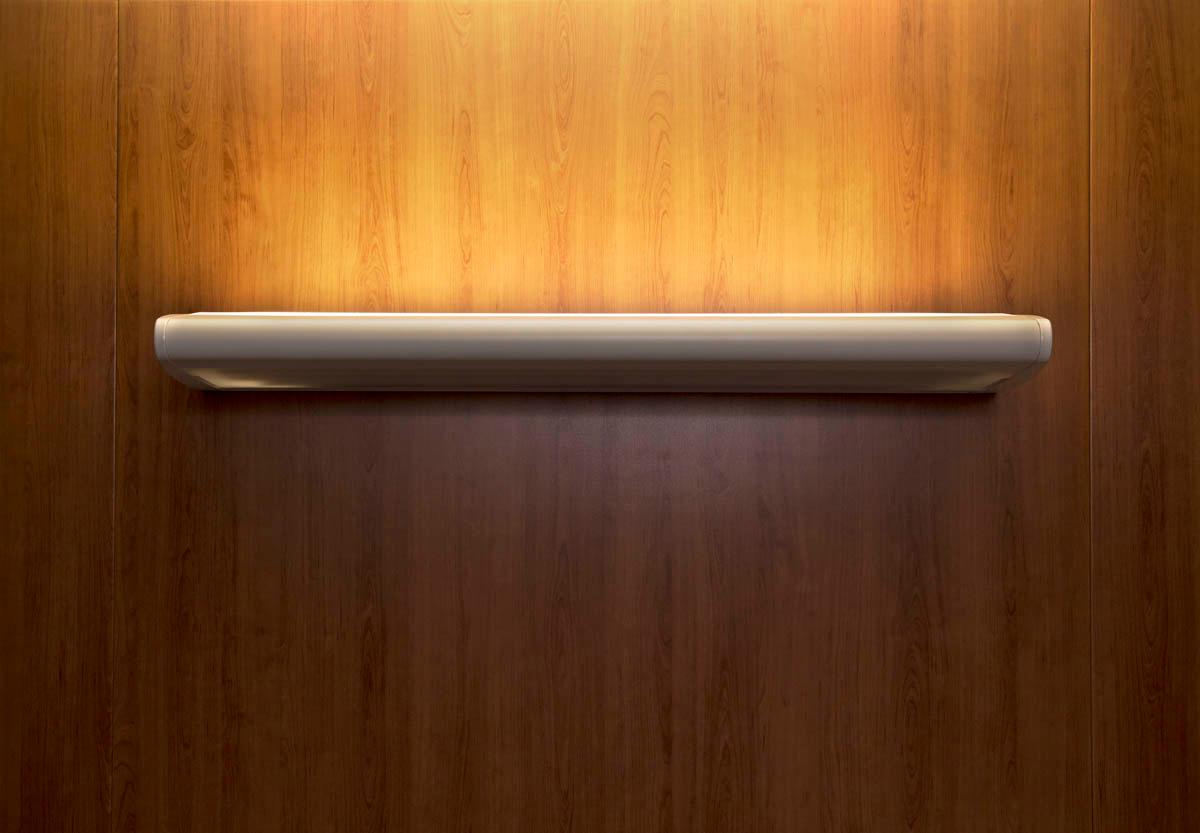

Skyline Overbed LED Light
Skyline Series

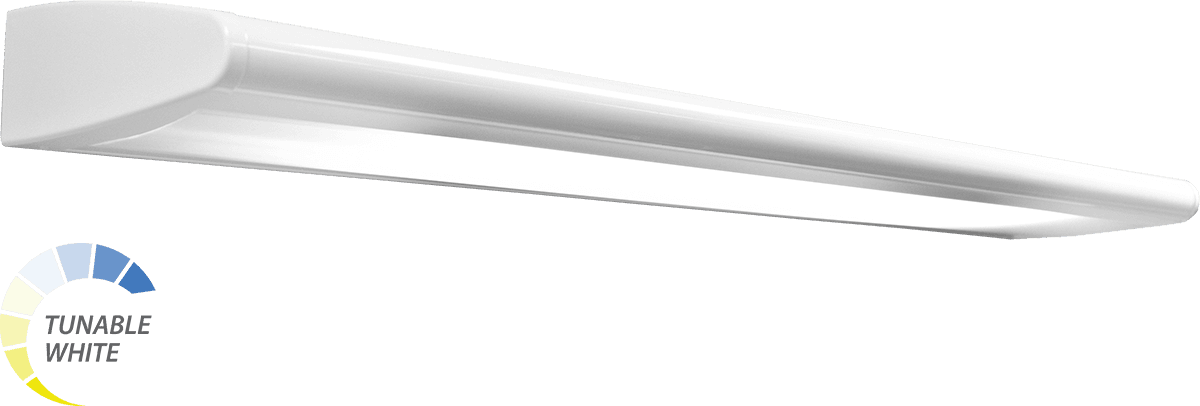

The Amico Skyline Series offers a sleek, multifunctional overbed light with tunable white lighting, adjustable from 2700K to 6500K, standard for the Ambient function only. Tunable lighting for the Reading and Exam functions is available as a custom option; please consult the factory for details.
Description

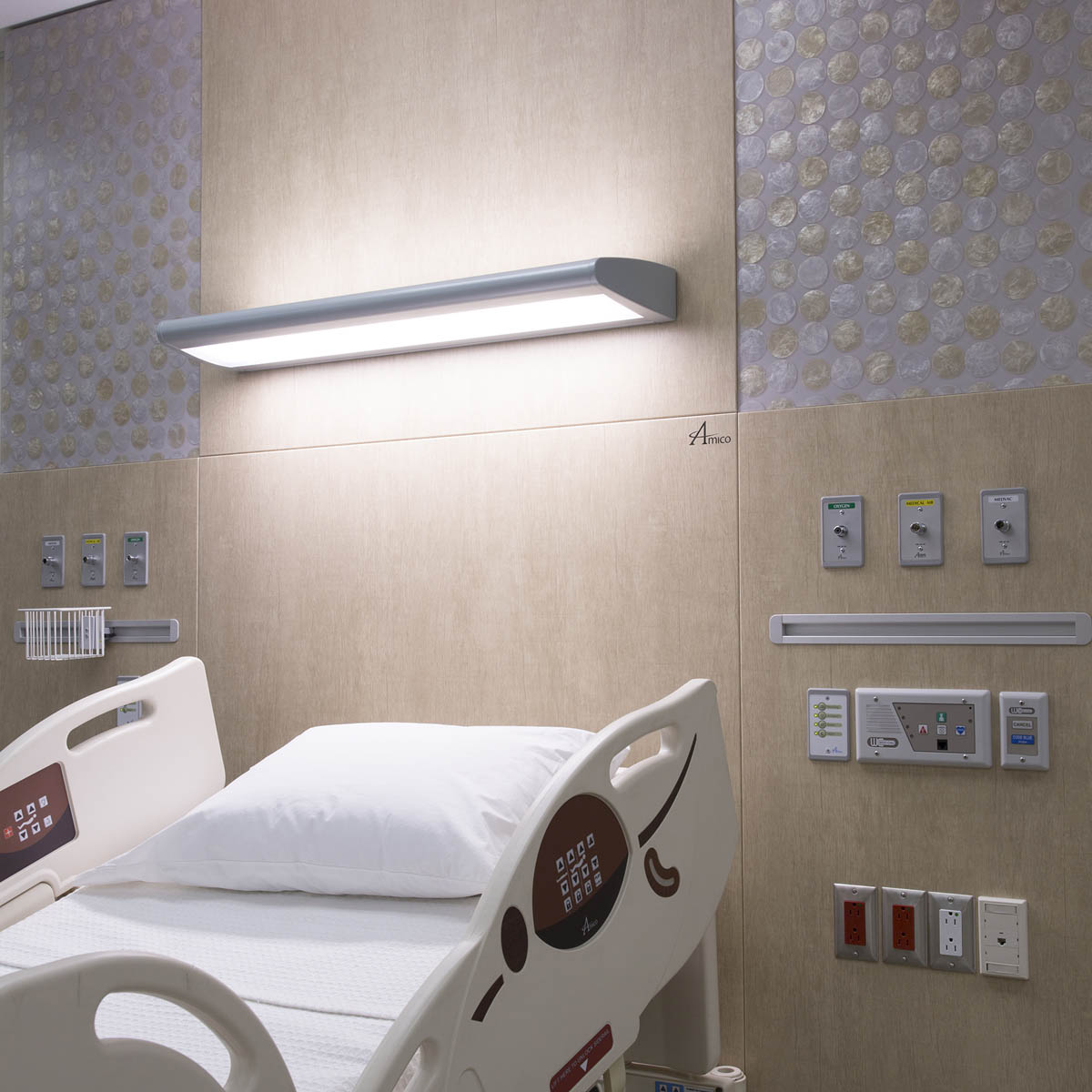

Inspired by the aerodynamic shape of an Airplane Wing, the Amico Skyline Series LED overbed light offers a sleek and elegant design that meets the needs of both the patient and caregiver. Incorporating the latest in LED technology the Skyline light is designed to provide high quality illumination while meeting the aesthetic requirements of the patient room. Cool white light improves concentration of the caregiver while warm white light calms and helps the patient to rest.
The Skyline Series light is designed with seam-free surfaces and clean edges that eliminate dust traps and make cleaning easy. Amico tunable white lights mimic natural daylight indoors by covering a wide color palette from 2700K - 6500K.
Features
Specifications
Voltage
- 120 - 277 Volts
Standard Wattage
- Total: 112.3 W
- Exam: 48.2 W
- Ambient: 32.3 W
- Reading: 30.0 W
Standard Lumen Output
- Total: 9,964 LMS
- Exam: 3,950 LMS
- Ambient: 3,321 LMS
- Reading: 2,739 LMS
Dimming Options
- 0 - 10 Volts
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI
Exam/Night Light CCT
- 3000 K
- 3500 K
- 4000 K
Color Tuning
- 2700K - 6500K Tunable White Ambient
MacAdam Step
- Three (3) step MacAdam variation
Control
- Independent 0 - 10 Volts control for intensity and CCT
Life of LEDs
- L70 > 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Certified to UL standards for dry/damp locations by ETL
- Conforms to CSA standards for dry/damp locations as per ETL testing
Housing
- Marine Grade Aluminum Extrusion
- Housing attaches to mounting plate provided and secured to PEM studs
- Unique hinge design on mounting plate for single man install
Finish
- Hospital grade material and finish on all exposed aluminum surfaces
Lens
- High Impact, frosted polycarbonate
- Extruded to frame for tight fit and infection control
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Light Source
- Samsung LED mounted to aluminum core linear boards
Color Options
- Antique white and Silver aluminum finishes
Length Options
- Nominal 2' Actual: 26.75" (679.5 mm)
- Nominal 3' Actual: 38.75" (984.3 mm)
- Nominal 4' Actual: 50.75" (1289.1 mm)
