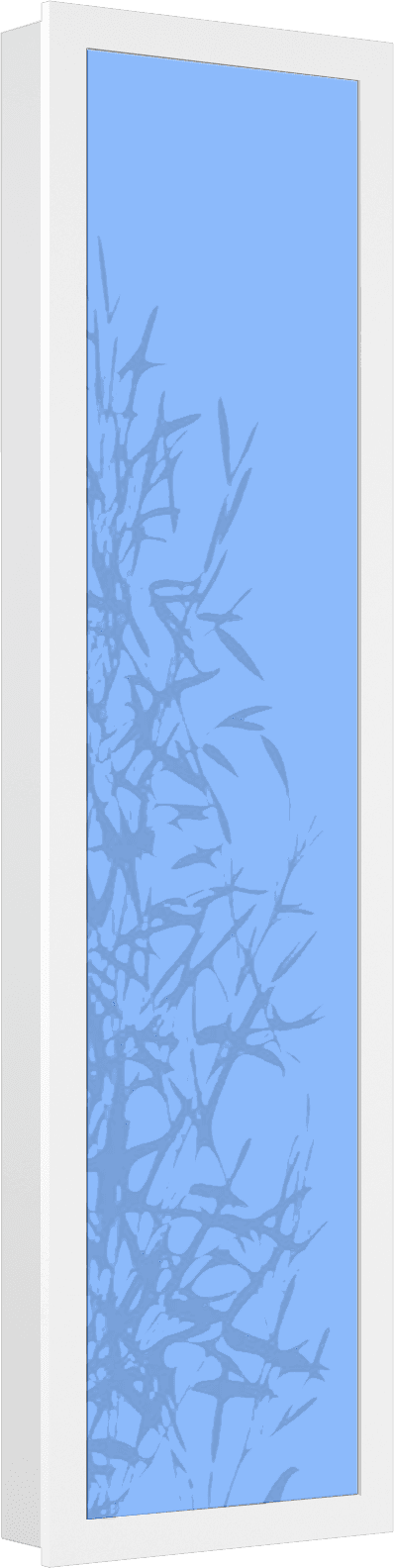

2' x 8'
Illuminated Image Wall Fixture
MRI Series

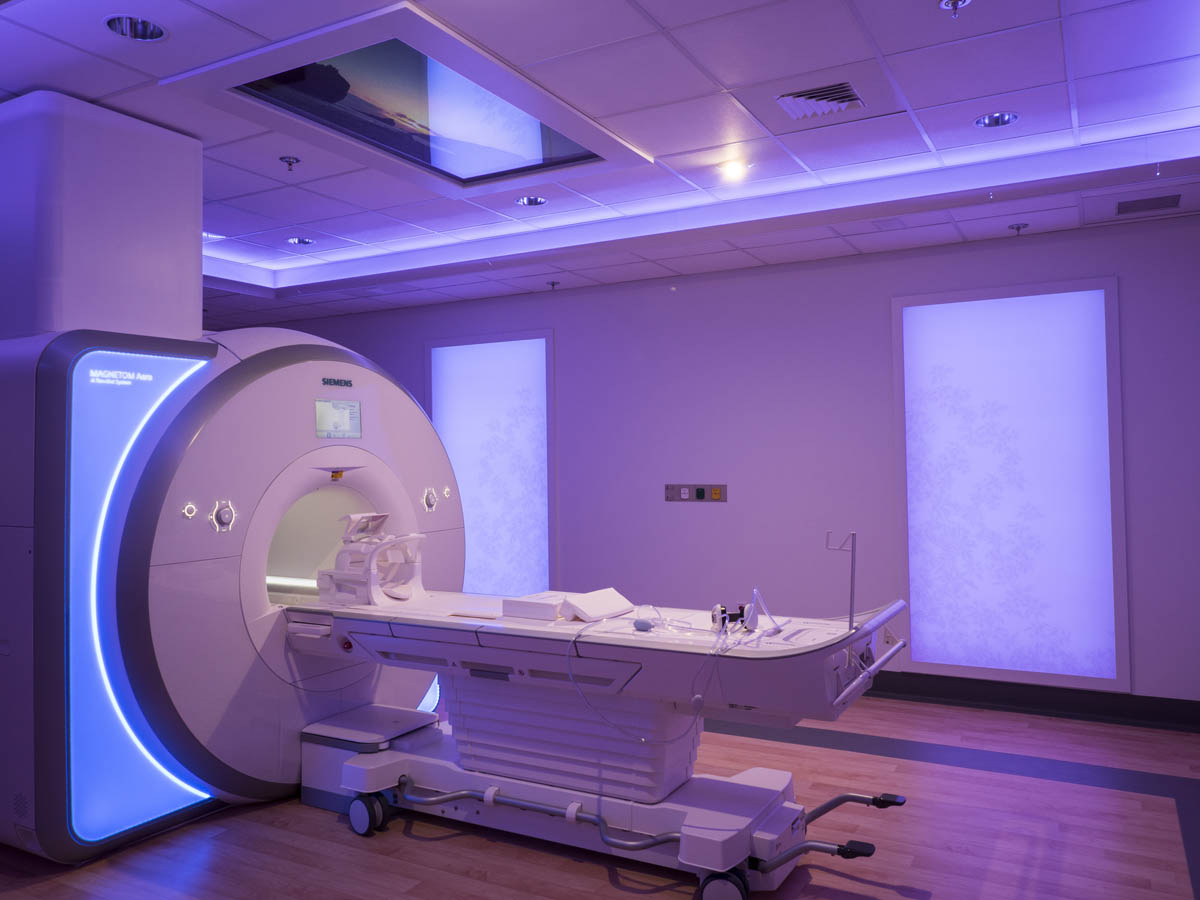

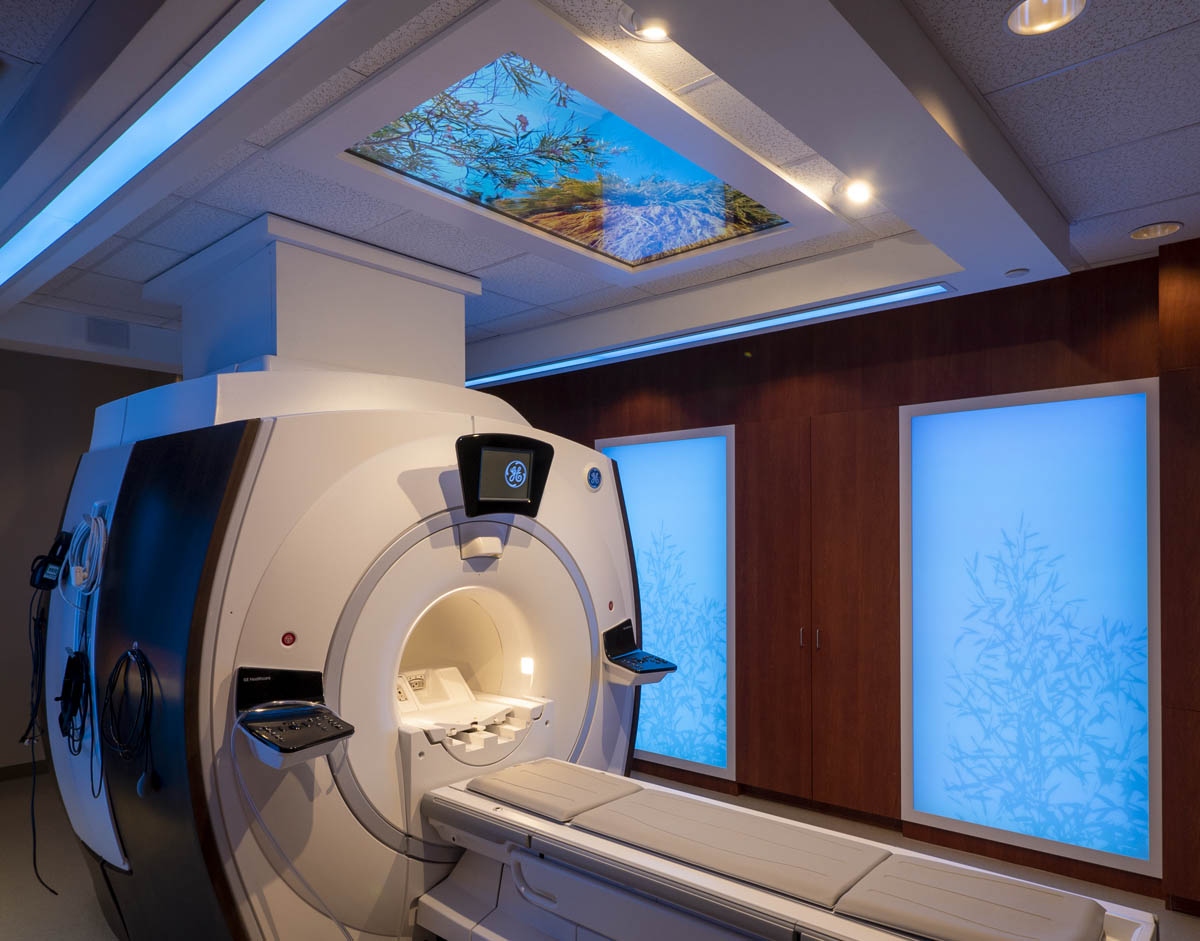

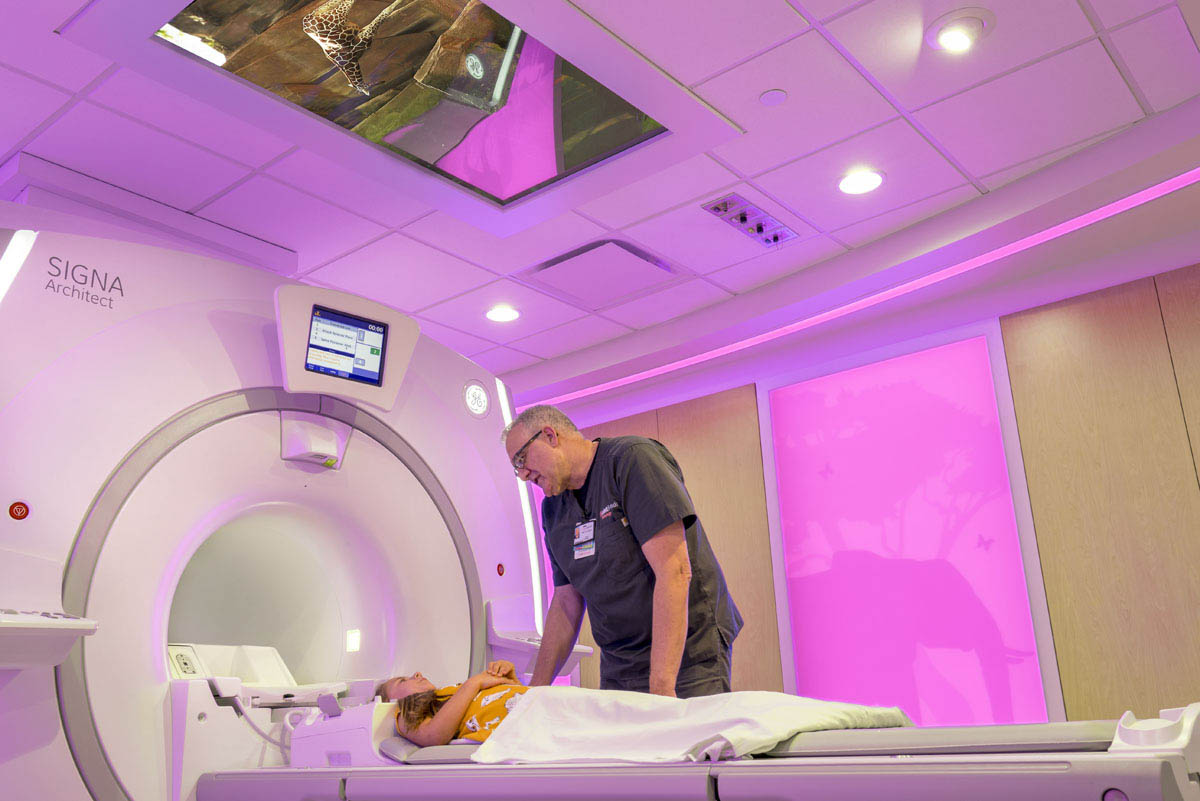

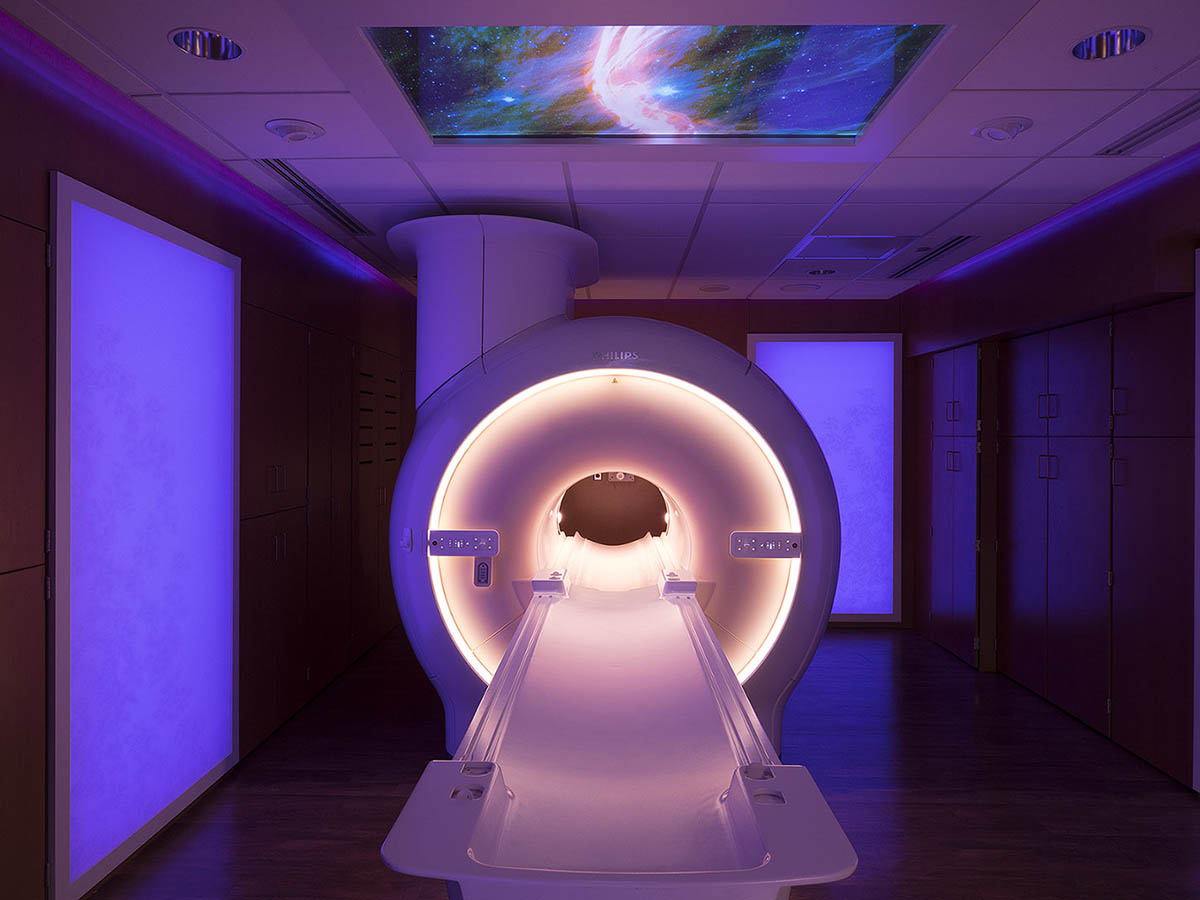

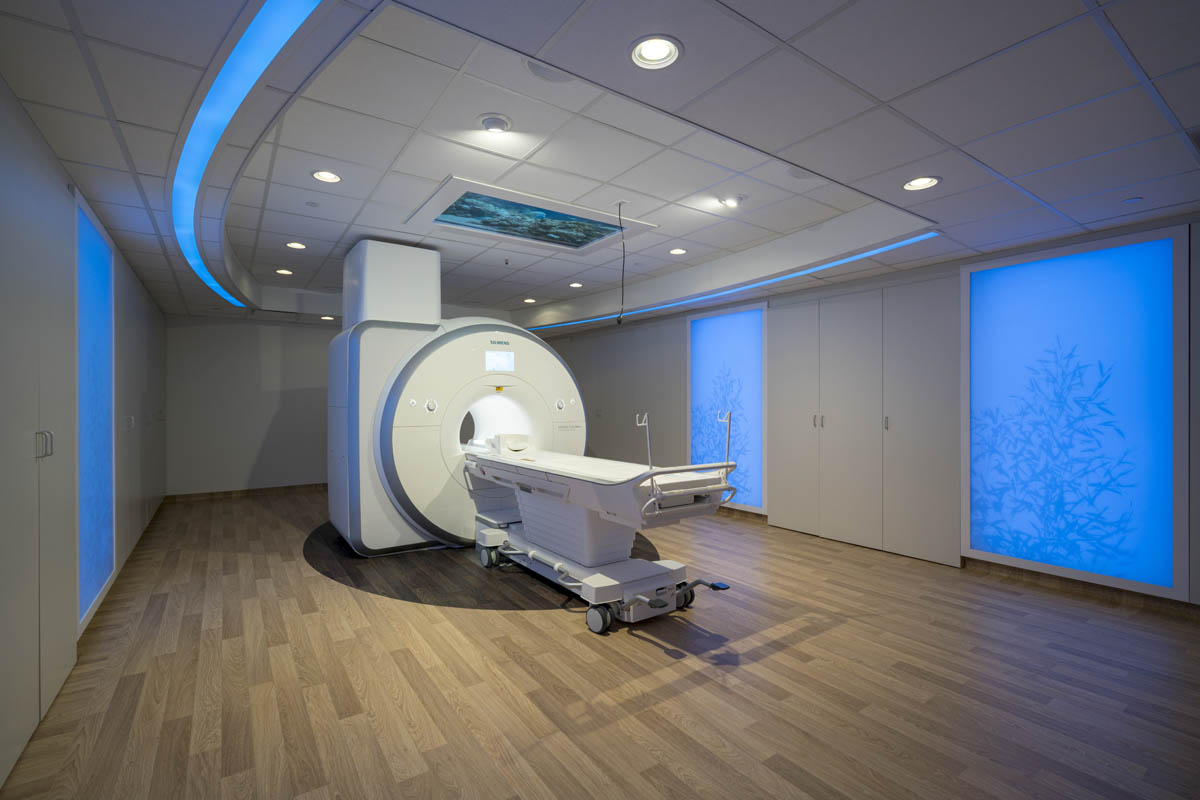

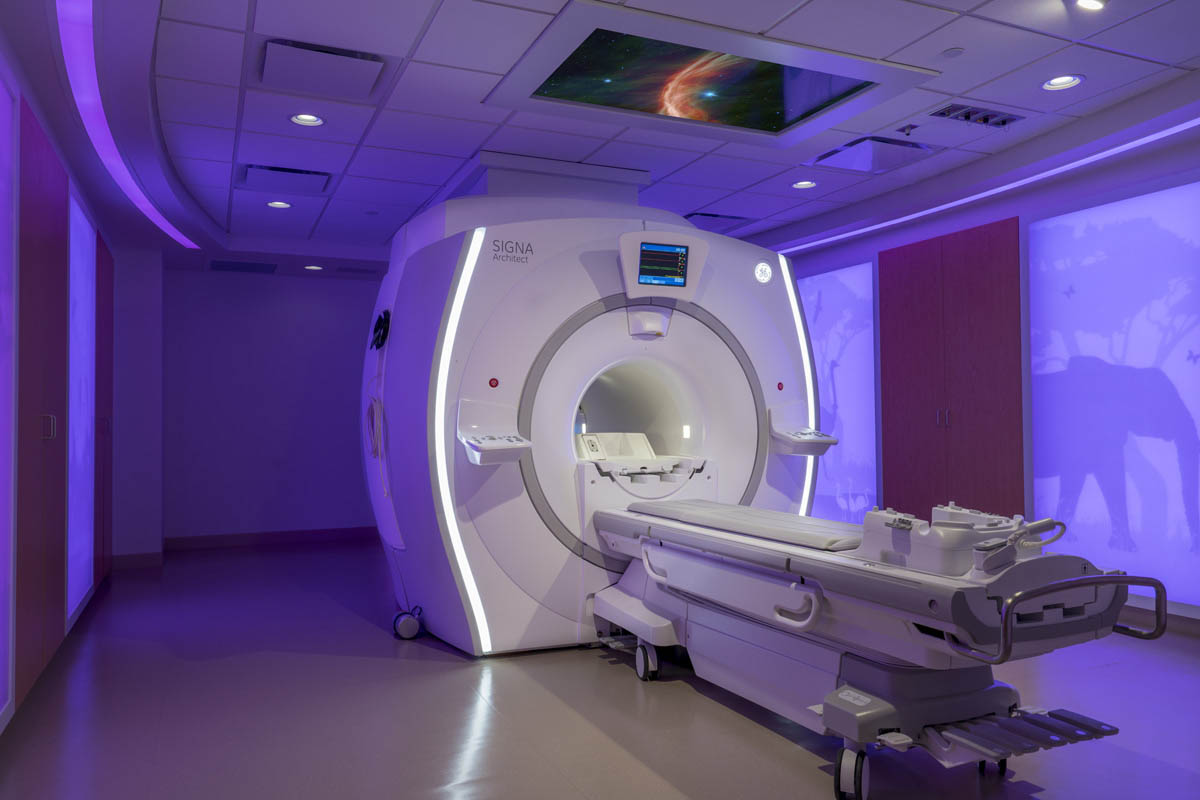

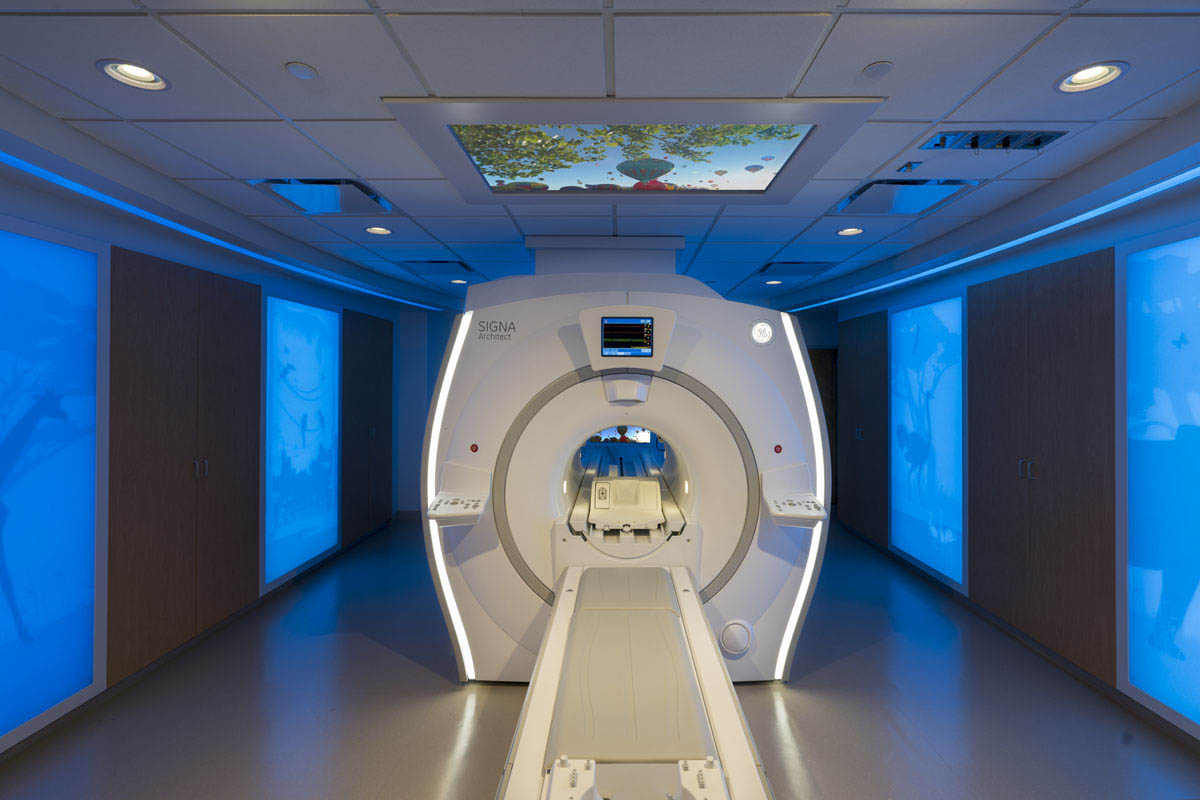

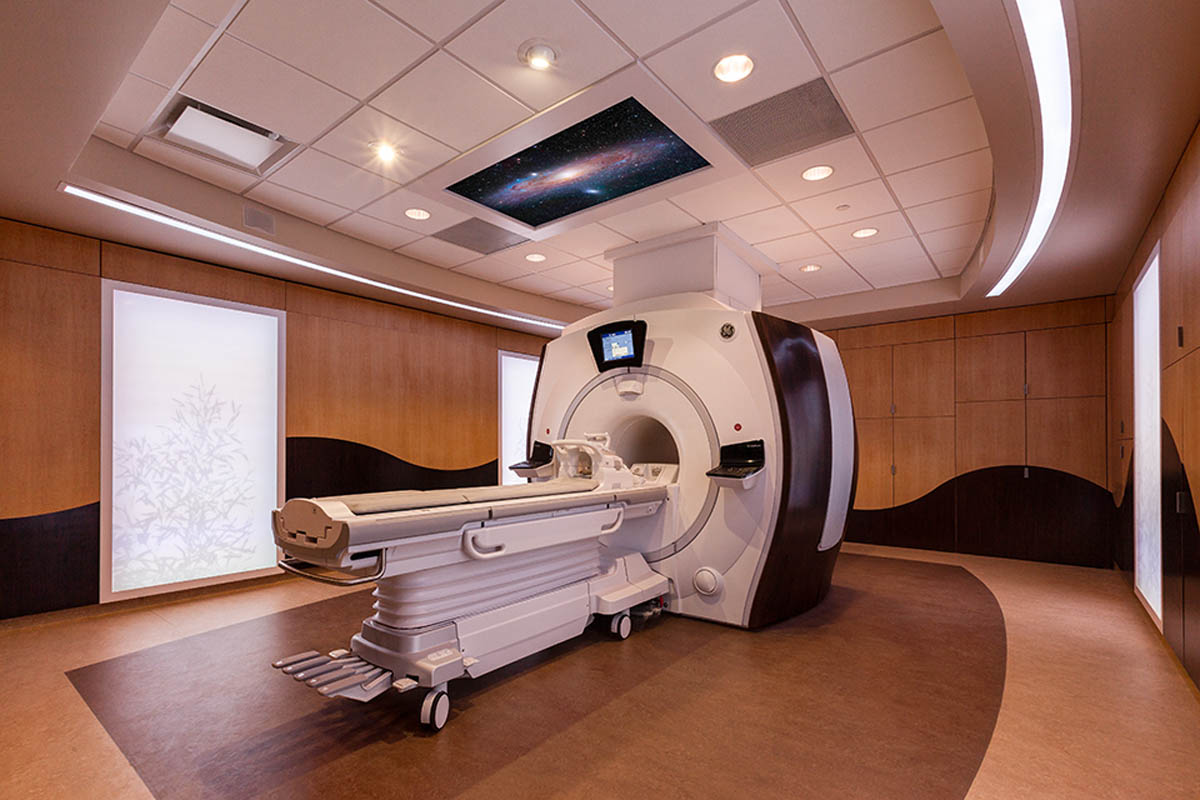

White and RGB color changing wall fixtures personalize your space and offer a visual distraction to ease patient anxiety in the MRI environment.
Description
Soft White and RGB Illuminated wall fixtures bring additional light and warmth to your MRI suite. This LED lighting system provides uniform light diffusion through a textured lens and applied artwork image graphics to breathe life into the MRI environment. All components are pre-engineered for easy installation. Choose from our library of image graphics or create your own custom design.
Features
Specifications
Installation
- Direct Wall Attachment Tabs
Dimensions (Fixture)
- 88.5" x 22.5"
Dimensions (Trim)
- 90" x 24"
Drywall Rough Opening
- 89" x 23"
Fixture Weight
- < 100 Lbs
Input Voltage
- 12 Vdc
Input Current
- 4.48 A
Input Power
- 54 W
BTU
- 184 BTU/hr
IP
- 25 - Dry Location
Listed
- UL 2108
- CSA C22.2#250.0
RoHS
- Pending - 2011/65/EU
Storage Temperature
- -40˚C / 85˚C
Operating Temperature
- -20˚C / 35˚C
Humidity
- 5 % / 95 %
Lifespan
- 50,000 Hours
Warranty
- Limited three (3) year warranty
