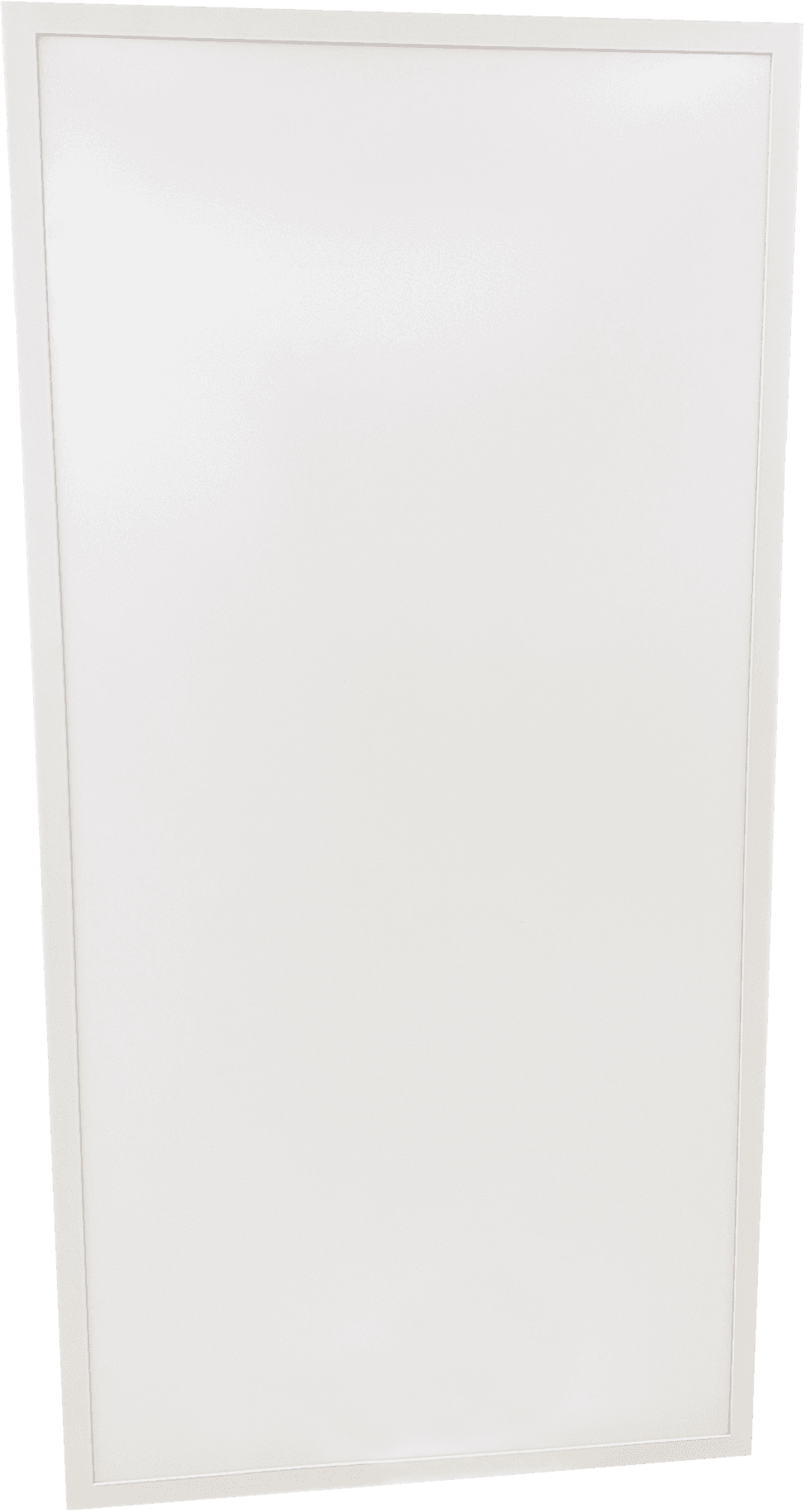

2' x 4'
Light Panel
MRI Series
Amico’s 2x4 LED Light Panel is specifically designed for the MRI space and offers general ambient lighting to support clinicians and improve patient comfort.
Description
Amico’s 2’ x 4’ LED Light Panel is a non-ferrous, LED Light Panel for use within a ceiling grid for general lighting. Designed specifically for use in MRI scan rooms, and contains no on-board electronics and therefore will not interfere with MRI imaging. Certified to meet MRI vendor EMI requirements. MRI applications require EMI free emissions for specific frequency bands. All drive circuitry employs linear regulation and no pulse width modulation (PWM*).
Specifications
Input Voltage
- 36 Vdc
Input Current
- 1.1 A
Input Power
- 40 W
Heat
- 136 BTU/hr
Overall Dimensions
- 23.7" x 47.5"
Electrical Connection
- Ethernet
Fixture Weight
- 10 lbs
Regulatory Compliance
- Listed - UL 1598 CSA C22.2 No. 250
CE
- Certified - 2014/30/EU
RoHS
- Pending - 2011/65/EU
Storage Temperature
- Minimum -40 °C
- Typical 25 °C
- Maximum 85 °C
Operating Temperature
- Minimum -20 °C
- Typical 25 °C
- Maximum 35 °C
Humidity
- Minimum 5 %
- Maximum 95 %
Warranty
- 5 Years
Photometric
- CCT- 1-07-000383: 5000 k
- CCT- 1-07-000384: 4000 k
- CCT- 1-07-000385: 3500 k
- CCT- 1-07-000386: 5000 k
- CRI 80
- Efficacy 120 lm/W
