Description

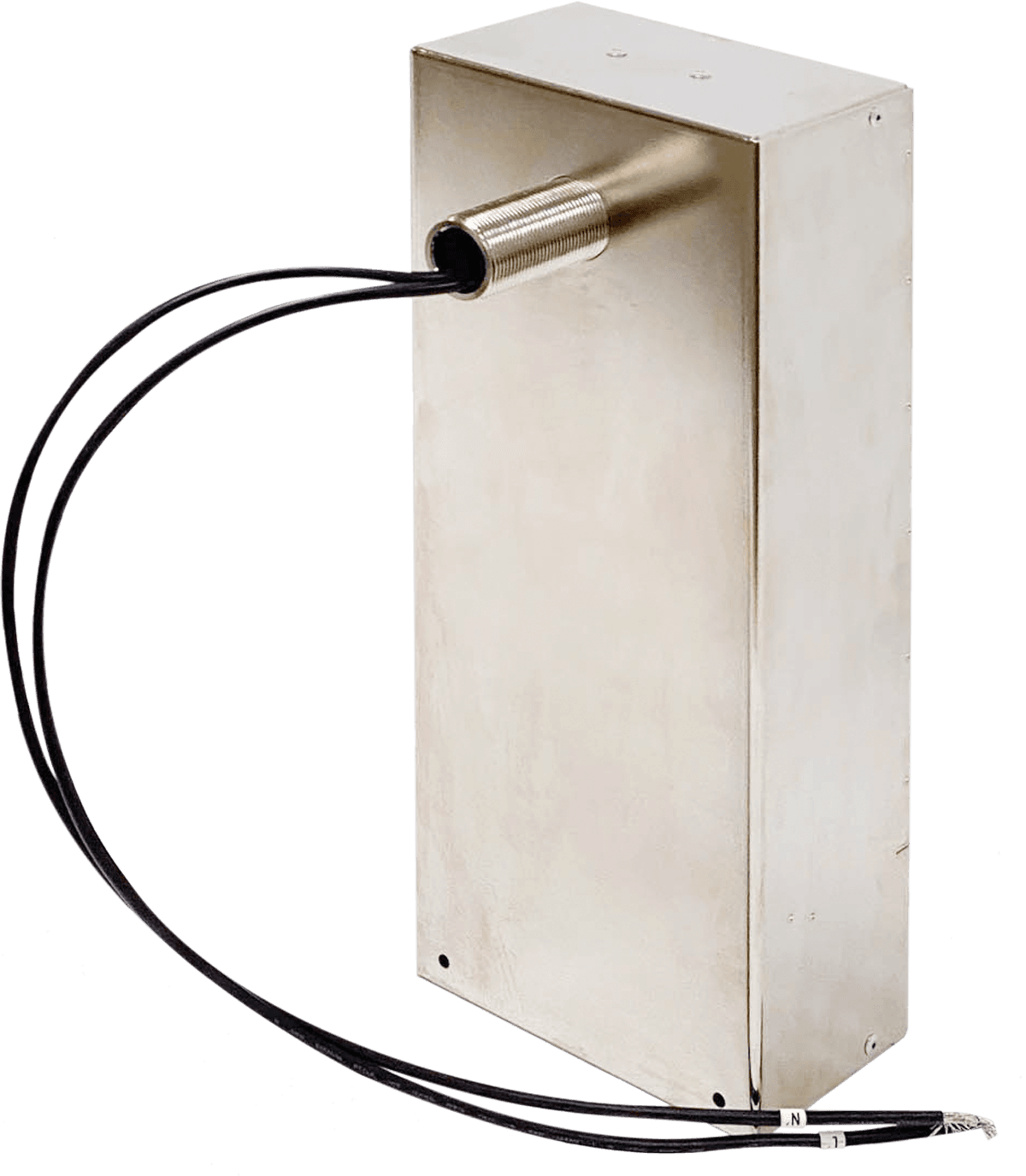

The RF Filter has a high self-resonant frequency with self-healing dielectric, explicitly designed for Amico's MRI suite applications. Its small compact design allows complete suite filtering with a single shield penetration, significantly freeing up space. Available with up to 8 filtered connection points.
Specifications
Male Threaded Adapter
- 1 in x 2 in (25.4 mm x 50.5 mm)
Thread Torque
- 1.0 / 1.2 Nm
Product Weight
- 2.0 / 5.9 Lbs
Construction
- Welded Aluminum/Stainless Steel
Thread
- 3/4 NPS
Leads
- 2
Rated Current
- 30 A @ 50°C
Rated Voltage
- 250 Vdc
Leakage Current
- 2 x 188 mA
Frequency
- 0 / 60 Hz
Listed
- UL 1283
CE
- Pending
RoHS
- Pending - 2011/65/EU
Operating Temperature
- 25˚C / 40˚C
Humidity
- 20 % / 80 %
Warranty
- Limited three (3) year warranty
