Description

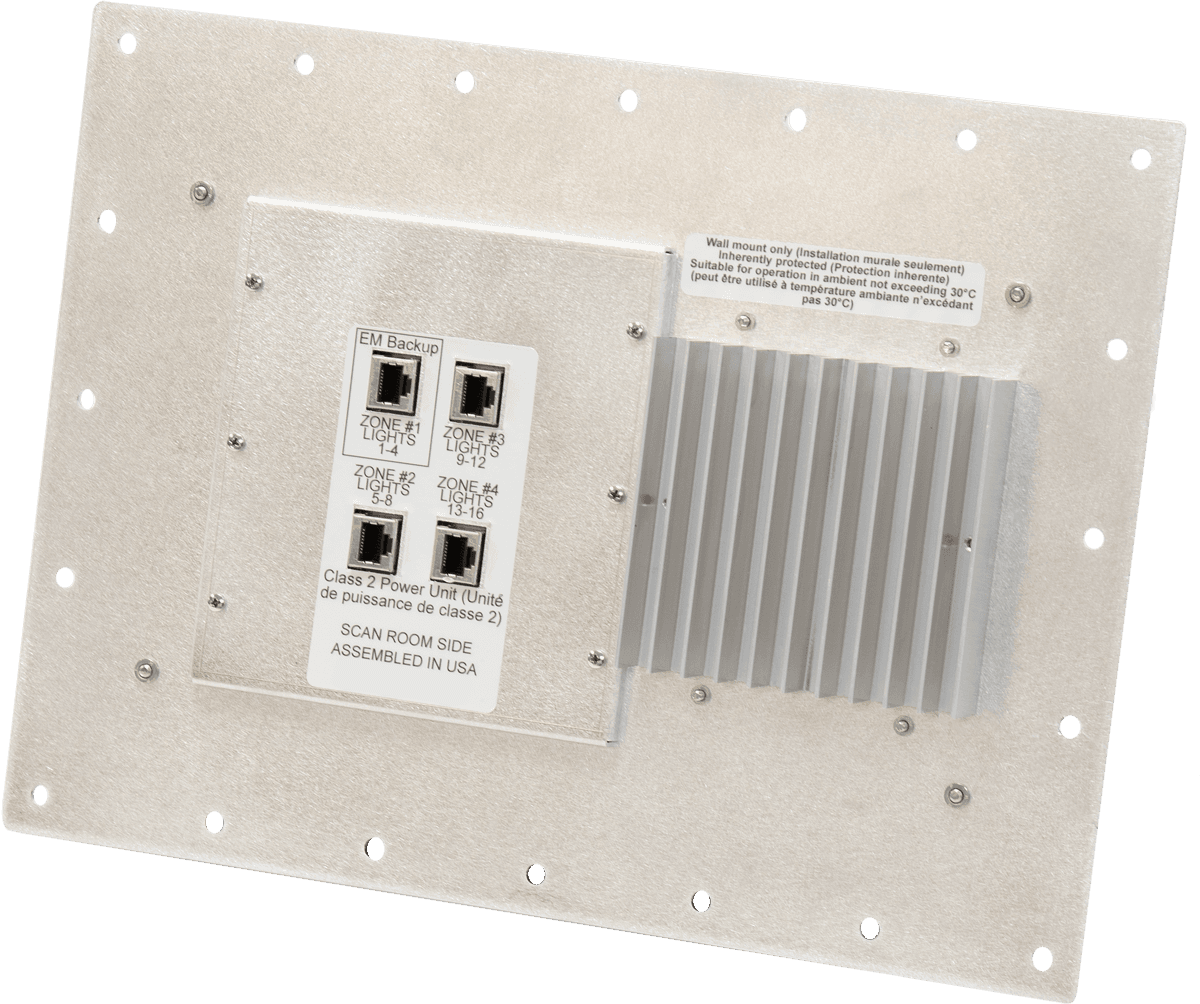

The Multichannel Lighting Controller is a constant current LED Power Supply designed specifically for MRI Suites. This supply significantly frees up space near the penetration panel by combining DC power supply, linear constant current drivers, and filter into one convenient device while still providing 100+dB of shielding effectiveness. This compact power supply fully integrates with all required filters for MRI applications and offers power for up to four independent lighting zones. Each of the 16 outputs are UL1310 Class 2 rated. All drive circuitry employs linear regulation and no pulse width modulation (PWM*).
Specifications
Overall Dimensions
- 10" x 13.5" x 5.875"
Construction
- Aluminum / Stainless Steel
Product Weight
- 12 Lbs
Input Power
- 110 / 240 Vac
- 50/60 Hz
- 4.9 A
- 360 W
BTU
- 375 BTU/hr
Power Factor at 120 Vac / 230 Vac Input
- 0.9 / 0.95
Inrush Current at 120 Vac / 230 Vac Input
- 20 / 40 A
Output Power
- 12 / 42 Vdc (Per Channel)
- 29.4 W (Per Channel)
- 700 mA (Per Channel)
Ripple Current
- 10% (Per Channel)
Outrush Current
- 1.8 A (Per Channel)
Input/Output Efficiency
- 82% (Per Channel)
Open Circuit Output Voltage
- 42 Vdc (Per Channel)
Bleed Off Time
- 1000 ms (Per Channel)
Output Rise Time
- 500 ms (Per Channel)
Dim Voltage
- 1 / 8 Vdc
Dim Value
- 1 / 100 % of Rated Current
Dim Source
- 150 μA
Listed
- UL 2018
- CSA 22.2#250.2
- IEC 61347-2
RF Shielding Effectiveness
- 100 db
Temperature
- Operating: 0˚C / 40˚C
- Ambient: 0˚C / 30˚C
Humidity
- 20 % / 80 %
Warranty
- Limited three (3) year warranty
