6 Ft

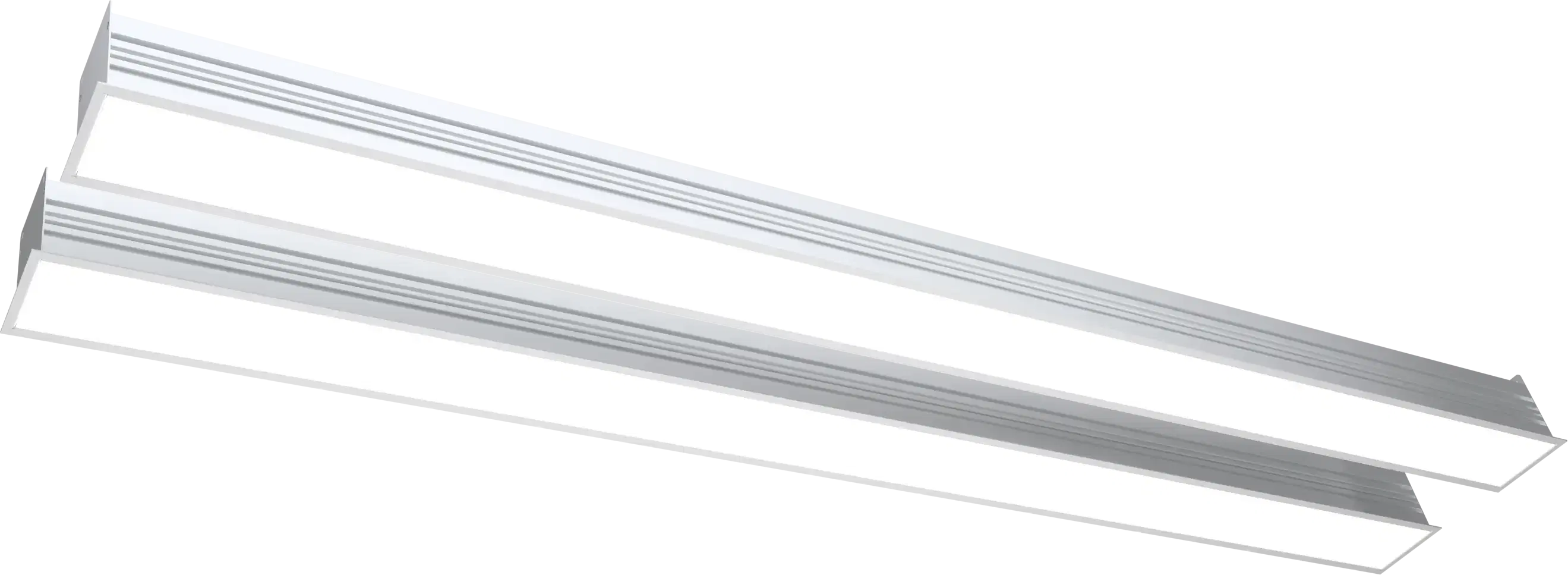

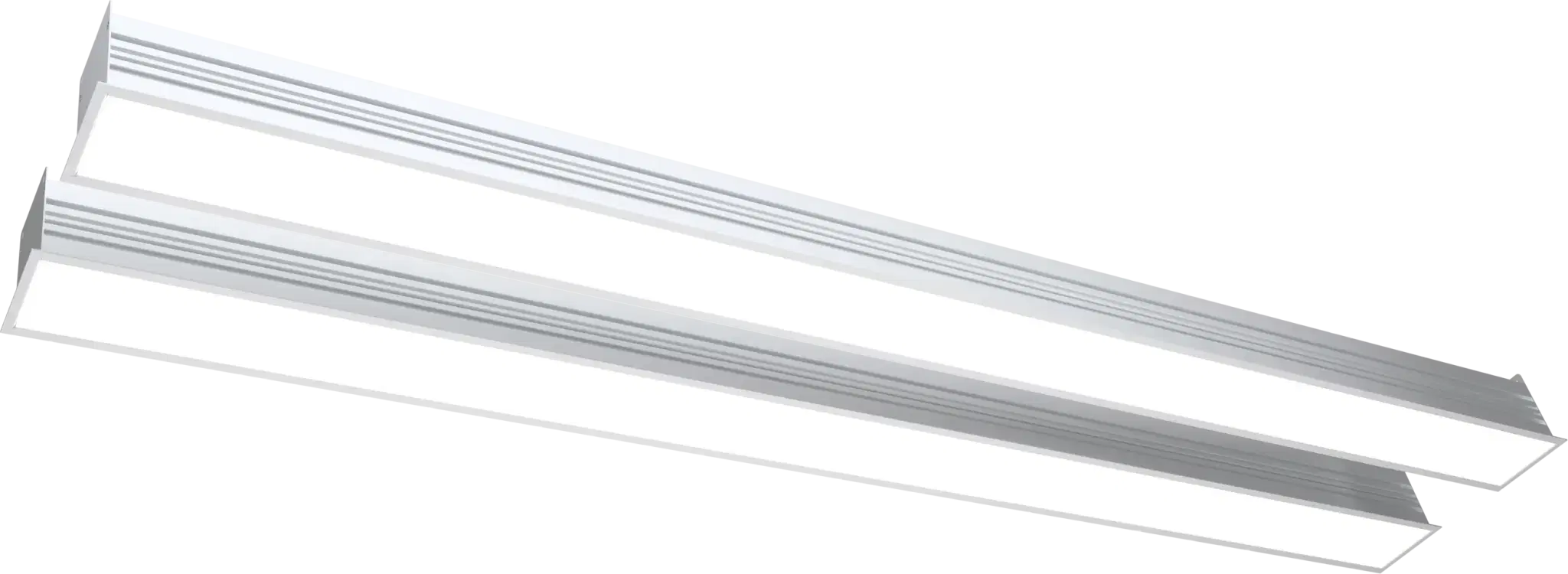

Linea LED Light
Linea Series
The Linea’s simplistic design elevates the patient room aesthetic while delivering the superior lighting performance needed in the complex environment.
Description
The Linea LED light fixture brings simplicity to the patient room without sacrificing performance or functionality. The multifunctional luminaire offers reading, ambient and exam functionalities in a slim and sophisticated design that brings home-like comfort to the patient room environment. Engineered with the latest LED technology, the Linea delivers shadow-free illumination to facilitate healing and support clinicians with reliable and consistent performance.
Features
Specifications
MacAdam Step
- Three (3) step MacAdam variation
Voltage
- 120 - 277 Volts
Standard Wattage (6 ft)
- Reading: 10 W
- Ambient: 45 W
- Exam: 88 W
- Total: 143 W
- Total Pair: 286 W
High Wattage (6ft)
- Reading: 15 W
- Ambient: 59 W
- Exam: 116 W
- Total: 190 W
- Total Pair: 380 W
Standard Light Output (6 ft)
- Reading 763 LMS
- Ambient: 4,307 LMS
- Exam: 8,479 LMS
- Total: 13,303 LMS
- Total Pair: 26,606 LMS
High Light Output (6 ft)
- Reading: 1,145 LMS
- Ambient: 5,743 LMS
- Exam: 11,305 LMS
- Total: 17,737 LMS
- Total Pair: 35,474 LMS
Dimming Options
- 0 - 10 Volts
- Standard 1% dimming
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI option
Standard Color Temperature
- 3500K
- 4000K
- Contact factory for additional options
Life of LEDs
- L70 > 100,000 hours
Listings
- Certified to UL standards by ETL
- Conforms to CSA standards as per ETL testing
Warranty
- Limited five (5) year warranty
Housing
- Marine grade aluminum extrusion
Finish
- Clear anodized finish
Lens
- One-piece continuous diffused lens system, fully enclosed with snap-in feature
Light Source
- Samsung LED mounted to aluminum core linear board
Drivers
- High power factor constant current
- 0.97 pf @ 120V (Class 2, Class II)
