Low Voltage Controller with Dimming
LightMaster Series

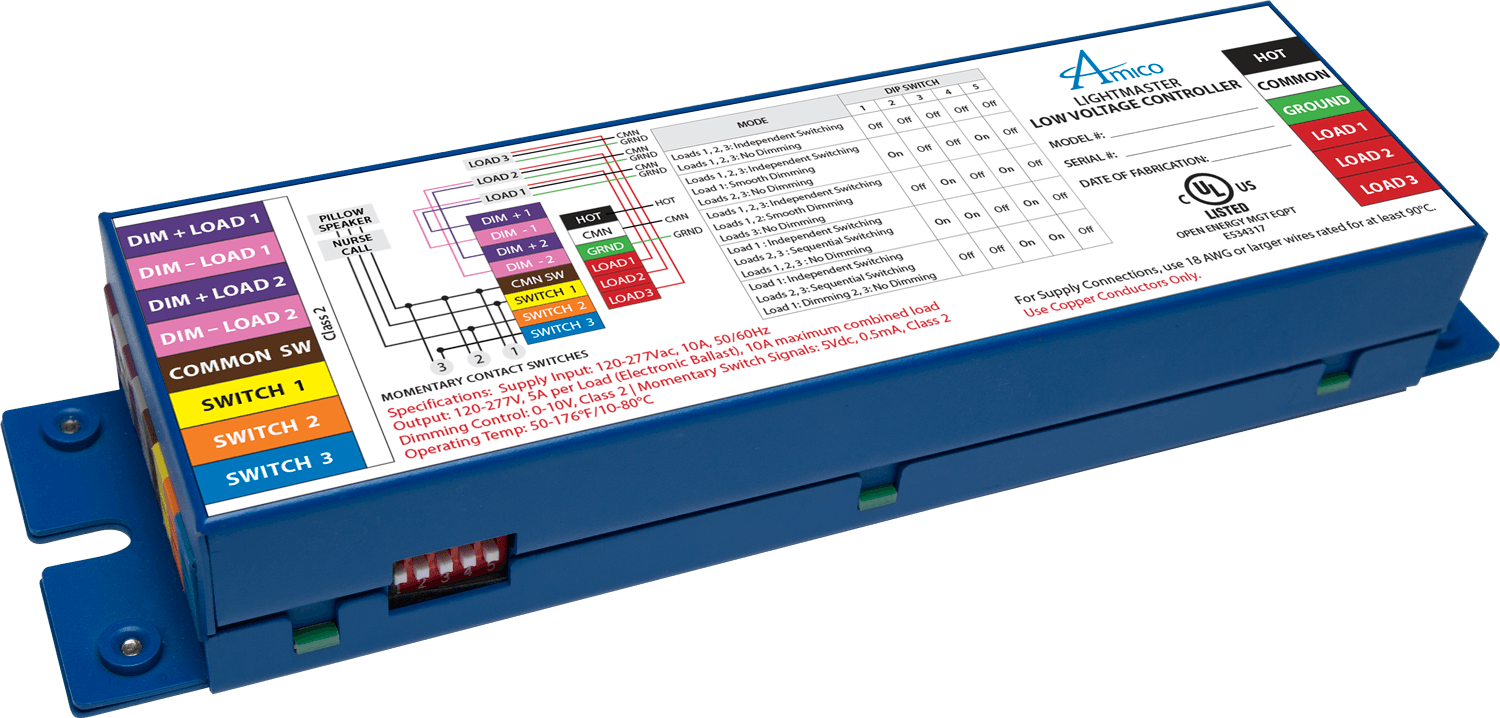

The LightMaster Low Voltage Controller allows users to operate high voltage lights found in healthcare facilities using a low voltage device such as a keypad or pillow speaker.
Description
The LightMaster Low Voltage Controller is designed to allow users to operate high voltage lights found in healthcare facilities using a low voltage device such as a keypad or pillow speaker. The LightMaster Low Voltage Controller can be used and is compatible with all nurse call systems and low voltage momentary contact switches.
Features
Specifications
Supply Input
- 120 - 277 Vac
- 10A
- 50/60Hz
Output
- 120 - 277 Vac
- 5A Per Load
- 10A Max Combined Load
Dimming Control
- 0 - 10V
- Class 2
Operating Temperature
- 50°F to 176°F (10°C to 80°C)
Momentary Switch Signals
- 5 VDC
- 0.5 mA
- Class 2
Dimensions
- Length: 7"
- Width: 2"
- Height: 1.25"
Surge Protection
- Tested to IEC 61000-4-2 electrostatic discharge immunity
- IEC 61000-4-4 fast transient/burst immunity
- IEC 61000-4-5 surge immunity
Listings
- UL Listed as per UL 916
- CSA C22.2 No. 205-17
Warranty
- Limited five (5) year warranty
