This SSM Monitor Arm provides fully adjustable tilt and pivot options. The swivel arm offers lateral functionality together and can be mounted directly to any equipment rail or wall channel.
Specifications
Specifications
- 4.5" (11.4 cm) profile
- 30 lbs (13.6 kg) single arm rating
- 15 lbs (6.8 kg) dual arm rating
- VESA 75/100 plates included
- Available in 9" (22.9 cm) and 12" (30.5 cm) single extension sizes (30 lbs [13.6 kg] max per arm)
- Available in 9" x 9" (22.9 cm x 22.9 cm) and 12" x 12" (30.5 cm x 30.5 cm) double extension sizes (15 lbs [6.8 kg] max per arm)
General Features
General Features
- Compatible with various patient monitors and LCD screens
- Swivel arm provides lateral functionality
- Tilt and swivel adjustments
- 30 lbs (13.6 kg) single arm rating
- 15 lbs (6.8 kg) dual arm rating
- Integrated cable management
SSM Arm Options
SSM Arm Options

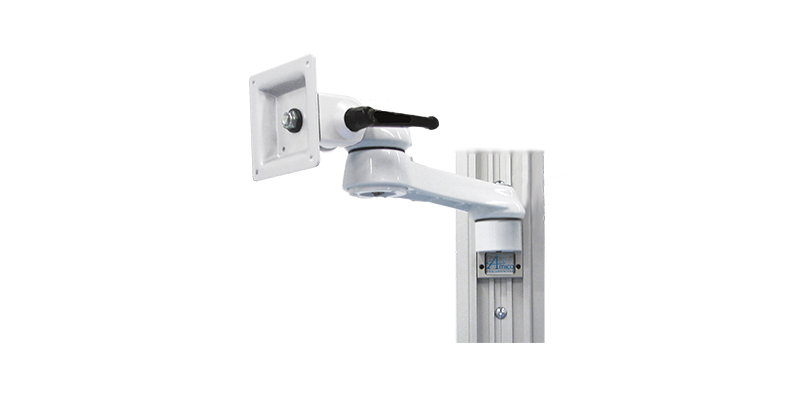

Pivot Arms SSM 9" (22.9 cm) Single
- 12" (30.5 cm) reach
- 30 lbs (13.6 kg) max. per arm
Part Number: SSM-LCD-25

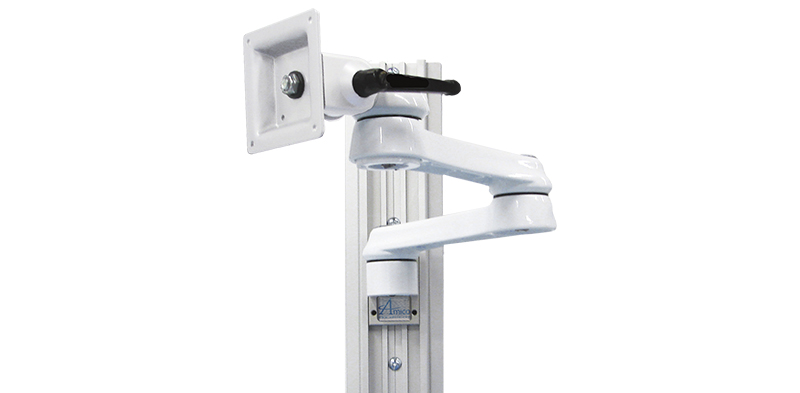

Pivot Arms SSM 9" x 9" (22.9 cm x 22.9 cm) Double
- 19" (48.3 cm) reach
- 15 lbs (6.8 kg) max. per arm
Part Number: SSM-LCD-35

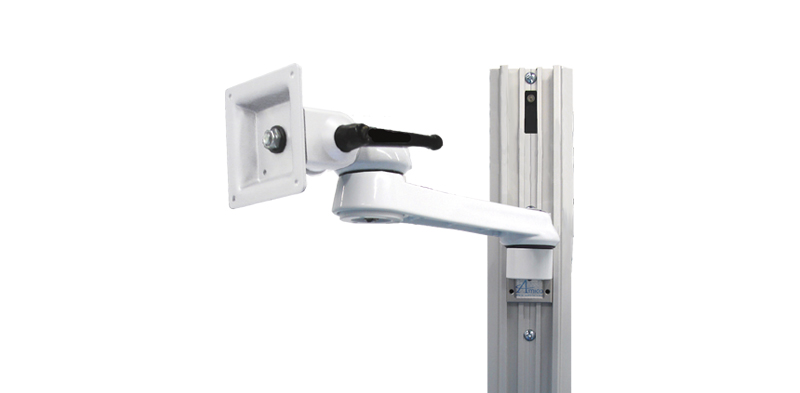

Pivot Arms LCD SSM 12" (30.5 cm) Single
- 15" (38 cm) reach
- 30 lbs (13.6 kg) max. per arm
Part Number: SSM-LCD-05

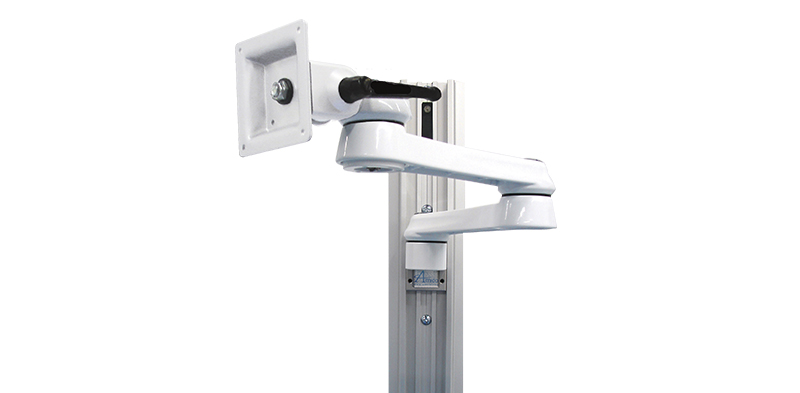

Pivot Arms LCD SSM 12" x 12" Double
- 24" (61 cm) reach
- 15 lbs (6.8 kg) max. per arm
Part Number: SSM-LCD-15
Monitor Arm Accessories
Monitor Arm Accessories
Power Bar
- Hospital grade, 4 power outlets
- 120 VAC, 60Hz
Part Number: POWERBAR4-MON
Power Holder
- Holds most power adapters for PCs, patient monitors and LCDs
Part Number: PWRHLD-MON
Cord Hooks
- Manage cables, cords and other hanging wires
- Attach to the bottom of any monitor arm or below/in between a downpost on a monitor arm.
Part Number (2 hooks): CRDHLDR
Part Number (4 hooks): CRDHLDR2
Barcode Scanner Holder
- Universal Barcode Scanner Holder
Call for part number
Barcode Dock Mount
- Accommodates a variety of barcode scanner bases and has been tested with a wide variety of charging bases.
Part Numbers: BARCDHLD2-(X) and BARCDHLD2-LCD
LCD Handle
- Ergonomic handles can be added to any Amico LCD mount
- Knuckle guard protects walls and user’s hands
Part Number: MON-LCD-HANDLE
Cord Wrap
- Ideal for Managing Wires and Cords
Part Number: CORDWRAP
Monitor Channel
- Standard wall channel 19" (48.3cm)
- Seismic options are available
- Custom lengths are welcome
Part Number: MRS-019
Channel Covers
- Easy way to hide wires
- Available in patterns and colors to match any décor
Call for part number
Monitor Handle
- Easy Grab Handle
Part Number: AHM-HAND-00
Storage Baskets
- 10" W x 10" D x 4" H (25.4 cm x 25.4 cm x 10.2 cm)
- White wire basket
- All baskets can be sterilized
Part Number: 101004-MON-BB
Storage Baskets
- 10" x 6" x 9" (25.4 cm x 15.2 cm x 22.9 cm)
- White wire basket
- All baskets can be sterilized
Part No: 100609-MON-BB
Storage Baskets
- 13" x 9" x 7" (33 cm x 22.9 cm x 17.8 cm)
- White wire basket
- All baskets can be sterilized
Part No: 130907-MON-BB
Storage Baskets
- 13" x 9" x 7" (33 cm x 22.9 cm x 17.8 cm)
- White wire basket
- All baskets can be sterilized
Part No: CUFBASK-MON
