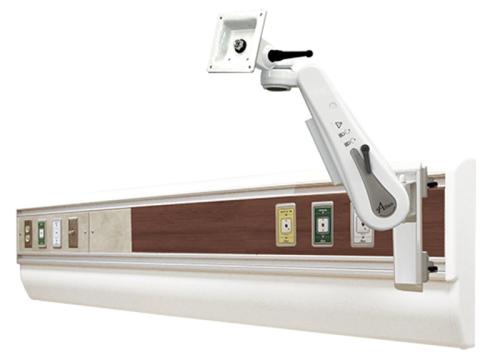

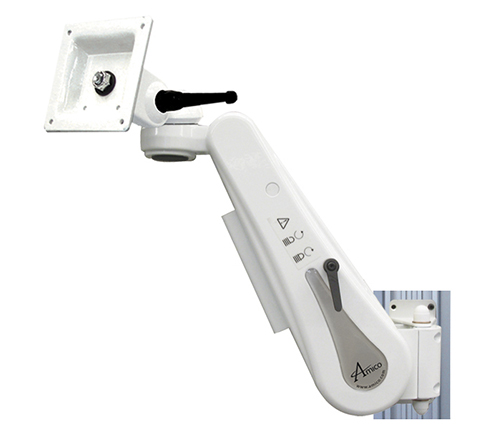

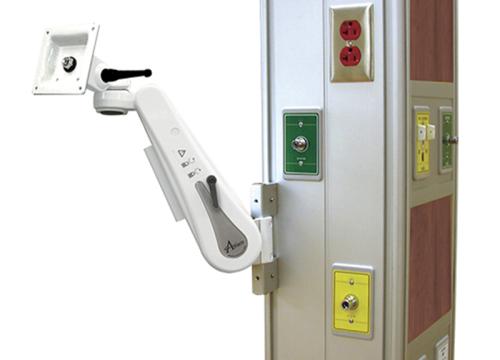

The Adjustable Height LCD Arms can be mounted directly to any equipment rail or wall channel. Parallel linkage provides consistent viewing angle at any position.
OSHPD Approval: OPM-0271-13
Specifications
Specifications
- Overall Length: 18" - 34" (45.7 cm - 86.3 cm)
- 40 lbs (18.1 kg) arm rating
- VESA 75/100 plates included
- Portrait and landscape viewing
General Features
General Features

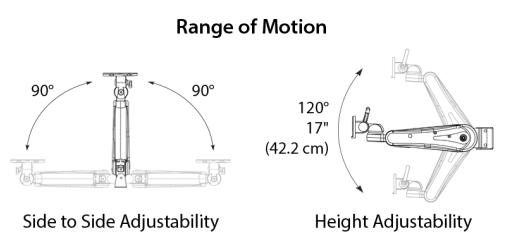

- 180° side to side motion
- Ability to lock arm in any position
- Can be mounted directly to any equipment rail or wall channel
- Integrated cable management
- Color options av ailable (white is standard)
- Parallel linkage provides consistent viewing angle at any position
- Handle for easy tilt adjustment - no tools required
- Internal gas spring provides counterbalance
- Durable, aluminum body
- Quick release pin for single hand monitor removal
Optional Extensions
Optional Extensions

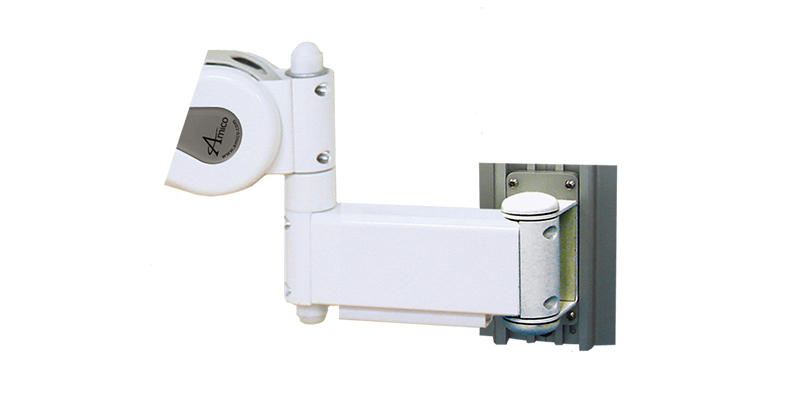

6" (15.2 cm) Extension
- 24" (61 cm) reach
Part Number: AHM-LCD-7F

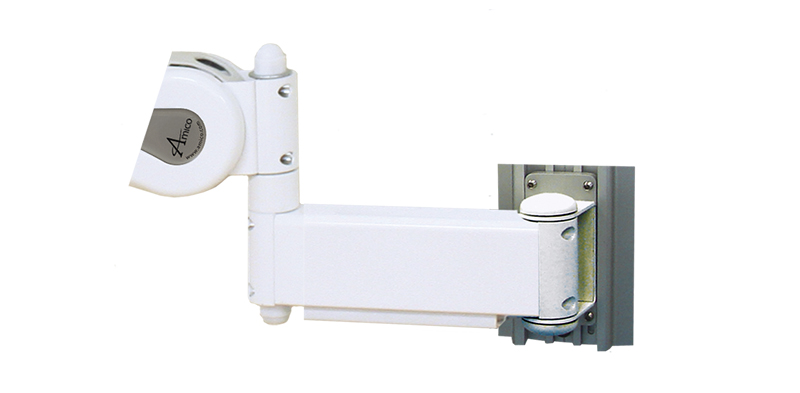

9" (22.9 cm) Extension
- 27" (68.6 cm) reach
Part Number: AHM-LCD-3F

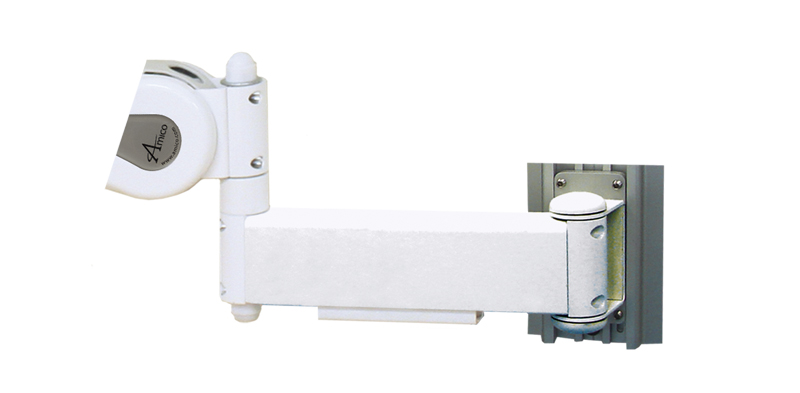

12" (30.5 cm) Extension
- 30" (76.2 cm) reach
Part Number: AHM-LCD-1F

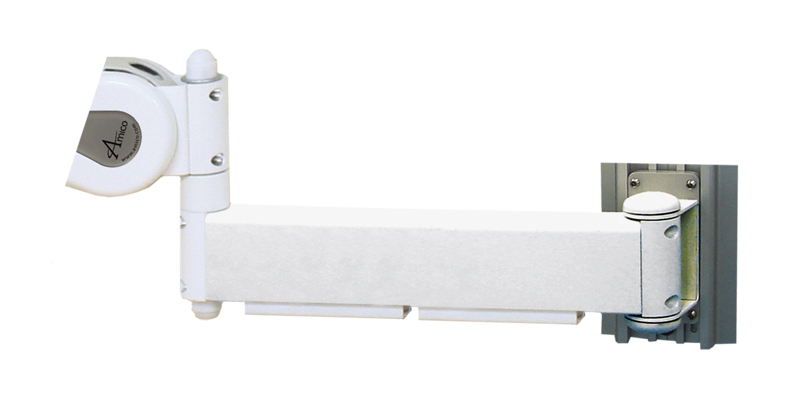

16" (40.6 cm) Extension
- 34" (86.3 cm) reach
Part Number: AHM-LCD-5F
Monitor Arm Accessories
Monitor Arm Accessories
Power Bar
- Hospital grade, 4 power outlets
- 120 VAC, 60Hz
Part Number: POWERBAR4-MON
Power Holder
- Holds most power adapters for PCs, patient monitors and LCDs
Part Number: PWRHLD-MON
Cord Hooks
- Manage cables, cords and other hanging wires
- Attach to the bottom of any monitor arm or below/in between a downpost on a monitor arm.
Part Number (2 hooks): CRDHLDR
Part Number (4 hooks): CRDHLDR2
Barcode Scanner Holder
- Universal Barcode Scanner Holder
Call for part number
Barcode Dock Mount
- Accommodates a variety of barcode scanner bases and has been tested with a wide variety of charging bases.
Part Numbers: BARCDHLD2-(X) and BARCDHLD2-LCD
LCD Handle
- Ergonomic handles can be added to any Amico LCD mount
- Knuckle guard protects walls and user’s hands
Part Number: MON-LCD-HANDLE
Cord Wrap
- Ideal for Managing Wires and Cords
Part Number: CORDWRAP
Monitor Channel
- Standard wall channel 19" (48.3cm)
- Seismic options are available
- Custom lengths are welcome
Part Number: MRS-019
Channel Covers
- Easy way to hide wires
- Available in patterns and colors to match any décor
Call for part number
Monitor Handle
- Easy Grab Handle
Part Number: AHM-HAND-00
Storage Baskets
- 10" W x 10" D x 4" H (25.4 cm x 25.4 cm x 10.2 cm)
- White wire basket
- All baskets can be sterilized
Part Number: 101004-MON-BB
Storage Baskets
- 10" x 6" x 9" (25.4 cm x 15.2 cm x 22.9 cm)
- White wire basket
- All baskets can be sterilized
Part No: 100609-MON-BB
Storage Baskets
- 13" x 9" x 7" (33 cm x 22.9 cm x 17.8 cm)
- White wire basket
- All baskets can be sterilized
Part No: 130907-MON-BB
Storage Baskets
- 13" x 9" x 7" (33 cm x 22.9 cm x 17.8 cm)
- White wire basket
- All baskets can be sterilized
Part No: CUFBASK-MON
