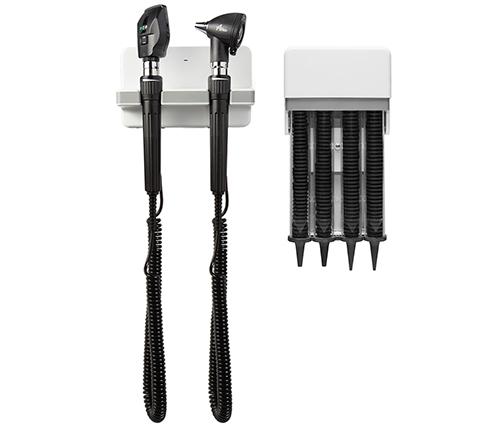

Diagnostic Station

Quality diagnostic stations, modular with add-on components including specula dispenser, aneroid, and thermometer. Available in a range of mounting options, flexibly designed to meet your exam room and workflow needs.

Features

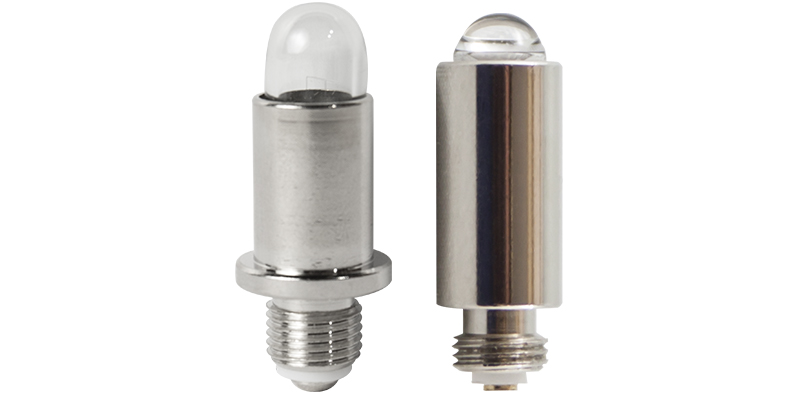

Smart Bulb System

Our technology senses the bulbs that are being used and draws delivers power accordingly. This ensures the lowest power consumption according to the specific bulb being used, but does not affect the performance of light output
Timer circuitry auto turns off power to the bulb to save on power consumption and bulb life if accidentally left on.
Automatic ON/OFF for handles independent of cradle making sure the handle being used always has power. No restrictions on use - Able to power both handles simultaneously

General Features

Modular design allows for easy customization
Equipment is antimicrobial treated to assist with infection control
Rheostat on the handle allows easy control of the light intensity
Handle’s spiral cord expands to over 10 ft (3.048 m)
Compatible with a wide variety of manufacturers’ instrument heads, bulbs, and specula
Multiple mounting possibilities to suit specific needs

Smallest Footprint in the Industry

Allows more space for other critical equipment. Ideal for small exam rooms and rail mounts.

Smart Bulb System

Our technology senses the bulbs that are being used and draws delivers power accordingly. This ensures the lowest power consumption according to the specific bulb being used, but does not affect the performance of light output
Timer circuitry auto turns off power to the bulb to save on power consumption and bulb life if accidentally left on.
Automatic ON/OFF for handles independent of cradle making sure the handle being used always has power. No restrictions on use - Able to power both handles simultaneously

Smart Bulb System

Our technology senses the bulbs that are being used and draws delivers power accordingly. This ensures the lowest power consumption according to the specific bulb being used, but does not affect the performance of light output
Timer circuitry auto turns off power to the bulb to save on power consumption and bulb life if accidentally left on.
Automatic ON/OFF for handles independent of cradle making sure the handle being used always has power. No restrictions on use - Able to power both handles simultaneously

Options

Mounting

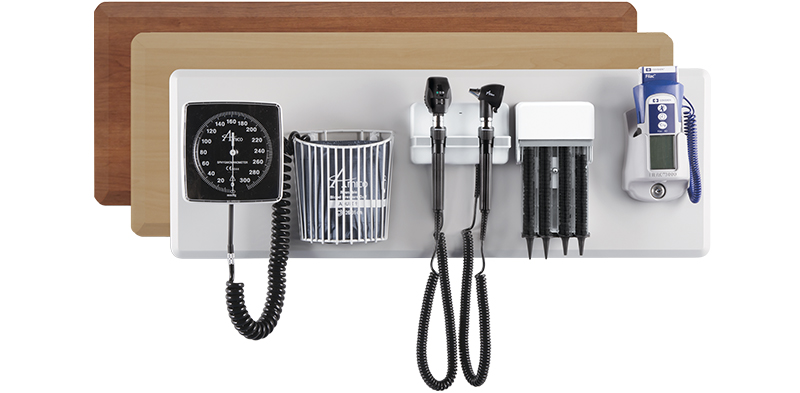

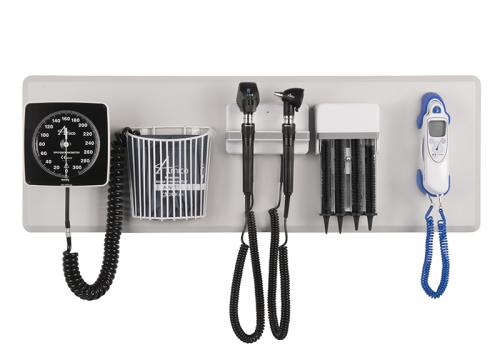

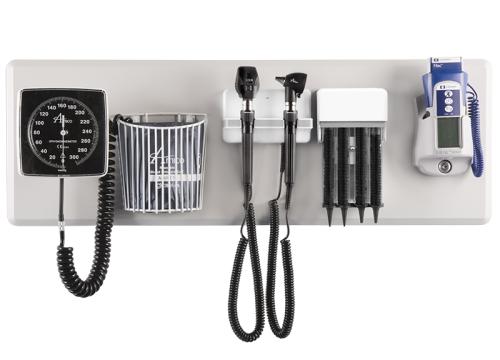

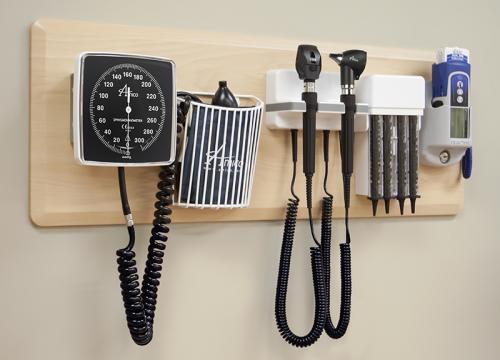

Wall Board

Pre-drilled wall board allows for simple installation of diagnostic station
Wide variety of colors and wood laminates to meet all design needs
Color can be matched to Amico Headwalls

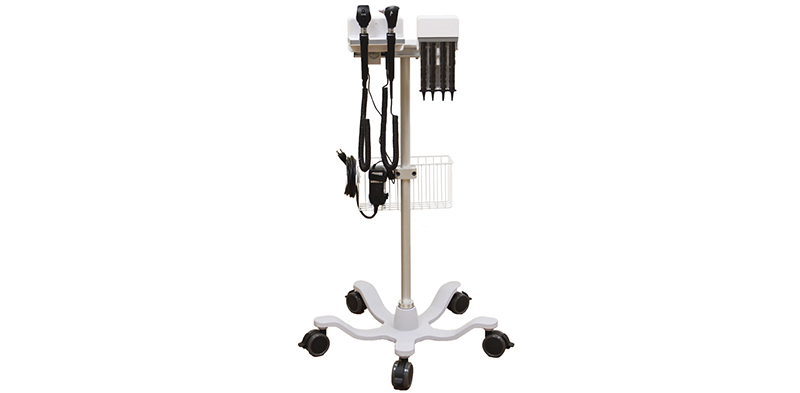

Roll Stand

Large 5 leg base for increased stability
Large basket allows for easy storage of accessories
Cord wrap for proper management of power cord
Option to accommodate dispenser, thermometer and aneroid

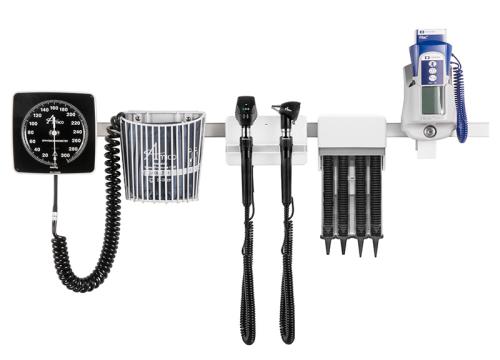

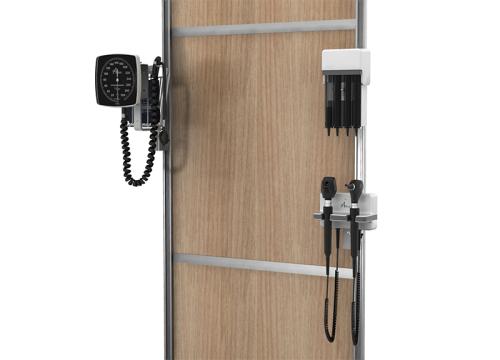

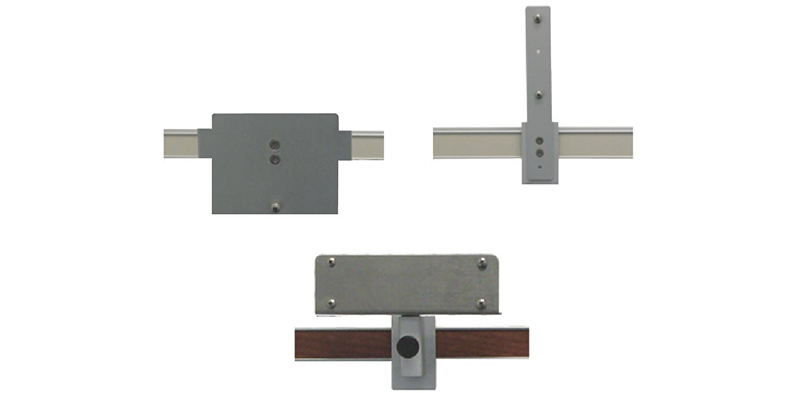

Rail Mount

More flexible positioning over traditional wall board
Equipment can be locked down or moved easily
Can be mounted on any headwall, flat wall or direct rail option

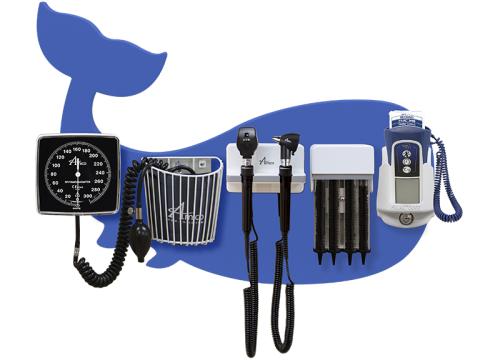

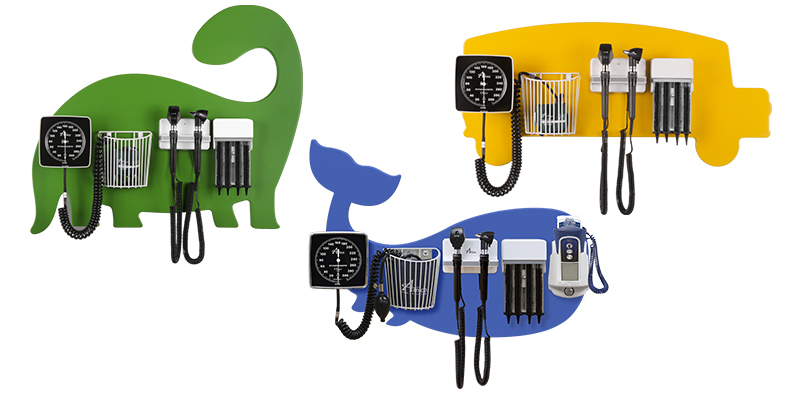

Pediatric Wall Boards

Helps to provide non-clinical ambience
Pre-drilled board with cable management behind board
Customized shapes available

Module

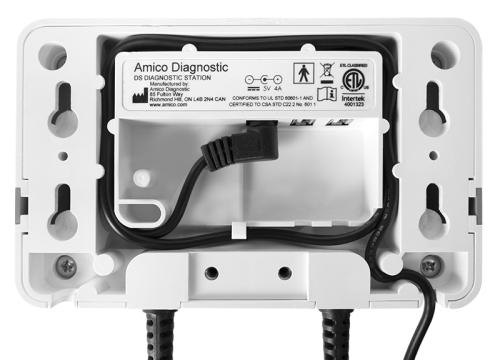

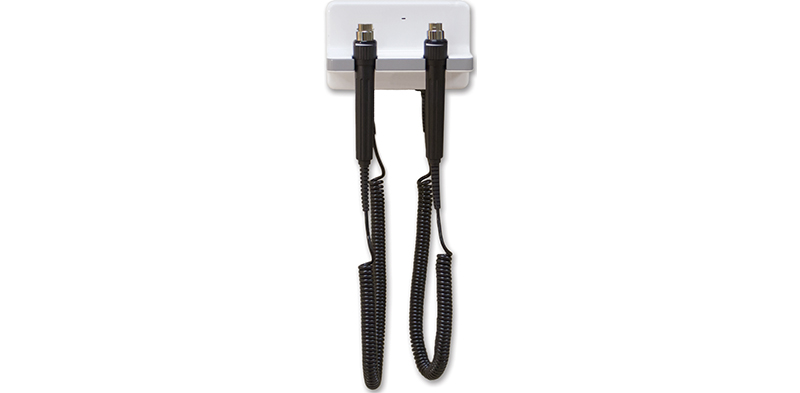

Base Station

Automatic ON/OFF independent of handle cradle
High efficiency power supply allows simultaneous instrument operation
Integrated cord wrap eliminates excess wiring
Rheostat located on handles for easy light adjustment

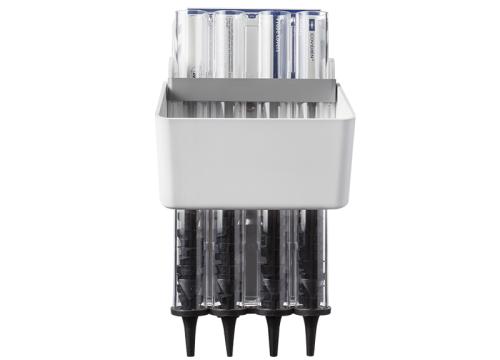

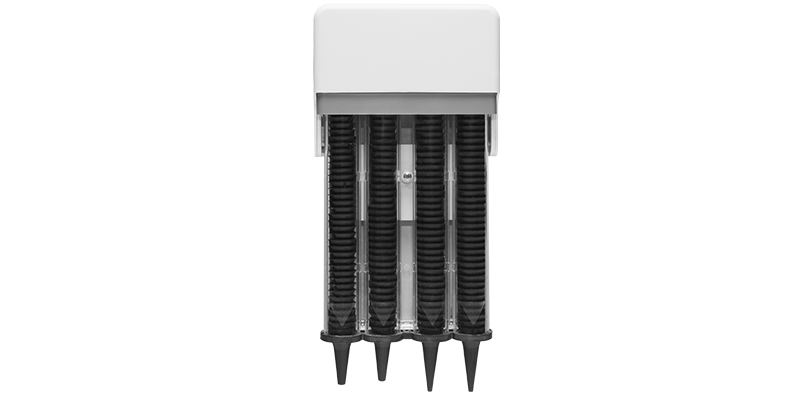

Specula Dispenser

Dispenses up to 4 specula sizes
Clear housing allows for quick inventory management
Compatible with KleenSpec specula
Deep storage holds items such as tongue depressors

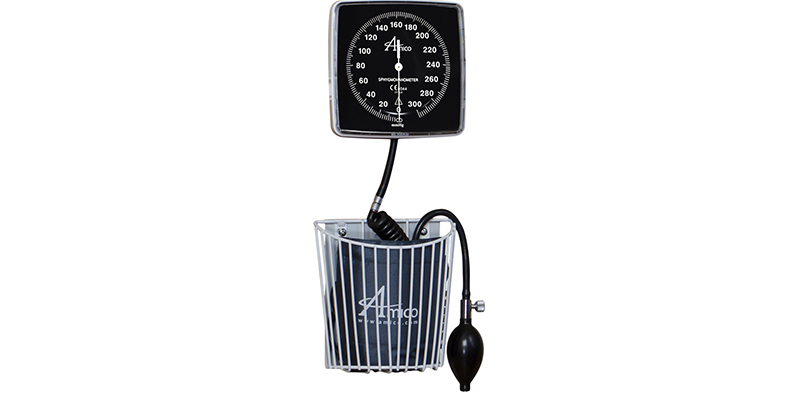

Wall Aneroid

Accurate within 3 mmHg
110˚ swivel adjustment
Large 6" (15 cm) recessed dial face for increased visibility
Latex and mercury free

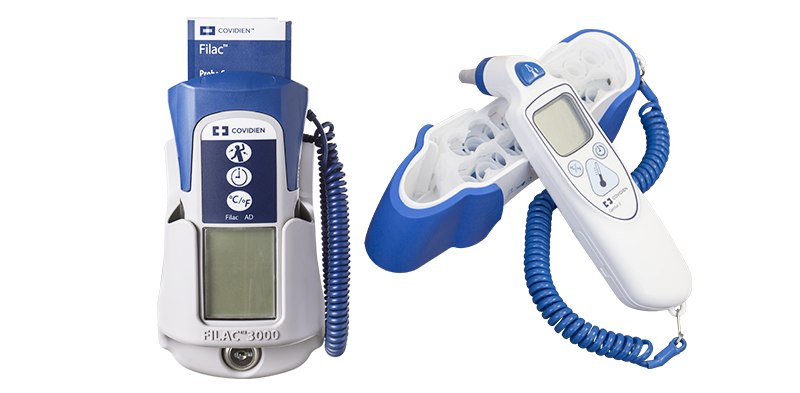

Electric Thermometry

Predictive or Infrared options available
Fast read response in under 4 seconds
60-second pulse timer option
Hygienic single-use probe covers allow touchless loading and ejecting

Instrument Head

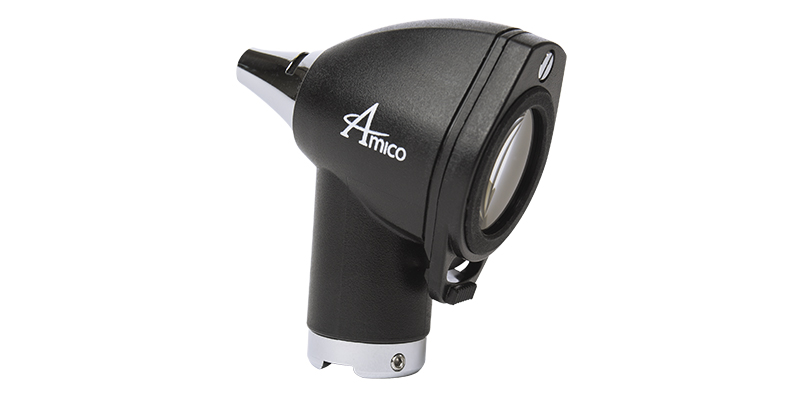

Fiber Optic Otoscope

Fiber optics project light without obstruction
Swivelling lens allows instrument access
Compatible with insufflation bulb
Anti-theft locking feature
Halogen and LED available

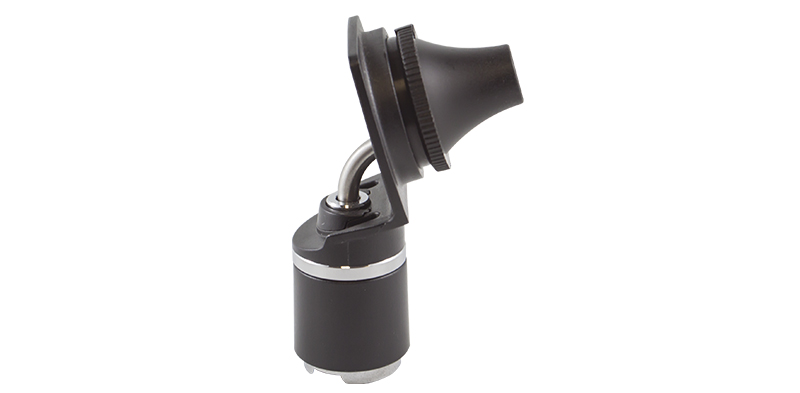

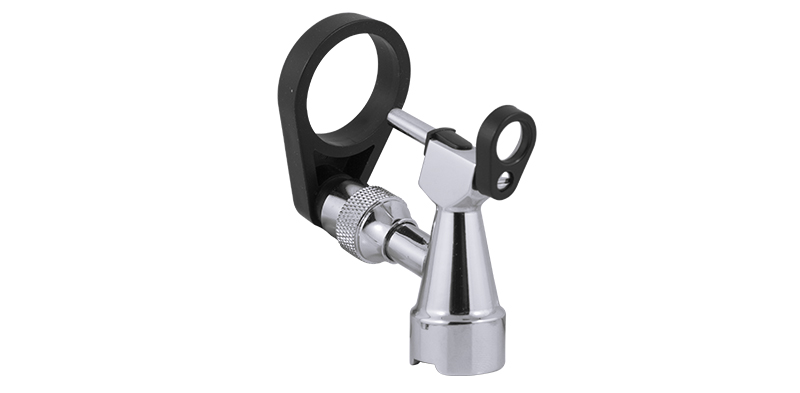

Operating Otoscope

Fiber optic illumination
Design allows unhindered access to ear
Swiveling lens and adjustable speculum holder

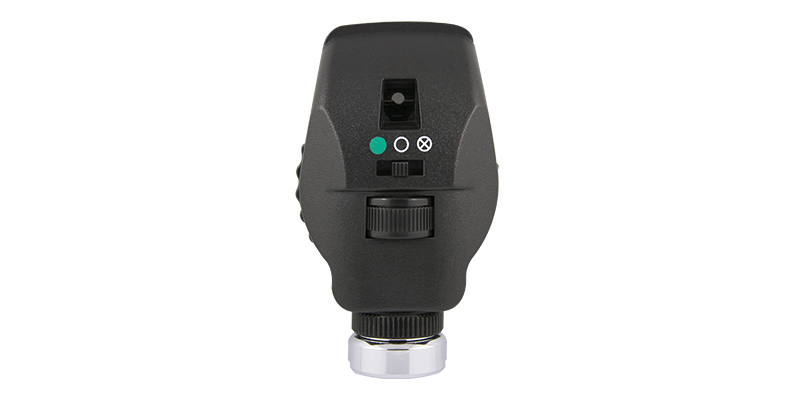

Coaxial Ophthalmoscope

28 adjustable diopter lenses (+40 to -25)
8 unique aperture and filter combinations
Sealed design keeps dust out
Anti-theft locking feature
Halogen and LED available

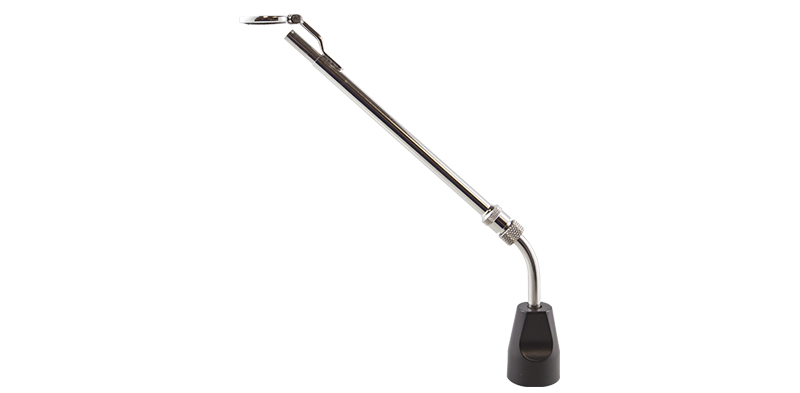

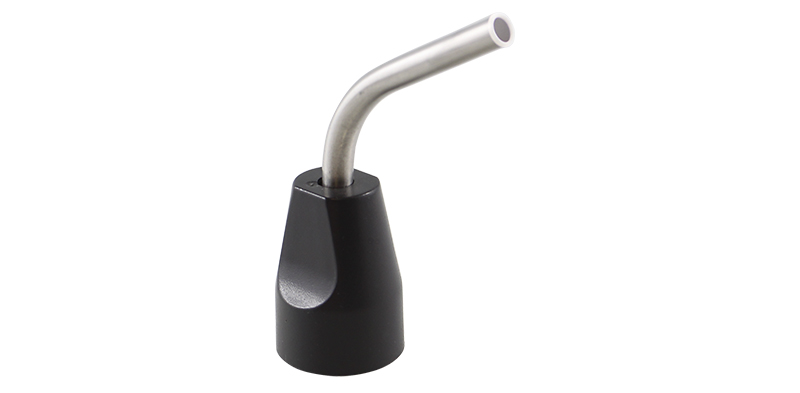

Bent Illuminator

Fiber optic light transmission
Halogen light provides bright consistent illumination

Accessories

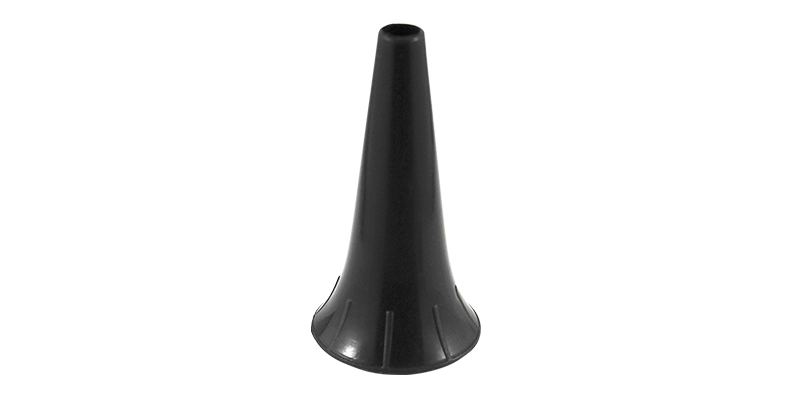

Disposable Ear Specula

Single use ear specula
Available in a variety of sizes

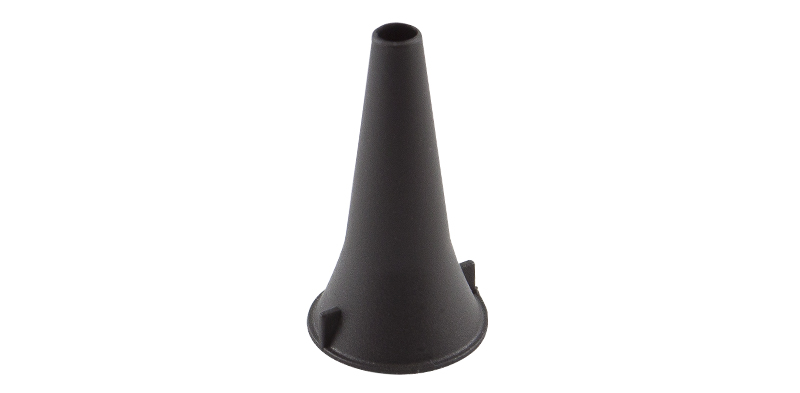

Reusable Ear Specula

Autoclavable up to 134˚C (273˚F)
Available in a variety of sizes

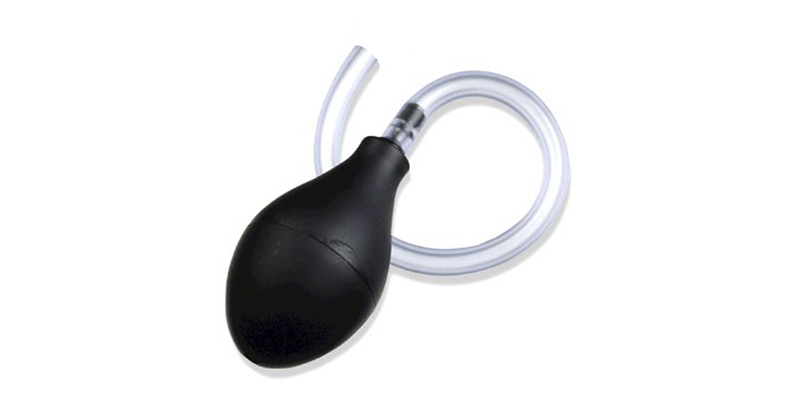

Insufflation Bulb

Otoscope Insufflation bulb and tube
Compatible with Fiber Optic Otoscope

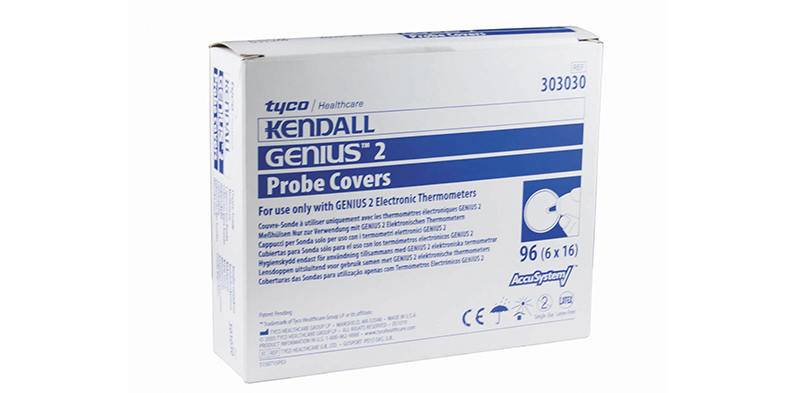

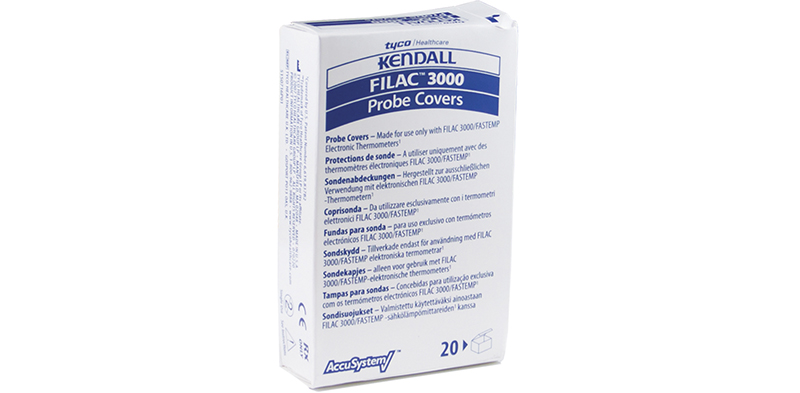

Predictive Thermometry Probe Covers

Disposable single-use
Touchless loading and ejecting of covers

Gallery

Videos

Diagnostic Equipment

Share this video

Downloads

Specs

diagnostic station specs

2.04 MB

Manual

diagnostic station manual trilingual

1.49 MB

otoscope manual trilingual

627.31 KB

ophthalmoscope manual trilingual

494.28 KB

specula dispenser manual trilingual

103.07 KB

Catalog

diagnostic equipment catalog

20.97 MB
