Amico’s Tablet Roll Stands feature a sturdy base and is compatible with various tablet models. Quick and easy pole-clamped accessory interchangeability allows for configuration flexibility based on clinical needs. Additional accessories include a storage basket, cord wrap and easy grab handle for transport.
Hummingbird Request Form
Specifications - get updates from David
Standard Roll Stand Features
Base Dimensions
Base (wheel to wheel):
17.20" x 17.25" (43.68 x 43.81 cm)
Base (overall):
20.307" x 20.232" (51.56 x 51.38 cm)
Base clearance from floor:
1.62" (4.11 cm)
Height Adjustments
Height adjustment (column):
13" (33 cm)
Height adjustment (LCD post): 6" (15.24 cm)
Height adjustment (ergonomic keyboard): 7.5" (19 cm)
Height Dimensions
Lowest column position: Add 4"
(10.16 cm) to all dimensions
if needing 8 bin SmartDrawers
Floor to top of worksurface
(in lowest column position):
35.127" (89.2 cm)
Floor to keyboard: 28.627" / 27.127" (72.69 / 68.88 cm)
Top of keyboard to top of worksurface (sliding/ergonomic): 6.5" / 8"
(16.51 / 20.32 cm)
Worktop to top of LCD (assuming a 15" H LCD mounted in top position): 23.053" (58.54 cm)
Overall height of cart (in lowest column position, highest post position and assuming 15" H LCD): 58.18" (147.77 cm)

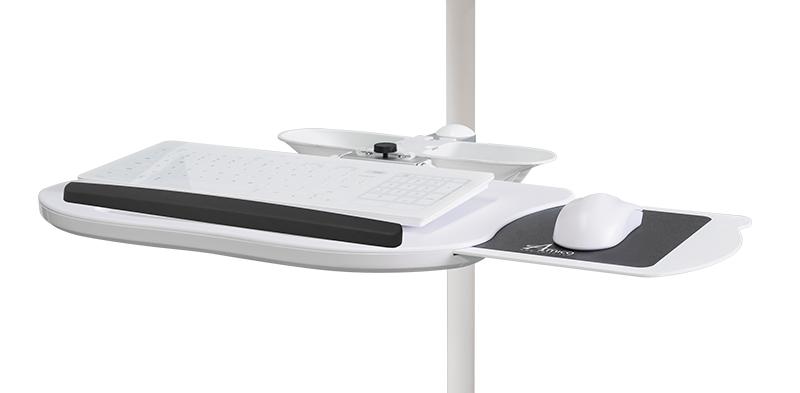

Keyboard Tray Dimensions
Keyboard tray including wrist wrest:
9.5" x 17.5" (24.13 x 44.45 cm)
Keyboard tray useable space for keyboard: 8.2" x 17.5"
(20.82 x 44.45 cm)
Keyboard tray L/R mouse surface - each side: 8.25" x 8.5"
(21 x 21.59 cm)
Inside worktop height PC compartment: 2.6" (6.6 cm)
Inside worktop: 9.053" x 14.928"
(23 x 37.89 cm)
Weight
Electric lift carrying load: 100 lbs
Pneumatic lift carrying load: 35 lbs
Weight without equipment/Shipping Weight:
LCD non-powered (base model):
75 lbs
Laptop non-powered (base mode): 65 lbs
LCD powered (base model): 110 lbs
Laptop non-powered (base model): 100 lbs
General Specifications
Materials of construction: Aluminum, ABS plastic
Warranty: 5 years
Approved cleaning solution: explained in manual

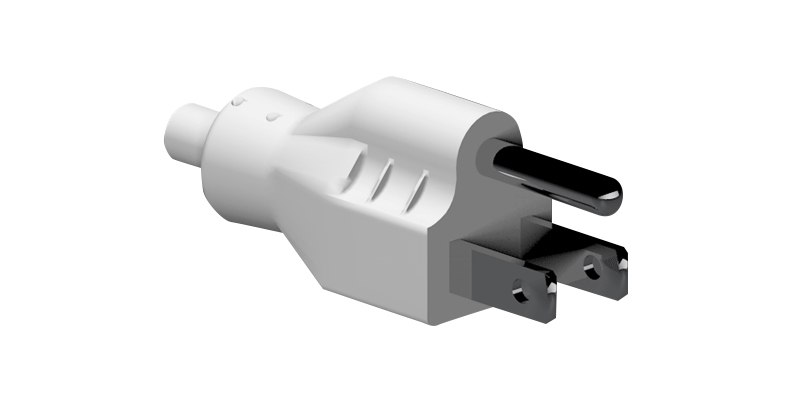

US Power Inlet - Plug Type B

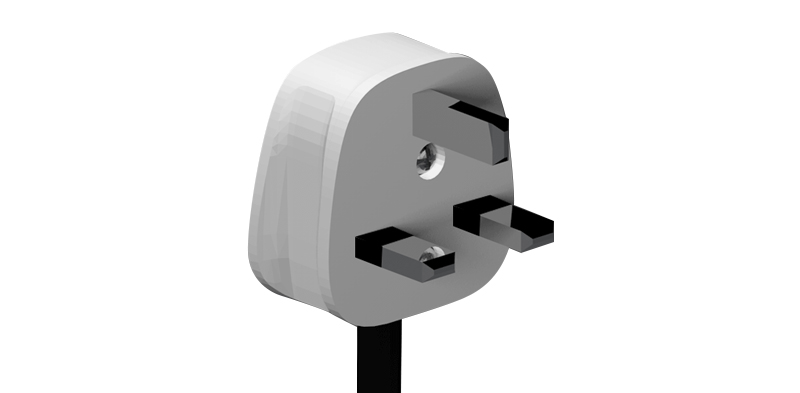

British Power Inlet - Plug Type G

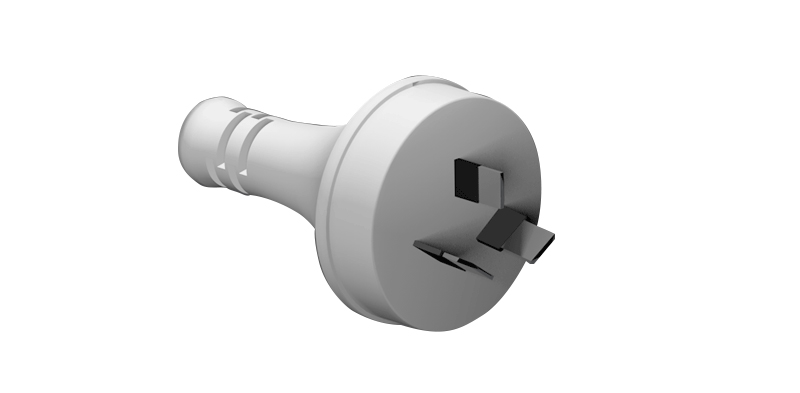

Australia/New Zealand Power Inlet - Plug Type I

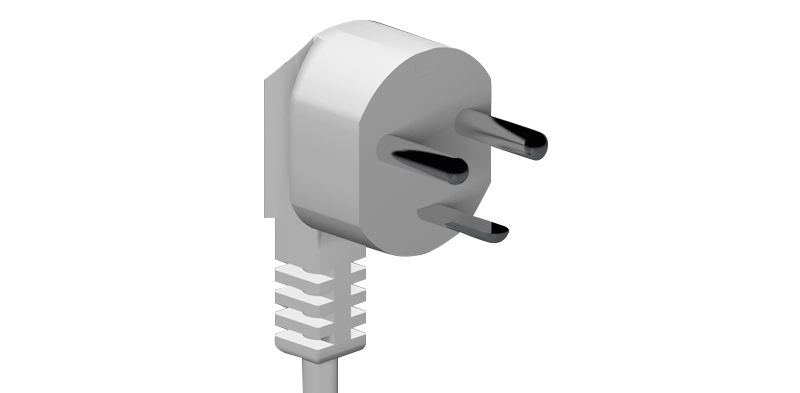

Denmark Power Inlet - Plug Type K

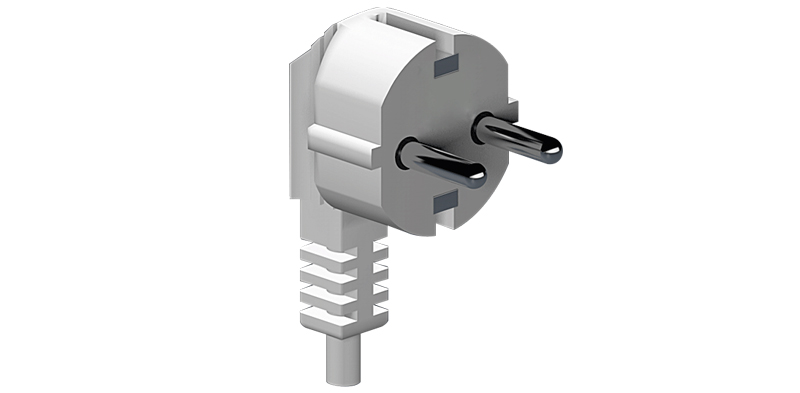

Europe/Russia Power Inlet – Plug Type E & Plug Type F
USB Splitter
Part Number: HMA-WT-USB-4HUB
Extended USB Cords
Part Number: HMA-USBEXT-3
Antibacterial Keyboard and Mouse
Please call for options
Wrist Rest
Anti-microbial, comfort wrist rest
Virox friendly
Part Number: MONWRISTPAD-S
Mouse Pad
Part Number: H-MOUSEPAD
Mouse Holder
Neatly stores mouse when not in use
Please call for options

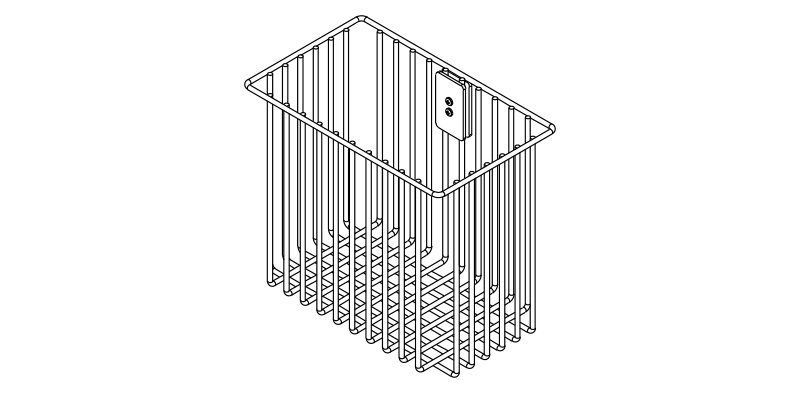

White Wire Basket : 10" x 6" x 9"
(25.4 cm x 15.24 cm x 22.86 cm)
Part Number: HMA-10609-V-BB

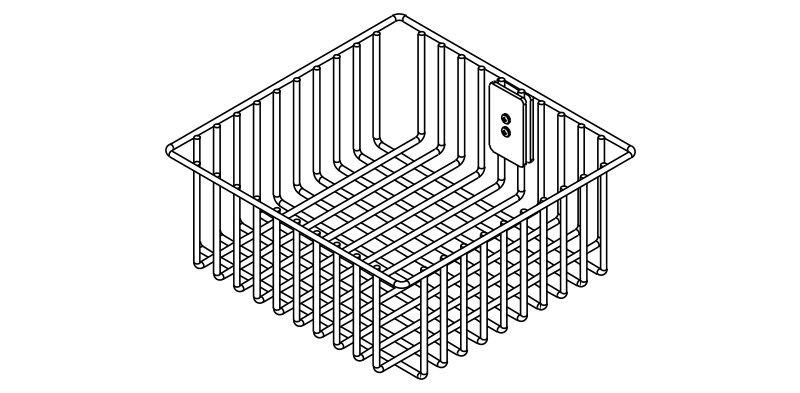

White Wire Basket: 10" x 10" x 4"
(25.4 cm x 25.4 cm x 10.16 cm)
Part Number: HMA-101004-V-BB
Blood Pressure Cuff Basket: 13" x 9" x 7"
(33.02 cm x 22.86 cm x 17.78 cm)
Part Number: HMA-CUFBASK-V

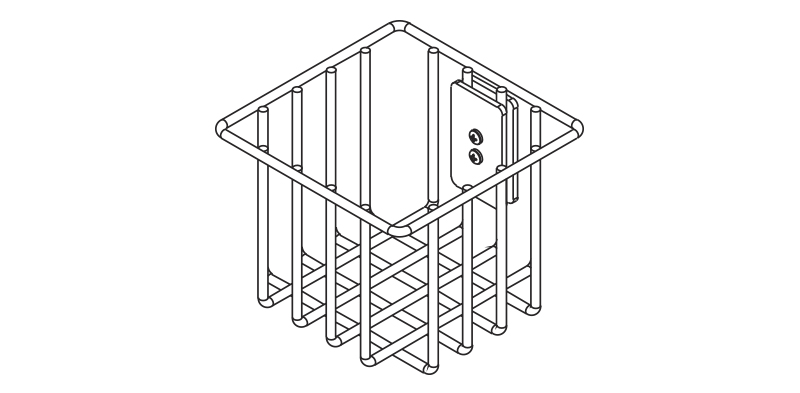

Baskets - 050504
Part Number: HMA-050504-V-BB

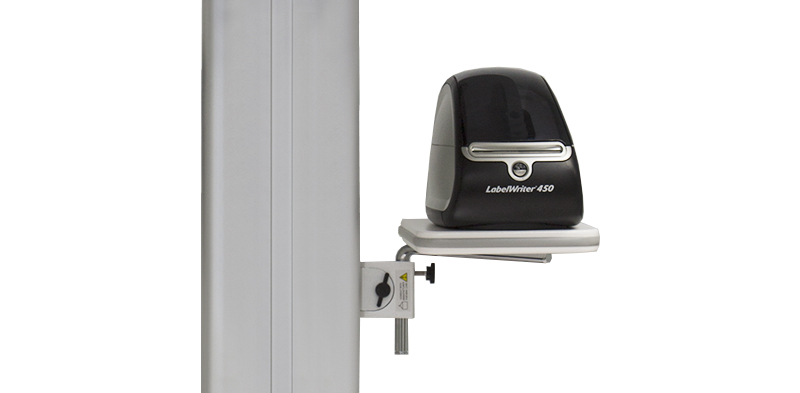

Printer Shelves - 6 x 6
Part Number: HMA-SHELFS-06FLD-V
Glove Box Holder
Universal holder
Easy to load and mounts to any accessory bar or rail
Part Number: HMA-GLOVEBOX-V
Hand Sanitizer Holder
Ideal for personal sized containers
Easy to load and mounts to any accessory bar or rail
Part Number: HMA-SANIHLD-V

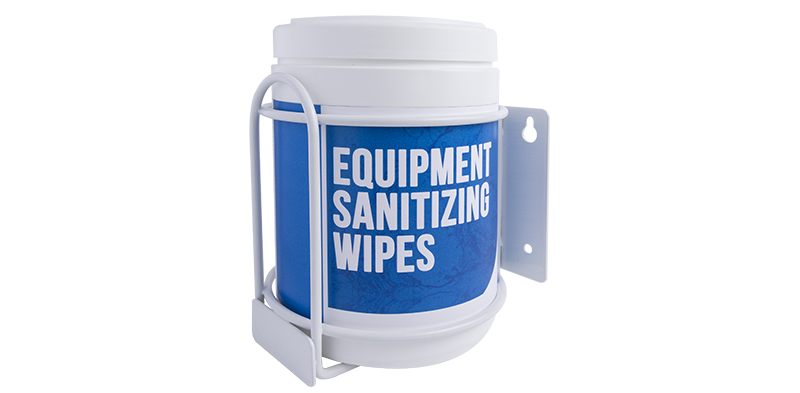

Equipment Sanitizer Holder
Please call for options

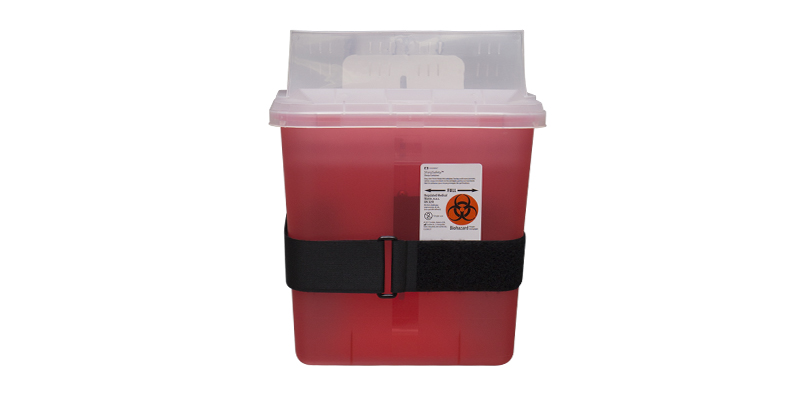

Universal Sharps Holder
Easy to load and mounts to accessory bars or wall channel
Ideal for mini sharps box and universally compatible
Part Number: HMA-SHARPSHLD-V

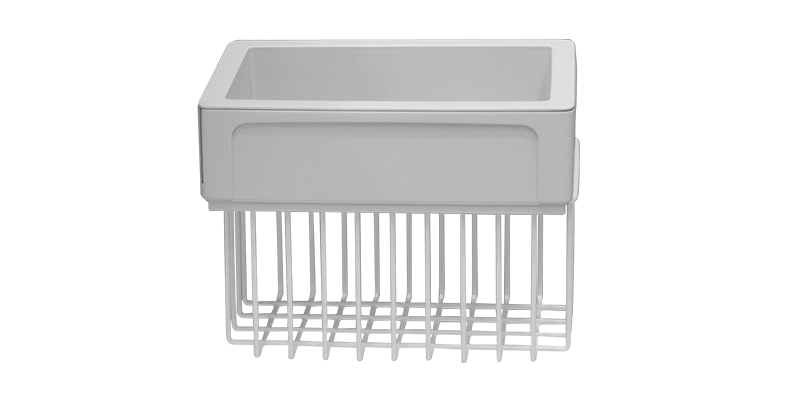

Waste Bin
Part Number: HMA-WASTE-V
LCD Handle
Ergonomic handles can be added to any Amico LCD mount
Knuckle guard protects walls and user’s hands
Part Number: MON-VESA-LCD
Barcode Holder
Attaches to the top or side of the LCD monitor (side mount shown)
Part Numbers: BARCDHLD2-LCD
BARCD-LCD (wired scanners)
Zebra Printer Holder
Part Number: ZB-QL220-PLT-LCD
Tablet Enclosure
Please call for options
