Hummingbird | LCD | Powered | Manual Lift
Workstation on Wheels
Amico's Hummingbird mobile medical workstations are optimized for enhanced clinician experience, efficient administration, and improved patient outcomes. Ergonomic design with sit-to-stand, independent monitor height adjustment, and oversized castors for lightweight movement make the Hummingbird the ideal workstation on wheels for all medical facilities.
Hummingbird Request Form
Base Dimensions
- Base (wheel to wheel):
17.20" x 17.25" (43.68 x 43.81 cm)
- Base (overall):
20.307" x 20.232" (51.56 x 51.38 cm)
- Base clearance from floor:
1.62" (4.11 cm)
Height Adjustments
- Height adjustment (column):
13" (33 cm)
- Height adjustment (LCD post): 6" (15.24 cm)
- Height adjustment (ergonomic keyboard): 7.5" (19 cm)
Height Dimensions
- Lowest column position: Add 4"
(10.16 cm) to all dimensions
if needing 8 bin SmartDrawers
- Floor to top of worksurface
(in lowest column position):
35.127" (89.2 cm)
- Floor to keyboard: 28.627" / 27.127" (72.69 / 68.88 cm)
- Top of keyboard to top of worksurface (sliding/ergonomic): 6.5" / 8"
(16.51 / 20.32 cm)
- Worktop to top of LCD (assuming a 15" H LCD mounted in top position): 23.053" (58.54 cm)
- Overall height of cart (in lowest column position, highest post position and assuming 15" H LCD): 58.18" (147.77 cm)
Worktop Dimensions
- Worktop excluding handles (total worktop space): 16.755" x 19.847"
(42.54 x 50.39 cm)
- Worktop including handles:
21.819" x 21.766" (55.42 x 55.27 cm)
- Worktop spill guard area/volume:
10.17" x 19.947" x 0.04"/8 fl. oz.
(25.83 x 50.64 x 0.10 cm)
- Worktop with keyboard extended:
- Ergonomic style keyboard (cart length changes): 10.546" (26.77 cm)
- Standard slide keyboard style (cart length changes): 6.875" (17.45 cm)
- Front of LCD to front of worktop (assuming a 2" thick LCD): 10.2"
(25.9 cm)
- Front of LCD to fully extended keyboard (assuming a 2" thick LCD) sliding/ergonomic: 21.844" / 25.219"
(55.47 / 64.06 cm)
- Inside worktop height PC compartment: 2.6" (6.6 cm)
- Inside worktop: 9.053" x 14.928"
(23 x 37.89 cm)
Keyboard Tray Dimensions
- Keyboard tray including wrist wrest:
9.5" x 17.5" (24.13 x 44.45 cm)
- Keyboard tray useable space for keyboard: 8.2" x 17.5"
(20.82 x 44.45 cm)
- Keyboard tray L/R mouse surface - each side: 8.25" x 8.5"
(21 x 21.59 cm)
General Specifications
- Materials of construction: Aluminum, ABS plastic
- Warranty: 5 years (excluding batteries and power system)
- Approved cleaning solution: explained in manual
Control Panel Dimensions
- Advanced control panel LCD size: 2.16" x 3.78" (5.48 x 24.84 cm)
- Standard control panel size:
2.16" x 3.78" (5.48 x 24.84 cm)
Display Mounting Arm
- LCD (LCD models only):
- 90 degrees L/R portrait to landscape
- Tilt 5-10 degrees
- 180 degree pan left to right
- VESA MIS-D: 75 mm and 100 mm (optional adapter plates for other sizes)
Weight
- Electric lift carrying load: 100 lbs
- Pneumatic lift carrying load: 35 lbs
- Weight without equipment/Shipping Weight:
- LCD non-powered (base model):
75 lbs
- Laptop non-powered (base model): 65 lbs
- LCD powered (base model): 110 lbs
- Laptop powered (base model): 100 lbs
Electrical Specifications
General
- Input to cart (non-induction): 120/220VAC, 15A
- Input induction docks: 120VAC, 15A
- Worktop output AC: 120VAC, 1.8A
- Worktop output DC: 12V / 19V
- USB auxiliary: 5V, 1A
- Warranty: 3 years
LiFePO4 Battery
- Chemistry: Lithium Iron Phosphate 12V, 19.2Ah - 230.4Wh
- Voltage: 12V
- Life cycle: 3000
- Estimated time to charge: 2.5 hrs
- Warranty: 3 years (80% SOH)

- 5" casters, 1 total lock, 1 directional lock, and 2 non-locking

- Work surface with spill guard/volume:
10.17" x 19.947" x 0.04"/8 fl. oz.
![Lockable PC Compartment (2.6" [6.60 mm])](/sites/default/files/inline-images/feat_hmngbrd_5.jpg)
- Lockable PC compartment
(2.6" [6.60 mm])

- Integrated accessory rails
(Baskets sold separately)

- Independent 180° swivel for display, portrait/landscape

- 6.5" independent display height adjustment and tilt

- Organized cable management

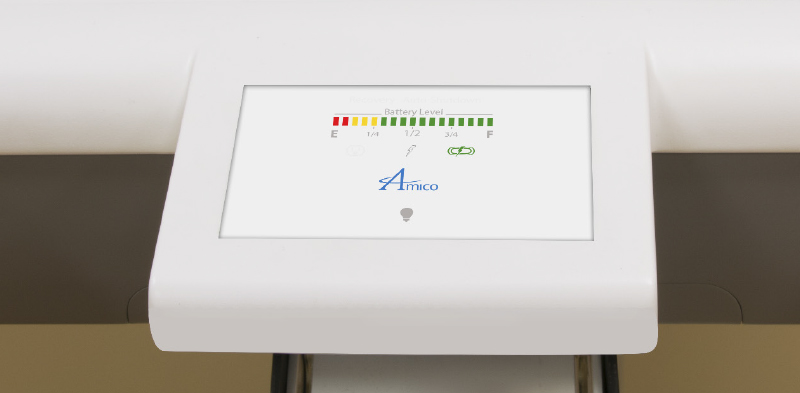

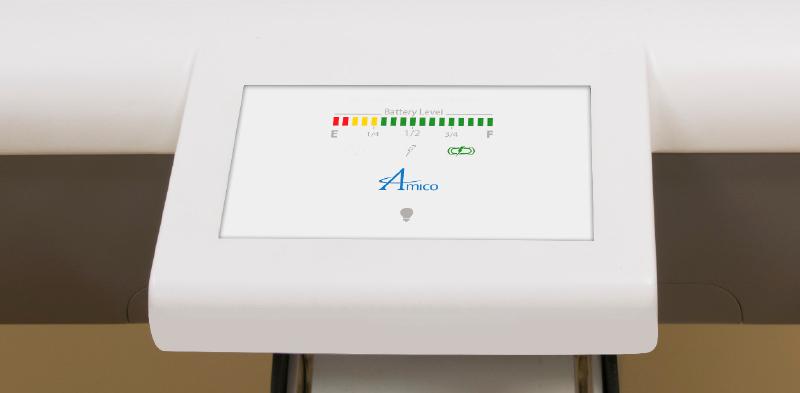

- Standard control interface

- Height adjustable (manual or electric)

- Negative and positive tilt (ergonomic keyboard tray)

- Pivot side to side 180° (ergonomic keyboard tray)

- Slide in and out and height adjustable (ergonomic keyboard tray)
The Amico Power System (APS) provides advantages beyond traditional power storage systems that is suitable for the various applications of mobile medical carts, including:
-
True state of charge display
-
Recovery of over-discharged batteries
-
Flexible battery chemistry
-
AC and DC power available in the CPU compartment
-
Isolation when used with the dock
Battery Power - Chemistry and Run Time
LifePo4 - 19.2AHr

LifePo4 - 38.4AHr

LifePo4 - 57.6AHr

US Power Inlet - Plug Type B

British Power Inlet - Plug Type G

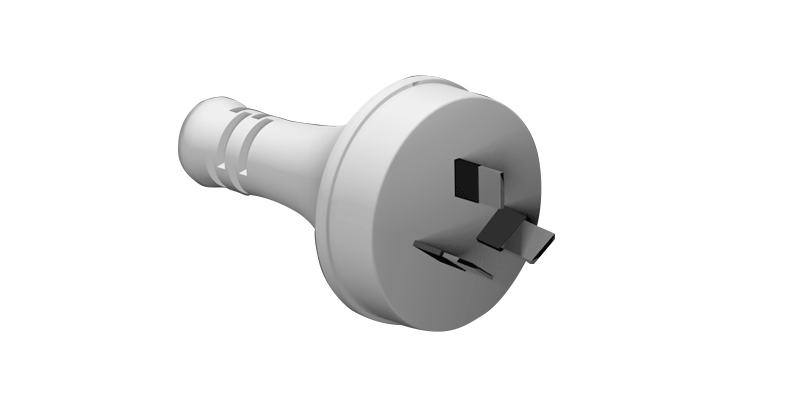

Australia/New Zealand Power Inlet - Plug Type I

Denmark Power Inlet - Plug Type K

Europe/Russia Power Inlet – Plug Type E & Plug Type F

AC Only

AC/DC

Adjustable Height Lift Mechanism
Pneumatic (Manual)

External PC Compartment
(AC only) Switch

Power System AC/DC Switch

No Switch

Slide Keyboard Tray

Ergonomic Keyboard Tray

- Height adjustable
- Negative and positive tilt
SmartDrawers

- Bought separately
- See Add-Ons tab for more details
Storage Drawers

- Various locking options
- See Add-Ons tab for more details
LED Light for Worktop

Part Number: HMA-WT-LEDMNT
USB Splitter

Part Number: HMA-WT-USB-4HUB
Extended USB Cords

Part Number: HMA-USBEXT-3
Antibacterial Keyboard and Mouse

Please call for options

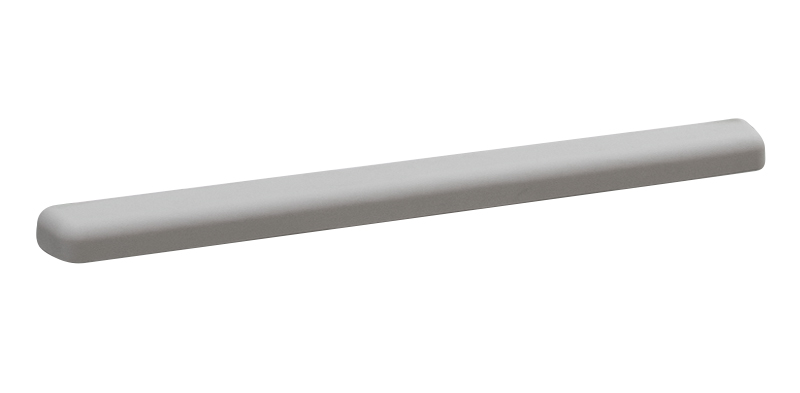

Replaceable Wrist Rest Cover

Part Number: HMA-WRISTREST-CVR
Mouse Holder

- Neatly stores mouse when not in use
Please call for options
Personalized Surface Label

- Personalize your work surface
Part Number: HMA-SURFLABEL-XXXX
Built-in RFID

- Various protocols available
Part Number: HMA-RFID-XXXX

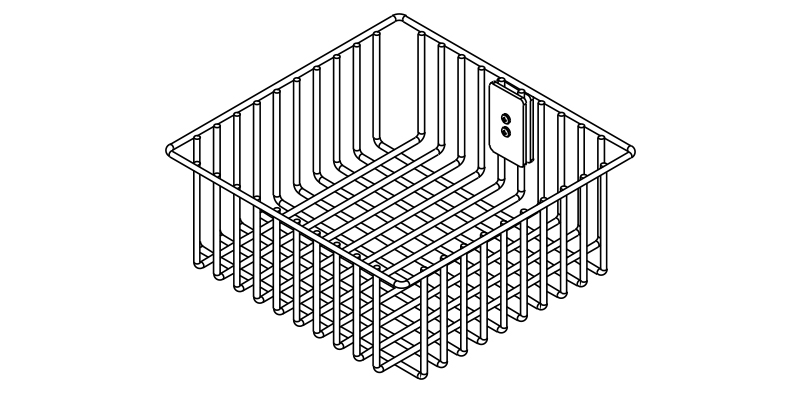

White Wire Basket : 10" x 6" x 9"
(25.4 cm x 15.24 cm x 22.86 cm)

Part Number: HMA-10609-V-BB
White Wire Basket: 10" x 10" x 4"
(25.4 cm x 25.4 cm x 10.16 cm)

Part Number: HMA-101004-V-BB
Blood Pressure Cuff Basket: 13" x 9" x 7"
(33.02 cm x 22.86 cm x 17.78 cm)

Part Number: HMA-CUFBASK-V
Baskets - 050504

Part Number: HMA-050504-V-BB
Storage Bins - 4 Drawers

- Various locking options available
Part Numbers: HMA-DRW-140-K
HMA-DRW-140-C
HMA-DRW-140-D
Storage Bins - 1 Bin

- Various locking options available
Part Numbers: HMA-DRW-100-K
HMA-DRW-100-C
HMA-DRW-100-D
SmartDrawers

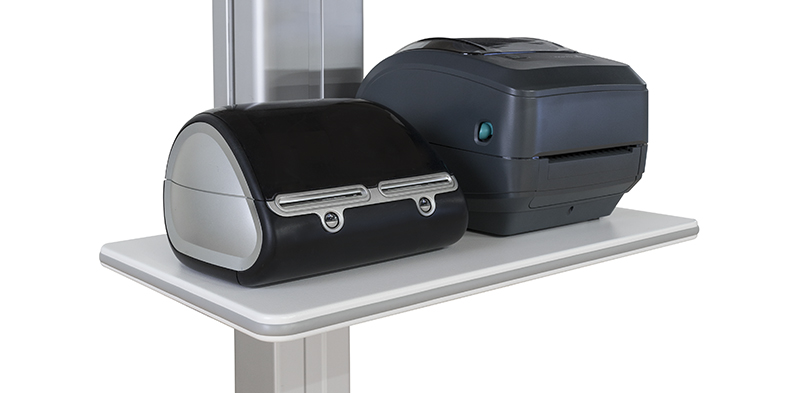

Printer Shelves - 12 x 20

Part Number: HMA-SHELF1220
Printer Shelves - 6 x 6

Part Number: HMA-SHELFS-06FLD-V
Glove Box Holder

- Universal holder
- Easy to load and mounts to any accessory bar or rail
Part Number: HMA-GLOVEBOX-V
Hand Sanitizer Holder

- Ideal for personal sized containers
- Easy to load and mounts to any accessory bar or rail
Part Number: HMA-SANIHLD-V
Equipment Sanitizer Holder

Please call for options
Universal Sharps Holder

- Easy to load and mounts to accessory bars or wall channel
- Ideal for mini sharps box and universally compatible
Part Number: HMA-SHARPSHLD-V
Waste Bin

Part Number: HMA-WASTE-V
LCD Handle

- Ergonomic handles can be added to any Amico LCD mount
- Knuckle guard protects walls and user’s hands
Part Number: MON-LCD-HANDLE
Barcode Holder

- Attaches to the top or side of the LCD monitor (side mount shown)
Part Numbers:
BARCDHLD2-LCD (wireless scanner)
MON-LCD-BARCD (wired scanners)
Zebra Printer Holder

Part Number: MPN-0036-LW
Sharps Holder

Please call for options
Barcode Holder

Please call for options
Hand Sanitizer Holder

Please call for options
Glove Box Holder

Please call for options
Printer Holder

Please call for options
Basket - 0505004

Please call for options
IV Hook

Please call for options
Sharps Container Holder

Please call for options

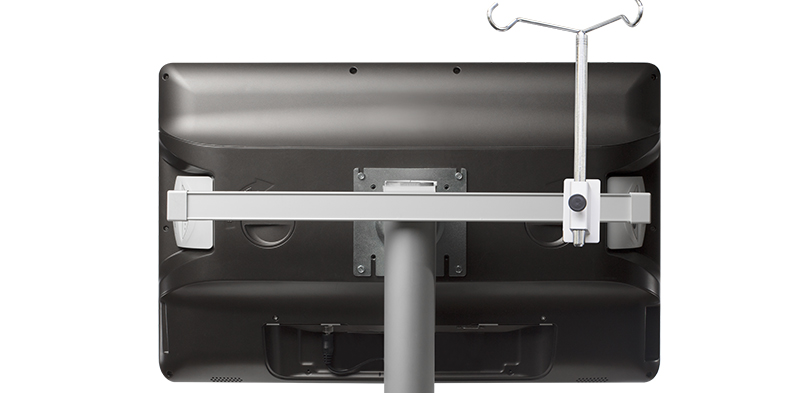

IV Hook Holder

Please call for options
Hand Sanitizer Holder

Please call for options
Glove Box Holder

Please call for options
Equipment Sanitizer Holder
Please call for options
