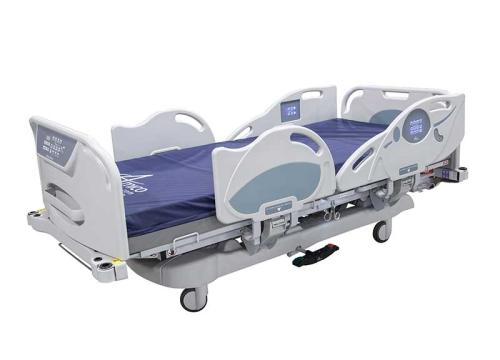

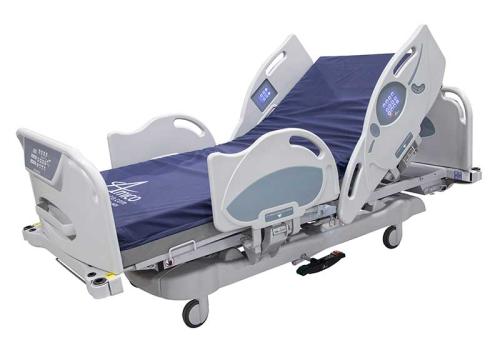

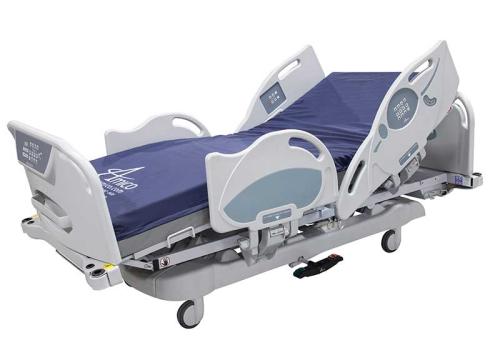

Apollo MS Scale
The Amico MedSurg Scale bed uses an innovative design and incorporates distinctive features to help caregivers provide a more meaningful level of care to patients. The Apollo MS-Scale bed features an integrated scale system, allowing caregivers to accurately weigh and set out-of-bed alarms for the patient. Research indicates the need for a more ergonomic design to prevent back injuries, a lower height for patient fall reduction and a series of one-handed operations for a bed. Amico has designed this bed with this research in mind, and we are proud to introduce a product that is built to the most current standards while also meeting clinicians’ needs. This scale bed can also be customized to match your existing or planned décor. The bed would be unique to your facility, with customizable options, inserts and logos.
The Amico MedSurg bed features a very reliable electrical system including silent DC Actuators and an OpenBus system. This capability allows our bed to be upgraded to incorporate desired features. The result is a MedSurg (MS) bed that is worry-free from an actuation, electrical and mechanical standpoint.
Features
Specifications
Overall Length
- Retracted: 92" (234 cm)
- Extended: 96" (244 cm)
Overall Width
- Siderails Up: 42" (107 cm)
- Siderails Down: 40" (102 cm)
Patient Surface
- Retracted: 84" x 35" (213 x 89 cm)
- Extended: 88" x 35" (224 cm x 89 cm)
Weight Capacity
- 550 lbs (250 kg)
Height Range (to the surface of the Litter)
- Low 16" (41 cm)
- High 27" (69 cm)
Caster Diameter
- 5" (13 cm)
Volts
- 120 VAC
- 220 VAC
Ampere Rating
- 4 A, 9.8 A with auxiliary outlet
- 220 VAC - 2.9 A
Current Leakage
- <300 μA
Frequency
- 50-60 Hz
Plug Listing
- Hospital Grade
