<p>The triplex modular stacking configuration allows two compressors to be stacked on one side and one compressor situated on the other side of the receiver tank. This modular or field separable design allows for ease of shipment and handling on site.</p>

amico-as-scroll-air-systems-specs.pdf

amico-as-eco-plus-control-panel-specs.pdf

amico-as-premium-3.5-control-panel-specs.pdf

amico-as-premium-5.7-control-panel-specs.pdf

amico-as-premium-7.5-control-panel-specs.pdf

nfpa_triplex_scd_modular_stack_mount.pdf

amico-as-scroll-air-systems-manual.pdf

amico-as-scroll-air-systems-sell-sheet.pdf

amico-acp-medical-gas-pipeline-and-source-system-specs.pdf

amico-as-medical-gas-design-guide.pdf

amico-as-equipment-sizing-guide.xlsx

amico-as-air-and-vacuum-systems-brochure.pdf

<ul>
	<li>A-Frame, stackable scroll compressor allows two pumps to run simultaneously with smaller footprint and compact design</li>
	<li>UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display</li>
	<li>Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters</li>
	<li>Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing</li>
</ul>


Feature Image 2 - NFPA Duplex SCD Horizontal Tank Mount

<ul>
	<li>Individual compressor inline intake filter</li>
	<li>Non-return valve on the outlet</li>
	<li>Flexible inlet and outlet couplings</li>
	<li>Inlet and outlet shut-off valves</li>
	<li>Pressure relief valve</li>
	<li>Condensate separator and drains</li>
	<li>Unloader valve</li>
</ul>


<ul>
<li>UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display</li>
<li>Manual reset for all alarms</li>
<li>All control and alarm functions shall remain energized while any pump in the system remains electrically online</li>
<li>Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters</li>
</ul>

<ul>

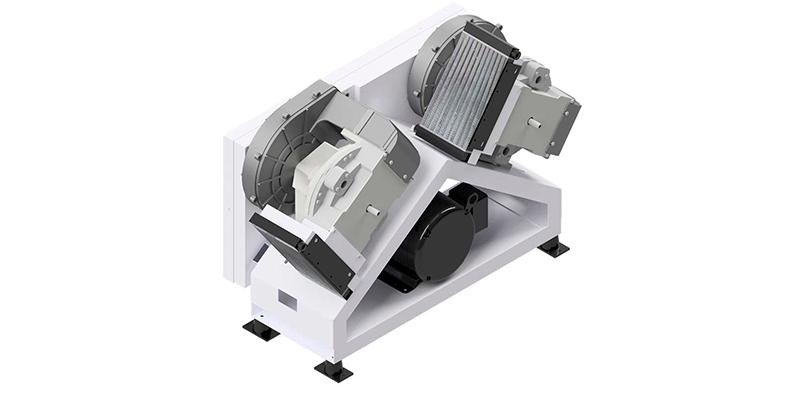

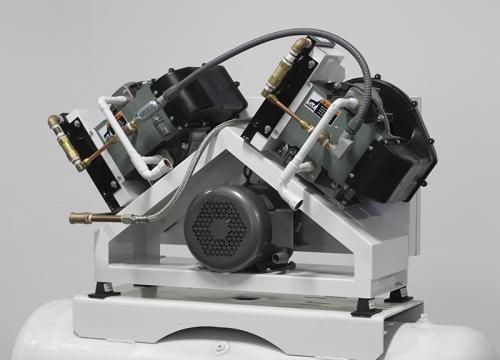

<li>V-belt driven Oil-Less Rotary Scroll, single stage, air-cooled construction with absolutely no oil needed for operation (Available in 120 or 145 psi configuration)</li>
<li>A-Frame, stackable scroll allowing two pumps to run simultaneously with smaller footprint allowing for compact design</li>
<li>3,600 RPM, premium efficiency motor</li>
<li>Means of removal of the compressor for service or replacement without interruption to the system</li>
</ul>

<ul>

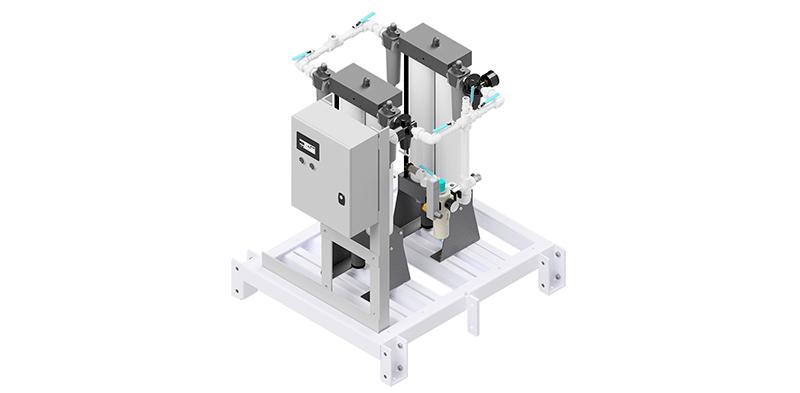

<li>Integral air treatment system with purge saving feature, NFPA 99 compliant assembly featuring dual desiccant air dryers, dual pre-filters, after-filters, pressure regulator valves, dew point monitor, CO monitor and system safety valves</li>
<li>Completely pre-piped and pre-wired to single-point service connections</li>
</ul>

<ul>
<li>ASME certified</li>
<li>Rated for a minimum of 200 psig design pressure</li>
<li>Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing</li>
<li>Three-valve bypass for service or replacement without interruption to the system</li>
</ul>

<ul>
<li>Stage 1: Prime efficiency coalescer with filtered, differential pressure gauge</li>
<li>Stage 2: Desiccant heatless air dryer, equipped with purge control capable of attaining pressure dew point of -40&ordm;F. The dry compressed air is discharged from the "online" tower into the 3rd stage</li>
<li>Stage 3: Prime efficiency particulate after filter with manual drain differential pressure gauge along with downstream pressure regulators that will maintain constant discharge pressure of 50 psig (field adjustable)</li>
</ul>

Gallery Image - NFPA Triplex SCD Modular Stack Mount

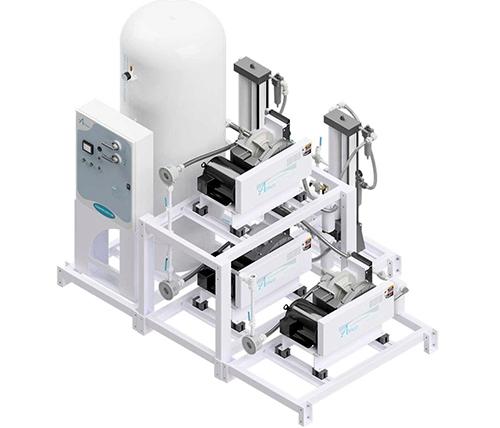

Main image for Amico's NFPA Triplex SCD Modular Stack Mount

NFPA Triplex SCD Modular Stack Mount
