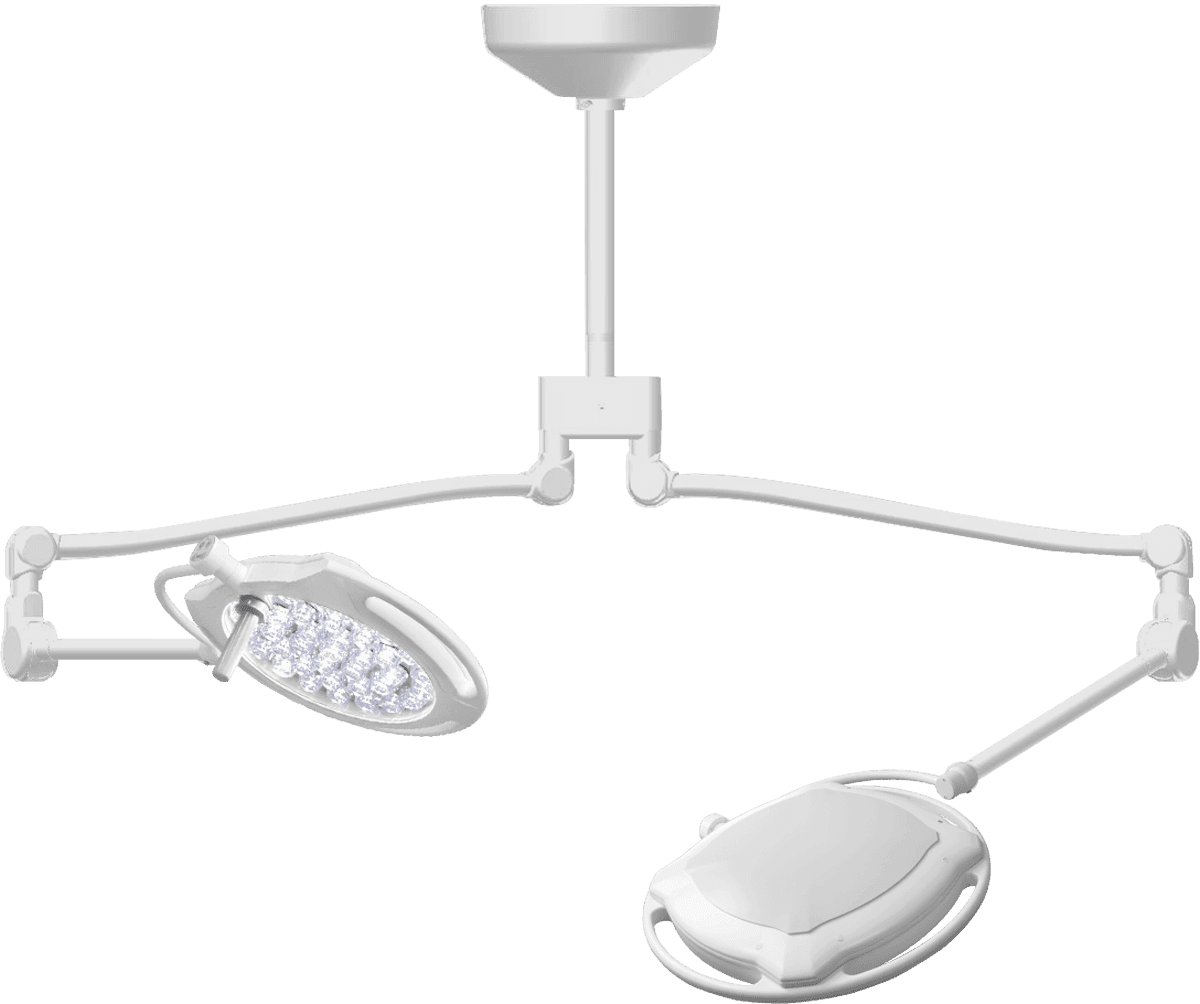

Mira90 LED

Minor Procedure & Exam

The Mira LED Procedure Exam Light offers the latest advancements in minor procedure and examination lighting. Its precisely positioned LEDs provide superior shadow control, depth of field, and light intensity to provide caregivers with the advanced visual acuity critical environments.

The Mira LED Procedure Exam Light offers various functionalities including five levels of dimming and an Endo mode to provide low level illumination to clinicians during endoscopy procedures. Clinicians can easily control the lighting functions using the keypad located directly on the lighthead or using the optional Wall Control Keypad that can be mounted anywhere within the room.

For ultimate convenience the two keypads work cooperatively together and allow the fixture to be controlled from multiple locations within the room. The Mira LED Procedure Exam Light features a removable handle ergonomically positioned off to the side to maximize the light field. The handle can be rotated to electronically focus the light beam to a concentrated 6" for targeted procedures, or 12" for broader examinations.

Light Head Diameter

  • 18" (45.72 cm)

Light Intensity (Central Luminance)

  • 90,000 Lux (8,361 fc) at 1m (39.37")

Brightness Control

  • 50%-100%

Light Field Diameter

  • 6.5” to 12"
    (16.51 cm to 30.48 cm)

Depth of Illumination

  • 94.5" (240.03 cm)

Color Rendering Index (Ra)

  • 95

R9

  • 90"

Weight of Light Head

  • 11lbs (4.99 kg)

Color Temperature (standard)

  • 4500 K

Shadow Dilution

  • Single Mask: 0.7%

  • Double Mask: 55.5%

  • Cavity: 100%

  • Single Mask with Cavity: 0.3%

  • Double Mask with Cavity: 55.3%

Number of LED's (main)

  • 36

LED service life

  • 50,000 hours

Total Radiant Power at Max Intensity

  • 317 W/m²

Electrical

  • 100-240 VAC, 50/60 Hz, 0.65 amps

Power Supply

  • Direct Power Supply

Mounting Options

  • Ceiling, Wall and Roll Stand

Certificates

  • cETLus conform to:

    • UL60601-1

    • UL60601-2-41

  • UL certified IP54 per IEC 60598

Slim Design

  • Slim design to reduce clutter in small workspaces



LED Technology

LED

  • Latest in LED technology offers high CRI of 95 and 4500 Kelvin for excellent color accuracy



Focusing

Focus

  • Twist handle for focusing light beam from 6.5” (16.51 cm) to 12” (30.48)



Removable Handle

Handle

  • Removable/sterilizable handle

Lightweight Arms

  • Lightweight long reach arms allow for easy positioning



Applications

Application

  • Mira LED Series Lights can be used in your ED, Exam and ICU environments



Control Pad

Control Pad

  • Switch on the light at light head

  • Set the required luminosity with 5 dimming levels

  • Includes Endo mode

Mounting Options

  • Single Ceiling Mount

Dual

  • Dual Ceiling Mount

Wall

  • Wall Mount

Roll Stand

  • Roll Stand

Mira Lights
