Magnifiers

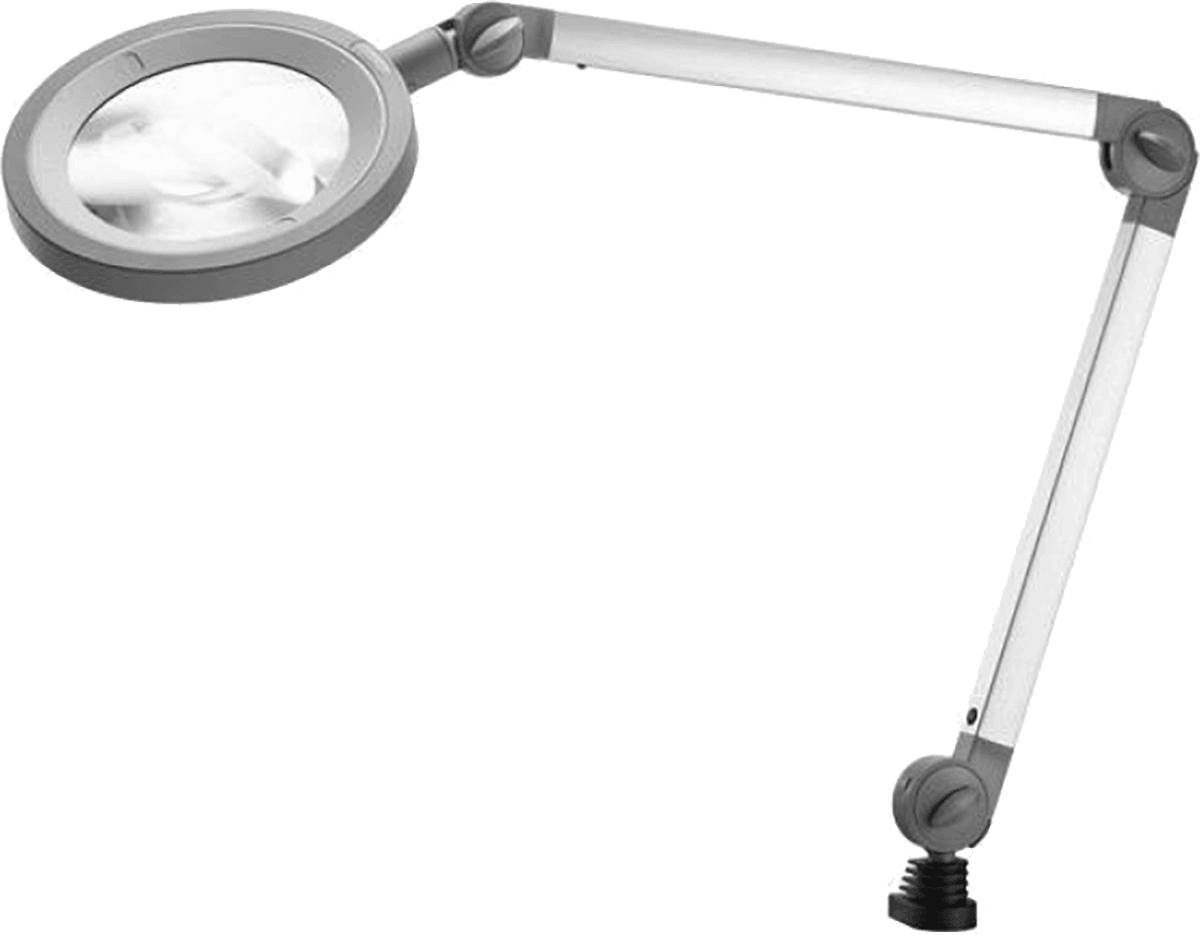

The Magna 51 LED magnifier is the lighting solution for the precise examination of parts for a number of fields of application. The Magna 51 LED uses 48 innovative LEDs, providing critical added value compared to conventional fluorescents magnifiers: four times brighter per watt, considerably lowering energy consumption. These LEDs offer a minimum of 50,000 hours of operating life at 100% brightness level – maintenance-free for over six years running 24/7!
Arm Options
Arm Options
- Basic Articulating Arm
- Articulating Arm with Extension
Mounting Options
Mounting Options
- Horizontal Rail Mount (Amico or Fairfield)
- Vertical Rail Mount (Amico)
- Floorstand
- Wall Mount
- Table Mount
Specifications
Specifications
- Connected Load: 100-240V; 50/60 Hz
- Fitted With: 48 x Light-emitting diode light color neutral white, 3700-4000 K, color rendering index (CRI)=90
- Work Equipment: Electronic plug-in driver
- Mains Lead: Approx. 9.8 ft (2.987 m)
- Luminaire Body: Plastic, untreated, Aluminum coloured anodized
- Tubular Sections Material: Tubular aluminum section anodized
- Surface: Anodized
- Weight (NET): Approx. 4.4 lbs (2 kg)
- Fastening:
- Table mount included for table-mounted lights
- Rail mount included for rail-mounted lights
- Wall mount included for wall mounted lights
- Floor stand included for floor stand light
- Technology: Multi-stage switchable; continuously dimmable multi-functional switch
- Usage: Multi-function switch
- Lamp Cover: Polycarbonate, Satine
- Class Of Protection: II with power
- Luminaire Body: Plastic, untreated, aluminum colored anodized
- Color Of Tubular Sections: Aluminum, Anodized
- Lens; Dimensions: ø 160 mm (6.3”)
- Lens Material: PMMA
- Lens; Diopters: 3.5
- L-MA51-AB-RH-A Magna 51, Articulating Arm, Basic, Rail Mount, Horizontal, Amico Rail
- L-MA51-AB-W Magna 51, Articulating Arm, Basic, Wall Mount
- L-MA51-AE-F Magna 51, Articulating Arm with Extension, Floor Stand
- L-MA51-AE-T Magna 51, Articulating Arm with Extension, Table Mount
