Multifunctional Switch with Dimming
LightMaster Series

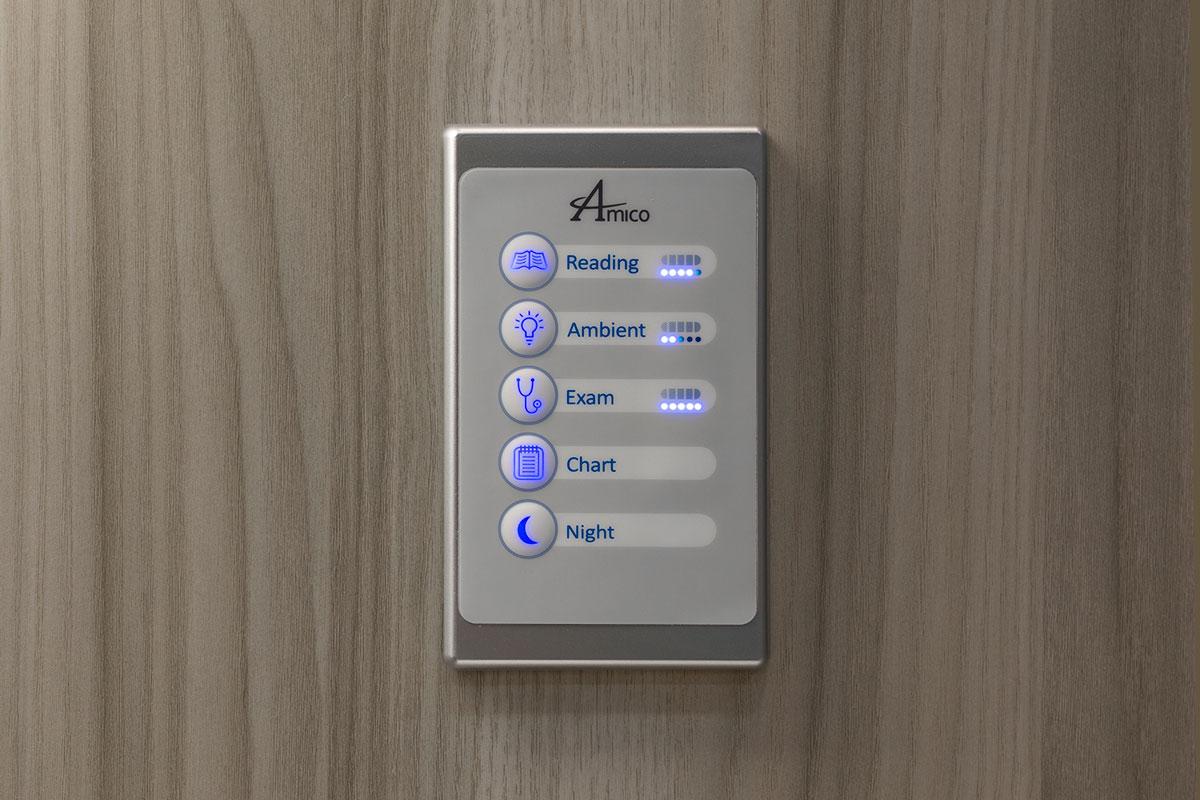

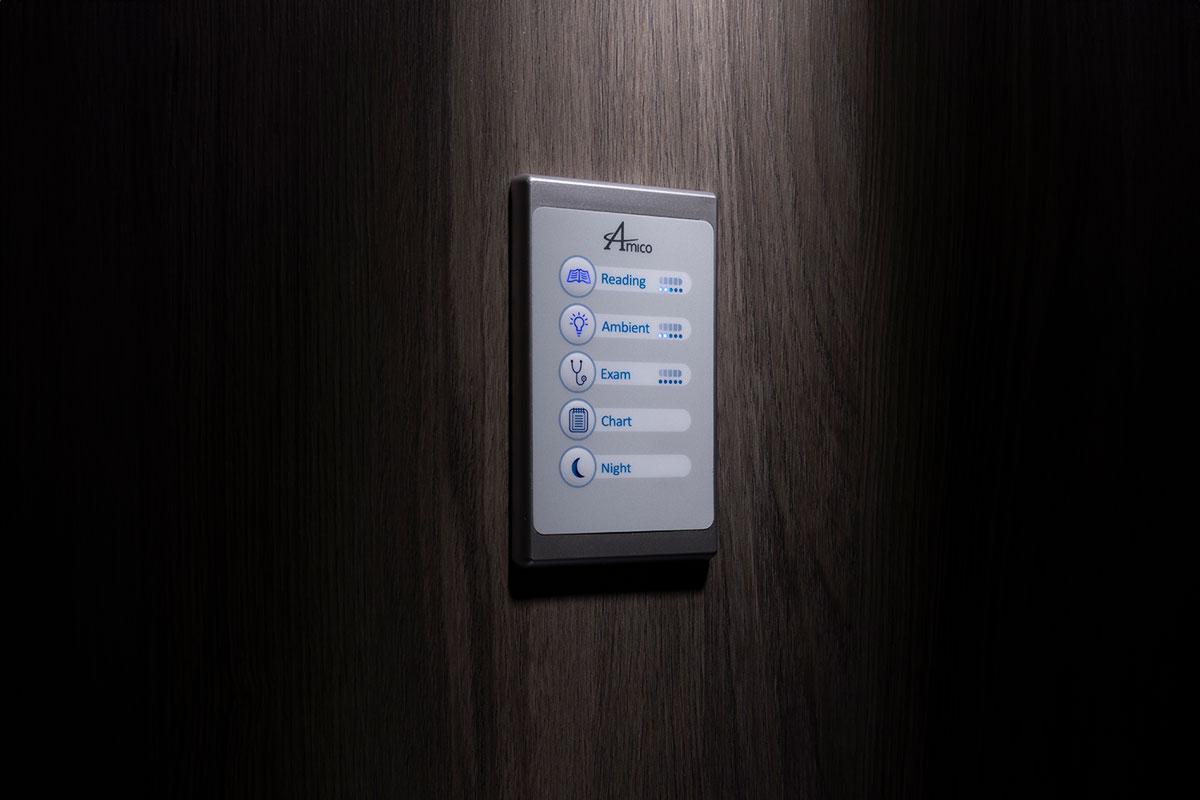

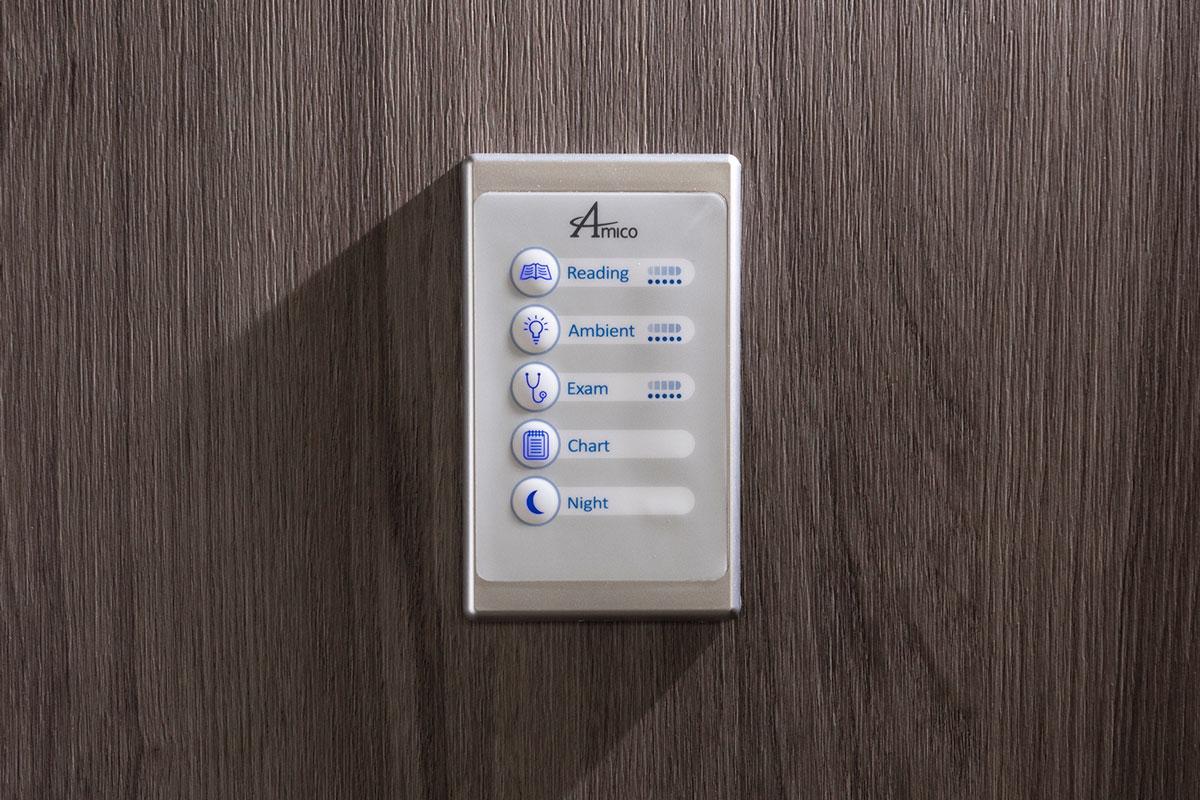

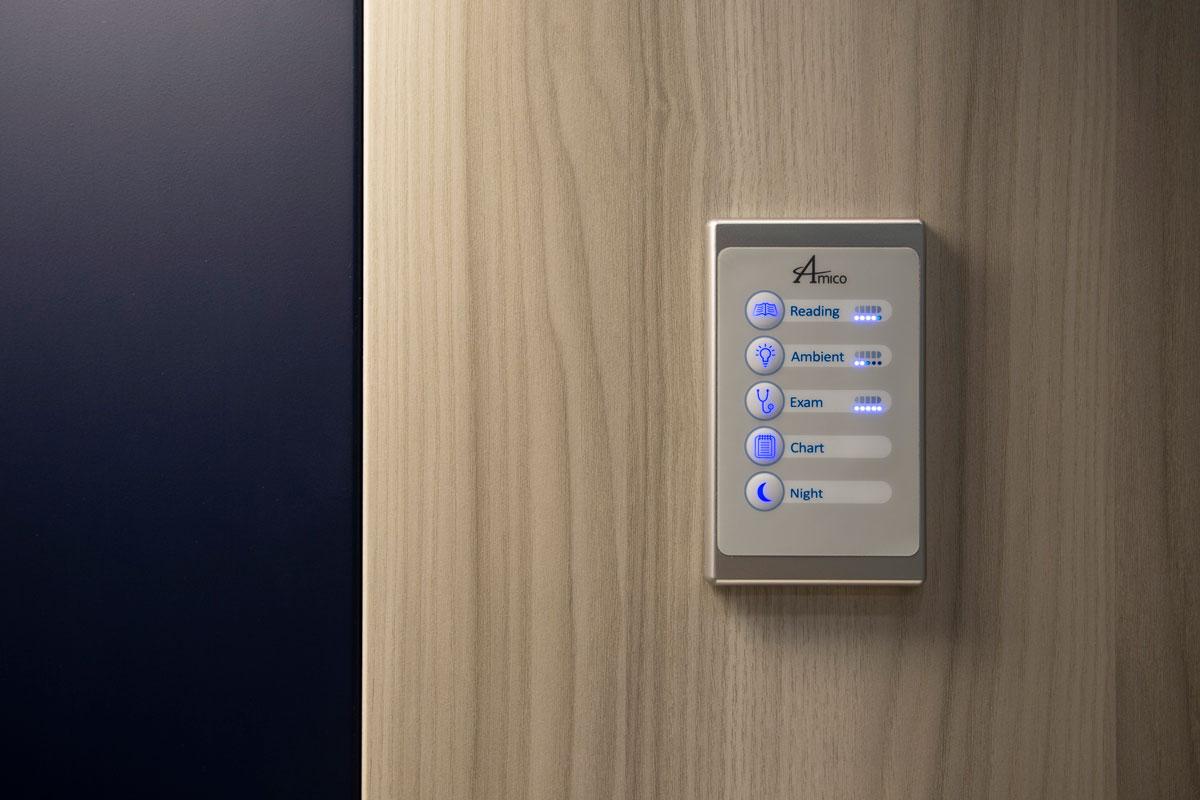

The LightMaster Multifunction switch is a compact, low-voltage device that can control up to five lighting functions on one easy-to-use, single-gang keypad.
Description
The Amico LightMaster multifunction switch with dimming functionality is designed to improve the day-to-day operation of your room lighting. With advancements in room lighting, Amico has made it easy to operate each function of single or multiple light fixtures with one intuitive keypad. Incorporated in a single gang space, this LightMaster keypad with dimming can control Reading, Ambient, Direct Light and Spot Lights that may be in the room. Featuring backlit buttons and LED indicators for five levels of dimming to clearly indicate the lights in use and their level of brightness. With infection control in mind, Amico uses a Mylar Overlay on each keypad for ease of cleaning. The Lightmaster keypad with dimming is also designed as a low voltage device to ensure the highest levels of safety are met.
Features
Specifications
Input Voltage
- 120 - 277 Volts
- 50/60Hz
Output Voltage
- 120 - 277 Volts
- 50/60Hz
Maximum Load
- 2.5 amps Resistive
- 1.8 amps Ballast at 120 Volts
- 0.975 amps Resistive
- 1.0 amp Ballast at 277 Volts
Low Voltage Circuit
- 5VDC
- 200 mA
Operating Temperature
- 32 - 176˚F / 0 - 80˚C
Master Control Dimensions
- 8" (L) x 2.6" (W) x 1.25" (H)
Secondary Control Dimensions
- 4.5" (L) x 2.6" (W) x 1.25" (H)
Keypad Dimensions
- One (1) Gang
Warranty
- Limited five (5) year warranty
