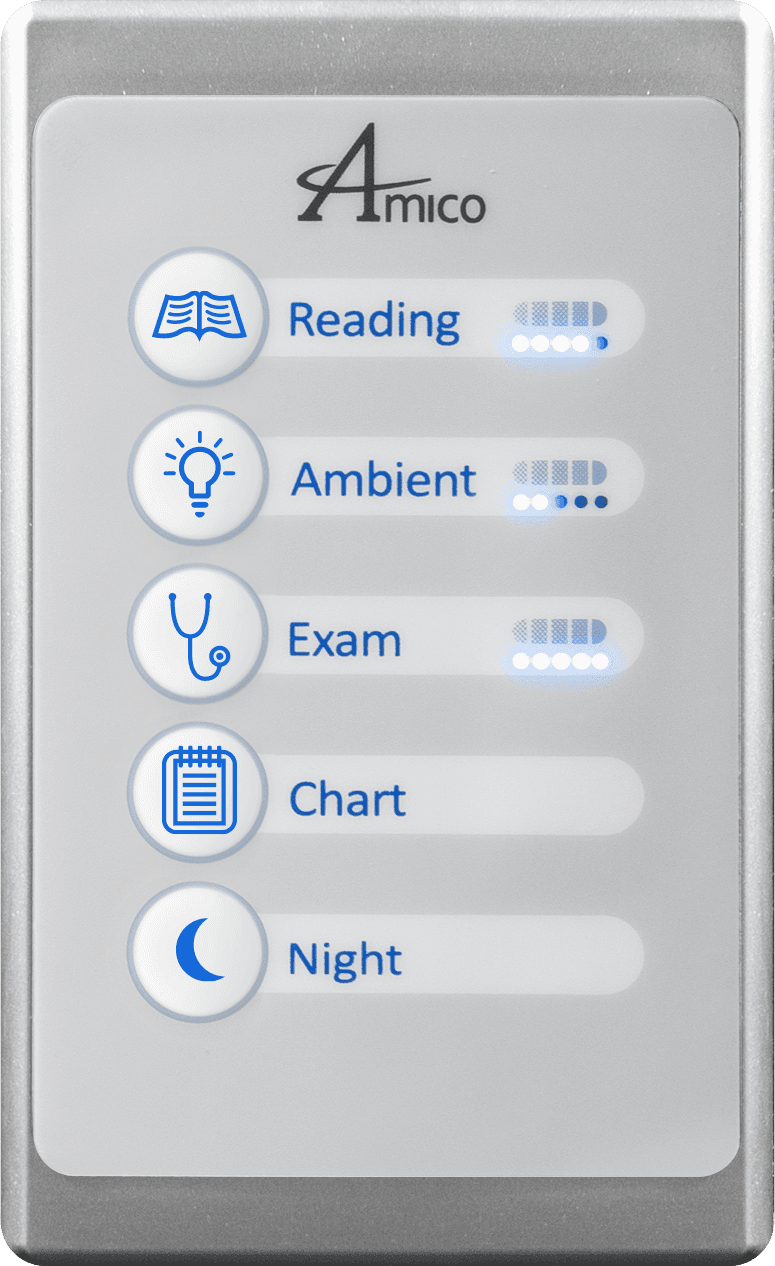

Main product image for Amico's LightMaster Multifunctional Switch

LightMaster Multifunctional Switch

The Amico LightMaster multifunction switch is designed to improve day-to-day operation of your room lighting. With advancements in room lighting, Amico has made it easy to operate each function of single or multiple light fixtures with one intuitive keypad. Incorporated in a single gang space, the LightMaster keypad can control the Reading, Ambient, Direct Light and Spot Lights that may be in the room. With infection control in mind, Amico uses a Mylar Overlay on each keypad for ease of cleaning. The LightMaster keypad is also designed as a low voltage device to ensure the highest levels of safety are met.

  • Input Voltage: 120V / 277V, 50/60 Hz

  • Output Voltage: 120V / 277V, 50/60 Hz

  • Maximum Load: 1.5 Amps Resistive, 1.2 Amps Ballast at 120V; 0.65 Amps Resistive, 0.6 Amps Ballast at 277V

  • Low Voltage Circuit: 5 VDC, 150 mA

  • Operating Temperature: 32 - 176 ˚F (0 - 80˚C)

  • Master Control Dimensions: L 5" x W 2" x H 1" (12.7 cm x 5.08 cm x 2.54 cm)

  • Keypad Dimensions: Single Gang

General Features

  • The LightMaster switching system comes complete with a master control unit and two keypads

  • The master control unit is a programmed interface device capable of individual controls of up to five circuit loads

  • Each keypad can control up to five light functions within one or multiple light fixtures

  • Ability to communicate between three keypads and a pillow speaker

  • LED indicators on keypads in all locations illuminate to show you which light is being used

Key Features of the Keypad

  • Controls up to five light functions in the room

  • LED indicators identify which light function is in use

  • Keypads are low voltage for user safety

  • Compact design fits into a single gang opening

  • Mylar overlay for ease of cleaning and infection control

  • Compatible with all manufactured nurse call products

  • 5 year warranty

Key Features of the Master Controller

  • Capable of individual control of up to five circuit loads

  • Universal input voltage of 120V – 277V

  • Terminal blocks allow for ease of connection

  • Compact design fits inside most light fixtures
