AHM Monitor Arms (Adjustable Height)

Patient Monitor Mounts

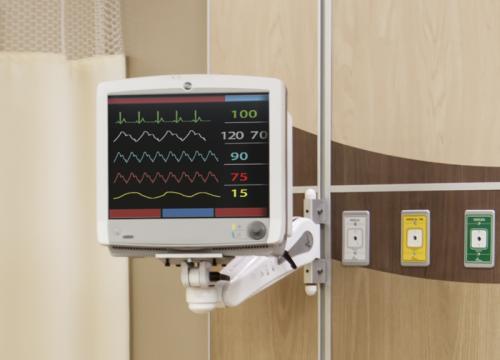

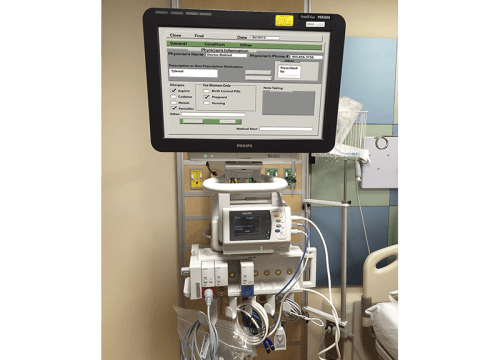

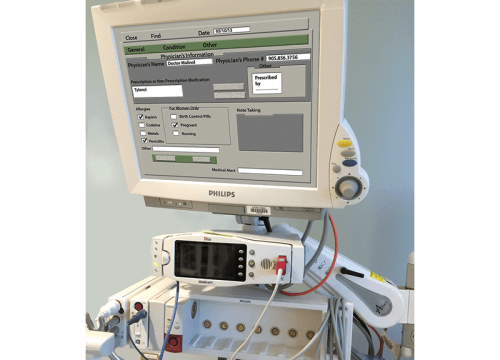

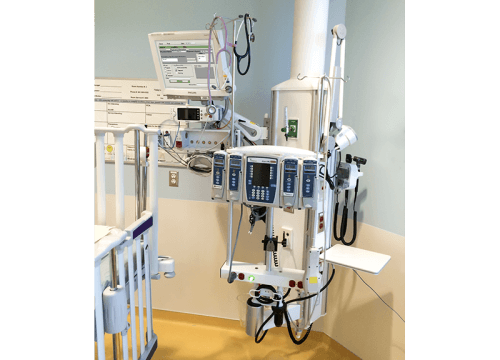

Our AHM (Adjustable Height) Monitor Arms feature 120° of height adjustability and 180° side to side motion so that you can easily adjust the position of your attached monitor. The Adjustable Height Monitor Arms can also be locked in any position to maintain the desired height adjustment. The AHM can be mounted directly to any equipment rail or wall channel. Integrated cable management allows you to tuck away cords so that they move with the AHM.

OSHPD Approval: OPM-0271-13

AHM

  • 18" - 34" (45.7 cm - 86.3 cm) reach
  • 40 lbs (18.1 kg) arm rating
  • 30° tilt limit - on specific models
  • 17" (43.2 cm) of height adjustment
  • 0 - 40 lb (0 - 18.1 kg) counterbalance adjustment range

General Features:

  • Can be mounted directly to any equipment rail or wall channel
  • Parallel linkage provides consistent viewing angle at any position
  • Color options available (white is standard)
  • Easy to reposition and lock in place
  • Easy to change monitors

  • 180° side to side motion

  • Lock Arm in any position





  • Durable, aluminum body

  • Quick pin release for single hand monitor removal





  • Integrated Cable Management

  • Handle for easy tilt adjustment

Channel Mount Options

Channel to Wall

Channel to Wall

  • Channel mounts directly to the wall





Channel to Power Column

Channel to Power Column

  • AHM mounts directly to existing monitor channel on power column or flatwall





Channel to Headwall

Channel to Headwall

  • Channel mounts directly to existing rail on headwall
  • Channel can be mounted anywhere along length of headwall





MRS Channel to Equipment Rail

MRS Channel to Equipment Rail

  • Channel mounts directly to equipment rails
  • Channel can be mounted anywhere along length of rail





Direct Rail Mount Options

Direct to Power Column

Direct to Power Column

  • Mounts directly to existing vertical rail on power column or flatwall





Direct to Headwall

Direct to Headwall

  • Mounts directly to existing horizontal rail on headwall





Direct to Boom

Direct to Boom

  • Mounts directly on to boom system





Arm Extensions

6" (15.2 cm) Arm Extension6" (15.2 cm) Arm Extension

  • 24" (61 cm) reach

Part Number: AHM-7FX





9" (22.9 cm) Arm Extension

9" (22.9 cm) Arm Extension

  • 27" (68.6cm) reach

Part Number: AHM-3FX





12" (30.5 cm) Arm Extension12" (30.5 cm) Arm Extension

  • 30" (76.2 cm) reach

Part Number: AHM-1FX





16" (40.6 cm) Arm Extension

16" (40.6 cm) Arm Extension

  • 34" (86.3 cm) reach

Part Number: AHM-5FX





CPU Mounts

1.5" x 3"

1.5" - 3" (3.81 cm - 7.62 cm)

Part Number: CPUMNT1-MON







CPUMNTA-MON

1.5" - 7" (3.81 cm - 17.78 cm)

Part Number: CPUMNTA-MON

7" x 9.5" (17.8 cm x 24.1 cm)

7" - 9.5" (17.78 cm - 24.13 cm)

Part Number: CPUMNT4-MON

Storage Baskets

10" x 10" x 4"

10" x 10" x 4"

(25.4 cm x 25.4 cm x 10.2 cm)

  • White wire basket
  • All baskets can be sterilized

Part Number: 101004-MON-BB





10" x 6" x 9"

10" x 6" x 9"

(25.4 cm x 15.2 cm x 22.9 cm)

  • White wire basket
  • All baskets can be sterilized

Part Number: 100609-MON-BB





13" x 9" x 7"

13" x 9" x 7"

(33 cm x 22.9 cm x 17.8 cm)

  • White wire basket
  • All baskets can be sterilized

Part Number: 130907-MON-BB





13" x 9" x 7"

13" x 9" x 7"

(33 cm x 22.9 cm x 17.8 cm)

  • BP cuff basket
  • All baskets can be sterilized

Part Number: CUFBASK-MON





Accessories

Power Bar

Power Bar

  • Hospital grade, 4 power outlets
  • 120 VAC, 60Hz

Part Number: POWERBAR4-MON





Power Holder

Power Holder

  • Holds most power adapters for PCs, patient monitors and LCDs

Part Number: PWRHLD-MON





Cord Hooks

Cord Hooks

  • Manage cables, cords and other hanging wires
  • Attach to the bottom of any monitor arm or below/in between a downpost on a monitor arm

Part Number (2 hooks): CRDHLDR
Part Number (4 hooks): CRDHLDR2





Barcode Scanner Holder

Barcode Scanner Holder

  • Universal barcode scanner holder

Call for part number





Barcode Dock Mount

Barcode Dock Mount

  • Accommodates a variety of barcode scanner bases and has been tested with a wide variety of charging bases

Part Numbers: BARCDHLD2-(X) and BARCDHLD2-LCD





LCD Handle

LCD Handle

  • Ergonomic handles can be added to any Amico LCD mount
  • Knuckle guard protects walls and user's hands

Part Number: MON-LCD-HANDLE





Cord Wrap

Cord Wrap

  • Ideal for managing wires and cords

Part Number: CORDWRAP





Monitor Channel

Monitor Channel

  • Standard wall channel 19" (48.3 cm)
  • Seismic options are available and custom lengths are welcome

Part Number: MRS-019





Channel Covers

Channel Covers

  • Easy way to hide wires
  • Available in patterns and colors to match any decor

Call for part number





Monitor Handle

Monitor Handle

  • Easy grab handle

Part Number: AHM-HAND-00
