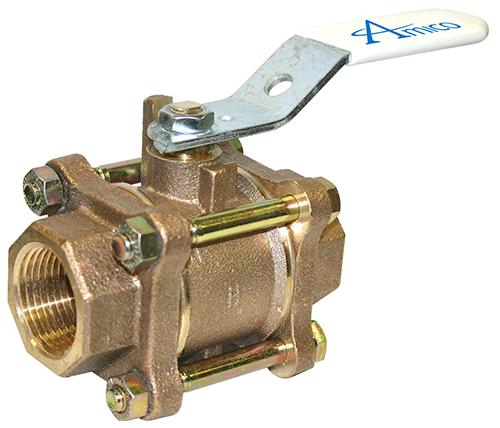

Threaded Ball-Valve

Isolation Valves

The Valve is a 3-piece ball-type design with a bronze body and chrome plated brass ball for sizes 1/2" to 2". Valves are operated by a lever-type handle requiring only a quarter turn from a fully open position to a fully closed position. Valves are designed such that they cannot be "swung-out" during installation so as to prevent damage due to heat transfer during the brazing operation.

General Features

  • 3 piece design for ease of maintenance
  • 100% Hydrostatic tested
  • Cleaned for medical gas service
  • Blow-out proof stem
  • Available in sizes 1/2" to 2"
  • Full-Port design
  • Available in locking or non-locking
Spec Sheets
Filename Size Type
ape_sp_threaded_ball_vlv.pdf 422.4 KB PDF Download

Isolation Valves

Manual
Filename Size Type
ape_instal_maint_valves_and_boxes.pdf 593.7 KB PDF Download

Valves

Brochure
Filename Size Type
ape_br_pipeline_brochure_lr.pdf 2.4 MB PDF Download

Medical Gas Pipeline

Medical Gas Design Guide for NFPA
Filename Size Type
ape_as_sp.pdf 734.6 KB PDF Download
