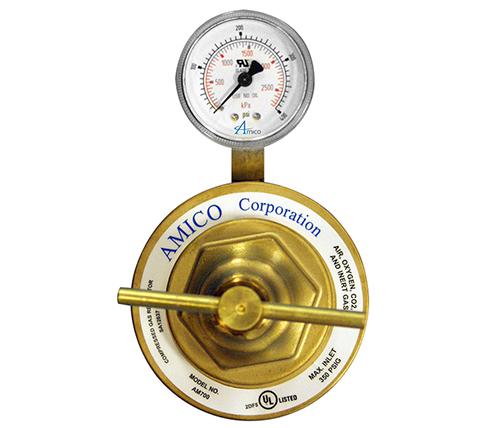

High Flow Regulator

AM 700

The Amico AM 700 Series High Flow Regulator shall be for a line supply, of a single stage and extra heavy duty type.

  • Design Construction: Forged brass body and housing cap, 2-1/2" brass gauge, Stem type seat mechanism, 3-1/4" diaphragm, Delrin cap bushing for smooth adjustments
  • Performance: Maximum Inlet - 350 PSIG, Delivery Range - 10 to 200 PSIG, Flow - see flow chart
  • Specifications and Materials: Weight - 5 lbs. 2 oz. (2.5 kg), Body - Forged Brass, Diaphragm - Neoprene, Housing Cap - Forged Brass

High Flow Regulator Chart

General Features

  • The Amico AM 700 Series High Flow Regulator shall be for a line supply, of a single stage and extra heavy duty type
  • Application and Uses: High capacity gas service, Designed for gas distribution systems, Available with 1/2" NPT(F) or 3/4" NPT(F), Inlet pressure up to 350 PSIG
