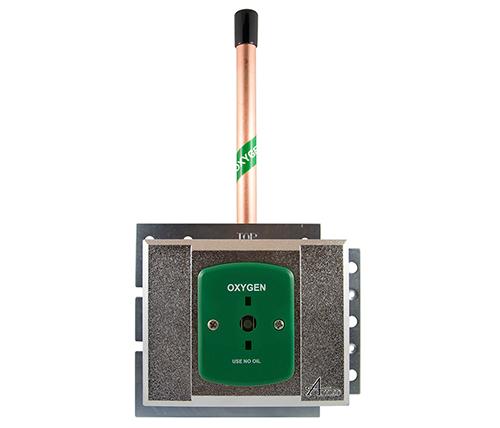

Ohmeda Compatible Compact Wall Outlet

Wall Outlets

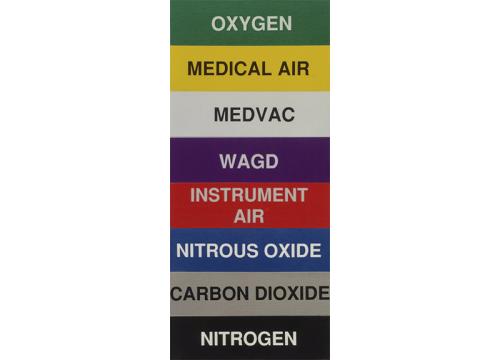

The Amico compact wall outlet provides worry free and dependable service. Aesthetically pleasing in any patient room, this Ohmeda connection Amico gas outlet provides a full color fascia for easy gas identification during those critical moments. Amico’s compact wall outlet exceed flow rate requirements set by NFPA. All compact wall outlets are 100% cleaned and tested in order to ensure quality and are backed by our industry leading 5 year warranty. We also have other configurations available to match your requirements.

General Features

  • Flow rate exceeds the requirements of NFPA and CSA
  • Accepts only Ohmeda Diamond™ gas specific adapters
  • 100% pressure testing of each outlet and cleaned for medical gas service
  • Indexed to eliminate interchangeability of gas services
  • Up to 3/4" (19 mm) mounting plate thickness adjustment
  • 360° swivel inlet pipe for easy installation
  • Universal rough-in assembly to accept Quick Disconnects or DISS front adapters (can be interchanged at any time)
Spec Sheets
Filename Size Type
ape_sp_ohm_comp_wall_outlt.pdf 425.8 KB PDF Download
Manual
Filename Size Type
ape_instal_maint_compact_outlets.pdf 1.1 MB PDF Download

Wall Outlets

Ordering Guides
Filename Size Type
ape_ss_outlet_styles.pdf 1.2 MB PDF Download

Outlets

Brochure
Filename Size Type
ape_br_pipeline_brochure_lr.pdf 2.4 MB PDF Download

Medical Gas Pipeline

Medical Gas Design Guide for NFPA
Filename Size Type
ape_as_sp.pdf 734.6 KB PDF Download
