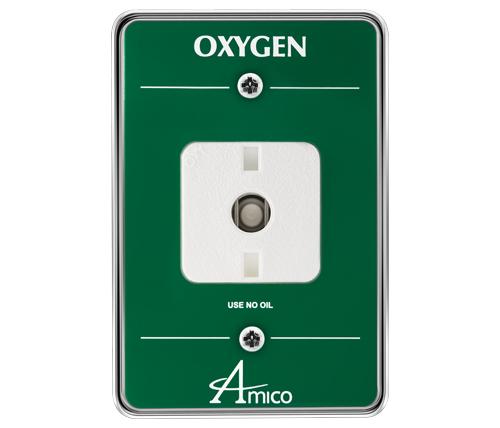

Ohmeda Compatible Console Outlet

Ohmeda Diamond Compatible

The Amico outlet continues to provide worry free and dependable service. Aesthetically pleasing in any patient room, this Ohmeda connection Amico gas outlet provides a full color fascia for easy gas identification during those “critical” moments. Amico’s outlets exceed flow rate requirements set by NFPA/CSA. All outlets are 100% cleaned and tested in order to ensure quality and are backed by our industry leading 5 year Warranty. We also have other configurations available to match your requirements.

General Features

  • Flow rate exceeds the requirements of NFPA and CSA
  • Accepts only Ohmeda gas specific adapters
  • 100% Pressure testing of each outlet and cleaned for medical gas service
  • Indexed to eliminate interchangeability of gas services
  • Up to 3/4" [19mm] mounting plate thickness adjustment
  • 360° Swivel Inlet Pipe for easy installation
  • Universal Rough-In Assembly to accept Quick Disconnects or DISS front adapters (Can be interchanged at any time)
  • Outlets are also available for M.R.I. use
Spec Sheets
Filename Size Type
ape_sp_qd_cons_outlt.pdf 384.9 KB PDF Download
Drawings
Filename Size Type
ape_dr_ohm_cons_outlt.rvt 2.5 MB RVT Download
ape_dr_ohm_cons_outlt.dwg 135.5 KB DWG Download
ape_dr_ohm_cons_outlt.pdf 63.3 KB PDF Download
Manual
Filename Size Type
ape_instal_maint_medgas_outlets_hr.pdf 1.3 MB PDF Download

Console Outlets

Ordering Guides
Filename Size Type
ape_ss_outlet_styles.pdf 1.2 MB PDF Download

Outlets

Brochure
Filename Size Type
ape_br_pipeline_brochure_lr.pdf 2.4 MB PDF Download

Medical Gas Pipeline

Medical Gas Design Guide for NFPA
Filename Size Type
ape_as_sp.pdf 734.6 KB PDF Download
