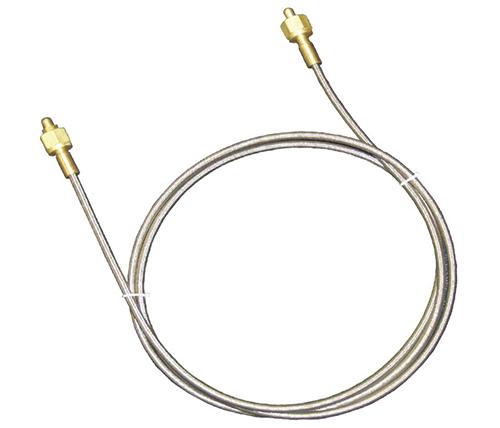

High Pressure Stainless Steel Pigtails

The Amico stainless steel pigtails shall have a core which consists of Teflon (polytetrafluoroethylene) with two outer reinforcing jackets of stainless steel braid. The braid will incorporate a type 304 full hard drawn stainless steel wire. It shall consist of a 1/4" nominal I.D. The Amico stainless steel pigtails shall come with a check valve equipped to one of the ends.

Specifications

  • The Amico stainless steel pigtails shall have a core which consists of teflon (polytetrafluoroethylene) with two outer reinforcing jackets of stainless steel braid. The braid will incorporate a type 304 full hard drawn stainless steel wire. It shall consist of a 1/4" nominal I.D. The Amico stainless steel pigtails shall come with a check valve equipped to one of the ends.
  • Note: Burst pressure ratings for pigtails are determined at room temperature with the hose in a straight line. A safety factor of 4:1 or 5:1 should be used for normal applications. Impulse and shock pressure applications may require a higher safety factor.
  • Note: Do not apply heat to pigtails.
  • All cylinder connections machined to CGA specifications for applicable gases.

General Features

  • Burst pressure rating at room temperature: 12,000 psig
  • Maximum 3000 psig working pressure on tubing
  • All pigtails 100% tested before shipping and labelled for gas service and pressure rating
  • Standard length 36" (3'), length is customizable
  • Includes a sticker that indicates the direction of the flow
