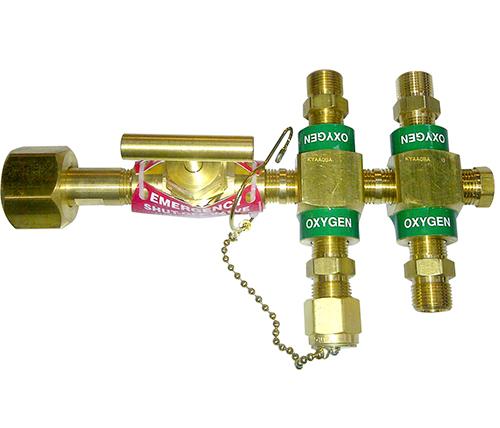

Custom Header Bars

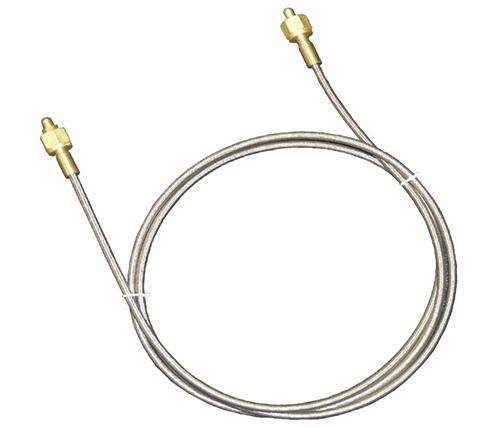

Amico’s Custom Header Bars are designed to save room space and installation time. Amico also offers header bar extension fittings for future cylinder expansion. Our header bars are oxygen cleaned to include brass shut-off valves for high/low and liquid pressure gases. Configurations include Staggered, Straight, L-Shaped, U-Shaped and Vertical Cross Overs. Pigtails are available in standard size of 36" Copper and Stainless Steel. Custom pigtail lengths are also available. Layout drawings are available upon request.

Features

  • CGA gas specific header bar with an option to add integral check valves and cylinder pigtail assemblies for future expansion. Fittings are sold separately.
Spec Sheets
Filename Size Type
al_sp_header_bars.pdf 604.1 KB PDF Download
Drawings
Filename Size Type
al_dwg_custom-header-bars-6x6manifold-staggered.pdf 63.5 KB PDF Download
al_dwg_custom-header-bars-6x6nfpa-staggered.pdf 75.8 KB PDF Download
al_dwg_custom-header-bars-co2-staggered.pdf 67.6 KB PDF Download
al_dwg_custom-header-bars-dome-loaded-staggered.pdf 50.8 KB PDF Download
al_dwg_custom-header-bars-simplex-staggered.pdf 74.6 KB PDF Download
al_dwg_custom-header-bars-simplex-staggered2.pdf 52.0 KB PDF Download
al_dwg_custom-header-bars-simplex-straight.pdf 49.9 KB PDF Download

Manifolds

Brochure
Filename Size Type
ape_br_pipeline_brochure_lr.pdf 2.4 MB PDF Download

Medical Gas Pipeline

Medical Gas Design Guide for NFPA
Filename Size Type
ape_as_sp.pdf 734.6 KB PDF Download
