Compact Gas Control Panel

Control Panel

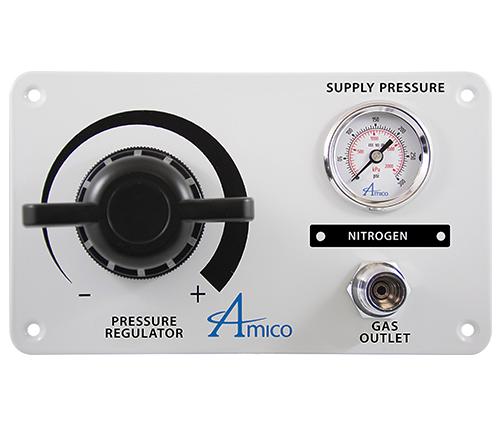

The Compact Gas Control Panel shall be an Amico Alert-2 series and shall consist of a carbon steel coated plate, pressure regulator, inlet pressure indicator, DISS outlet adapter, gas specific lamacoid and internal copper tubing sizes 1/8" (3.175 mm) and 1/4" (6.35 mm).

The Diameter Index Safety System (DISS) service outlet shall be for medical gases Carbon Dioxide, Instrument Air or Nitrogen. The outlets shall be used for connection to pneumatic surgical tools.

General Features

  • Inlet pressure display gauge in psi/kPa
  • 1/4" (6.35 mm) internal tubing for high flow
  • High flow capacity regulator
  • Maximum supply pressure: 250 psi (1,724 kPa)
  • DISS maximum delivery of pressure:
    • Laboratory Air = 80 psi (551 kPa)
    • Carbon Dioxide = 80 psi (551 kPa)
    • Instrument Air = 200 psi (1,379 kPa)
    • Nitrogen = 200 psi (1,379 kPa)
