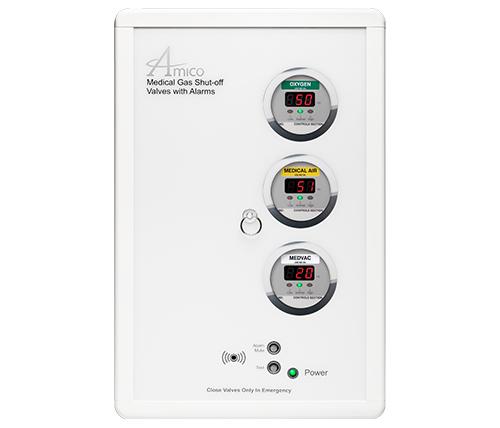

Alarm Valve Combo Unit

Combination Alarms

With this product’s highly innovative 2 in 1 design, we have combined our first-class Area Alarm with our Valve Box, in one affordable package. The ability to install sensors directly inside the Valve Box eliminates the need for prolonged, complex maintenance, as well as the search for absent sensors. Amico’s Alarm Valve Box Combination Unit is built to offer users years of proficient service. Previous concerns regarding convenience, space, maintenance and accessibility become uncertainties of the past, with the ground-breaking Alarm Valve Combo Unit.

  • 2 in 1 design combines the Area Alarm and Zone Valve Box to compensate for space restrictions

  • True digital, illuminated LED display is readable even in poor lighting conditions

  • High/low alarm set-points are field adjustable for each gas service

  • Repeat alarm is adjustable from 1 to 60 minutes or off

  • Gas-specific sensor with DISS nut and nipple

  • Alarm buzzer in excess of 90 decibels

  • Each module is marked with an approved medical gas identification label

  • Pre-mounted pull-out ring allows for ease of maintenance

  • Individual microprocessor for each display and sensor module; digital sensor is mounted locally

  • Dry contacts for remote monitoring of the high and low alarm

Spec Sheets
Filename Size Type
ape_sp_alarm_vlv_combo_unit.pdf 332.1 KB PDF Download
Manual
Filename Size Type
ape_instal_maint_alarm_valve_combo.pdf 3.8 MB PDF Download
Drawings
Filename Size Type
ape_dr_alarm_valve_combo.rvt 3.0 MB RVT Download
ape_dr_alarm_valve_combo.dwg 157.4 KB DWG Download
ape_dr_alarm_valve_combo.pdf 61.3 KB PDF Download

Alarm Systems

Brochure
Filename Size Type
ape_br_pipeline_brochure_lr.pdf 2.4 MB PDF Download

Medical Gas Pipeline

Medical Gas Design Guide for NFPA
Filename Size Type
ape_as_sp.pdf 734.6 KB PDF Download
