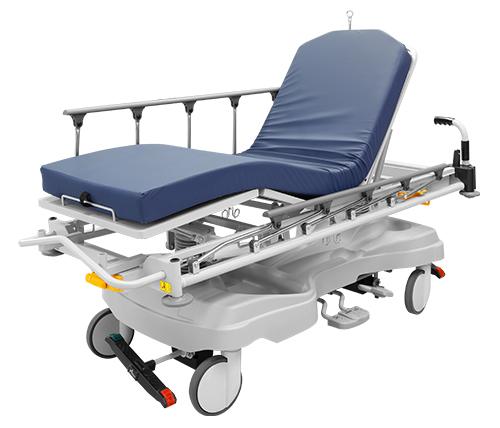

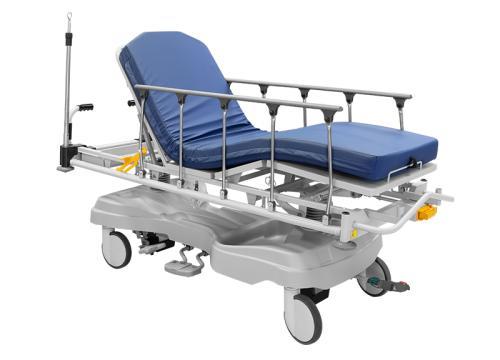

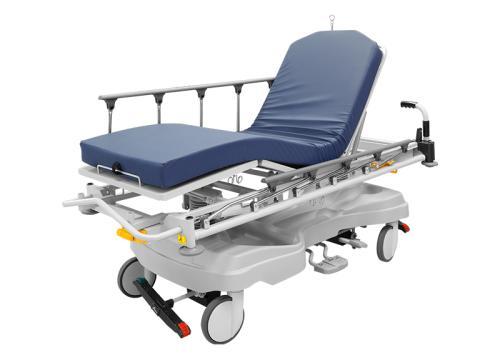

Titan Transport Stretcher

The Amico Titan Transport Stretcher uses an innovative design and incorporates distinctive features aimed to help caregivers provide a more meaningful level of care to patients.

This product is specifically designed to meet the needs of customers by offering key characteristics such as a dual brake system, deep well storage area in the base and an ergonomic design to help improve efficiency of healthcare. With the heightened awareness regarding fall prevention, Amico is proud to offer a Transport Stretcher that is the best-in-class low height stretcher in the market.

Key Features

  • 550 lbs (250 kg) weight capacity
  • Standard fifth wheel for improved mobility
  • 21" (53 cm) low height
  • Storage area in base for two oxygen E-cylinder tanks and belongings
  • Radiolucent fowler section
  • Dual brake pedal mechanisms
  • Adjustable knee gatch for enhanced comfort
  • Fold-down siderails
  • 8" (20 cm) wheel casters
  • Pressure relief surfaces

Standard Features

  • Four IV pole holders
  • Roller bumpers
  • Adjustable fowler section
  • Fifth wheel steering
  • Fold-down siderails
  • 8" (20 cm) wheel casters
  • Hydraulic lift system
  • Central brake locking system
  • Ergonomic push handles
  • Side bumpers
  • Head and foot-end mattress retainer
  • Integrated foot push handle

Improved Mobility

  • Fifth Wheel Steering

Optional Features & Accessories

  • 4"/5" (10 cm/12.7 cm) high-density foam mattress with or without fire barrier
  • Foley bag holder
  • Utility tray
  • Overbed tables
  • Permanent IV pole

Model Number & Approval

  • Model Number: S-AM1-3000
  • Agency Approval: cULus

Overall Dimensions

  • Overall Length: 84.5" (214 cm)
  • Overall Width: 33" (84 cm)

Litter Positioning

  • Trendelenburg/Reverse Trendelenburg: 17°
  • Maximum Fowler Section Inclination: 80°
  • Maximum Knee Section Inclination: 35°

Height Range

  • Lowest: 21" (53 cm)
  • Highest: 33" (84 cm)

Surface Dimensions

  • Surface Width: 25" (63.5 cm)
  • Surface Length: 75" (191 cm)
  • Surface Thickness: 4" (10 cm)

Weight Capacity & Caster Dimension

  • Maximum Weight Limit: 550 lbs (250 kg)
  • Caster Diameter: 8" (20 cm)

Side Bumper Colors

Silver Sky

Silver Sky

Slate Metal

Slate Metal

Absolute Red

Absolute Red

Black

Black

Cypress Pearl

Cypress Pearl

White

White
