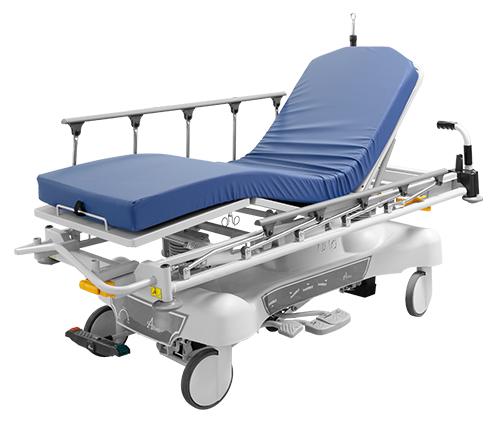

Hydraulic Patient Transfer Stretcher

International Series

The Amico Hydraulic Patient Transfer Stretcher (S-H-300) provides caregivers the control they need in the emergency environment. The stretchers can be adjusted to various positions – raising, lowering, trendelenburg, and reverse trendelenburg – by actuating the hydraulic pistons. The back section is adjustable through the use of gas springs and the knee gatch can be raised and lowered with an optional manual crank.

The stretcher is made of carbon steel and painted by an electrostatic spray (powder-coat). The base cover is made from injectionmolded ABS plastic and the locking siderails are made from a combination of steel, aluminum extrusion and plastic parts for increased durability and to facilitate easy cleaning. The back section includes an X-Ray-compatible board.

The stretcher comes complete with an IV pole, bumper wheels and actuator dust covers to protect the hydraulic actuators.

Key Features

  • Centrally controlled brake system
  • Collapsible siderails
  • Dual side foot pedals
  • Retractable fifth wheel steering system
  • X-Ray compatible backrest
  • Shock absorbing, non-marking bumpers
  • Foley bag holder
  • 4" (10 cm) mattress included
  • Ergonomic push handles
  • Storage area in base for oxygen E-cylinder tank
  • Storage tray for patient belongings
  • Permanent IV Pole

Optional Features & Accessories

  • Utility Tray
  • Four Sided Brake
  • Footboard
  • Overbed tables
  • Removable IV Pole

Model Number & Approval

  • Model Number: S-H-300

Overall Dimensions

  • Overall Length: 84.5" (214 cm)
  • Overall Width: 33" (84 cm)

Litter Positioning

  • Trendelenburg/Reverse Trendelenburg: 16°
  • Maximum Fowler Section Inclination: 80° ± 5
  • Maximum Knee Section Inclination: 35° ± 5

Height Range

  • Lowest: 23" (58 cm)
  • Highest: 35" (89 cm)

Surface Dimensions

  • Surface Width: 25" (64 cm)
  • Surface Length: 75" (191 cm)
  • Surface Thickness: 4" (10 cm)

Weight Capacity & Caster Dimension

  • Maximum Weight Limit: 550 lbs (250 kg)
  • Caster Diameter: 8" (20 cm)
