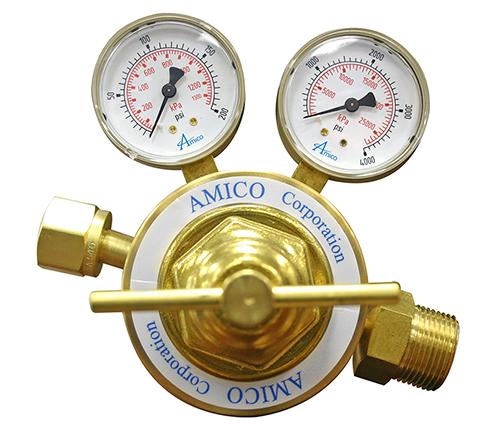

AM 450 High Pressure Regulator

The Amico AM 450 Series Regulator shall be for a line supply, of a single stage and heavy duty type.

Specifications

  • Performance: Maximum Inlet - 3000 PSIG, Maximum Delivery Range - 200 PSIG, Flow - See charts
  • Specifications and Materials: Dimensions - 7-1/4" W x 7" H x 5-1/8" D (18.6 cm x 17.9 cm x 13.1 cm), Weight - 5 lb. 2 oz. (2.5 kg), Body - Forged Brass, Diaphragm - Stainless Steel, Housing Cap - Forged Brass, Inlet filter - Bronze

AM450 High Pressure Regulator Chart

General Features

  • The Amico AM 450 Series Regulator shall be for a line supply, of a single stage and heavy duty type
  • Application and Uses: Medium to high capacity, Ideal for industrial and commercial applications, Compact single stage construction
  • Design Construction: Forged brass body & housing cap, 2" gauges, Stem type seat mechanism, 1-3/4" stainless steel diaphragm, External self reseating relief valve, Sintered inlet filter
Spec Sheets
Filename Size Type
al_sp_am450_hp_reg.pdf 500.6 KB PDF Download
