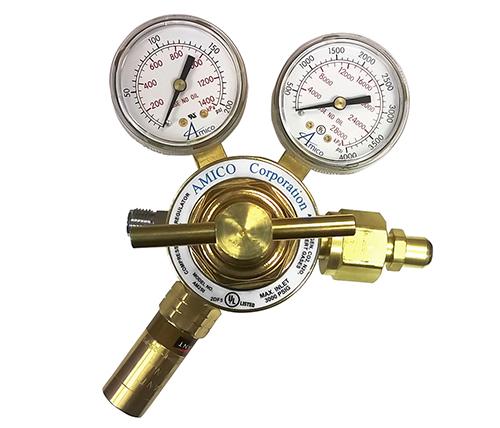

AM 250 High Pressure Regulator

The Amico AM 250 Series Regulator shall be for a line supply of a single stage and medium to high duty type.

Specifications

  • Design Construction: Forged brass body and housing cap, 2" gauges, Stem type seat mechanism, External self reseating relief valve, Sintered inlet filter
  • Performance: Maximum Inlet - 3000 PSIG Maximum Delivery Range - 350 PSIG Flow - See charts
  • Specifications and Materials: Dimensions - 6-3/8" W x 5-1/8" H x 4-1/4" D (16.5 cm x 13 cm x 11 cm), Weight - 2 lb. 15 oz. (1.4 kg), Body - Forged Brass, Diaphragm - Fabric Reinforced Neoprene, Housing Cap - Forged Brass, Inlet filter - Bronze

AM250 High Pressure Regulator Chart

General Features

  • The Amico AM 250 Series Regulator shall be for a line supply, of a single stage and medium duty type.
  • Application and Uses: Medium to high duty capacity Ideal for welding and cutting applications Compact, single stage construction
Spec Sheets
Filename Size Type
ape_sp_am250_reg.pdf 561.8 KB PDF Download
Manual
Filename Size Type
ape_oper_maint_am250_regulator.pdf 635.2 KB PDF Download
