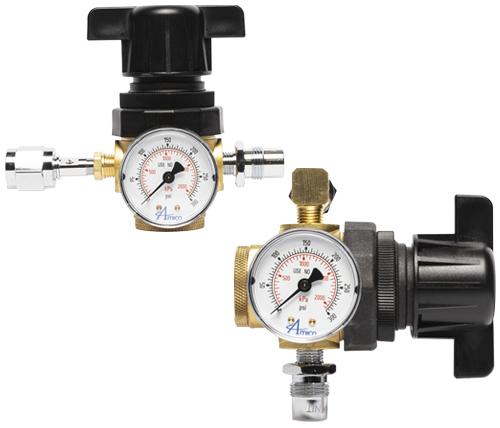

General Purpose Regulator Assembly

The Amico Regulator Assembly shall provide medical gas delivery pressure control to surgical tools or apparatus. The regulator body shall be made of zinc die cast. The fittings shall be made of chrome-plated brass. Amico’s Regulator Assembly is cleaned for medical gas service.

Specifications

  • The Amico Regulator Assembly shall provide medical gas delivery pressure control to surgical tools or apparatus
  • The regulator body shall be made of zinc die cast. The fittings shall be made of chrome-plated brass
  • This assembly can be used in combination with Gas Control Panels or DISS Wall or Ceiling Outlets
  • Amico's Regulator Assembly is cleaned for medical gas service

  • Gauge Port (2): 1/4"
  • Port Threads: 1/4", 1/2"
  • Temperature Rating: 40°F to 125°F (4.4°C to 52°C)
  • Weight: 1.3 lbs. (0.59 kg) / unit
  • High Flow: 1/4" - 80 SCFM 1/2" - 100 SCFM
  • Adjusting Knob: Acetal
  • Body: Zinc
  • Bottom Plug: Brass
  • Elastomers: Buna N
  • Spring Case: Acetal

  • Contains a self-relieving-type pressure regulator with a 10 to 250 psig
  • Control knob assists in regulator adjustment
  • 1-1/2" diameter, 0 to 300 psig pressure gauge
  • Provided with an outlet connection valve
